A good electric underfloor heating system is more than a heating mat installed beneath the floor. Its comfort, reliability and ease of use depend on how well the entire system is designed, selected, installed and controlled.

Whether you are planning electric floor heating for a bathroom, apartment, house or renovation project, there are five important parts to consider.

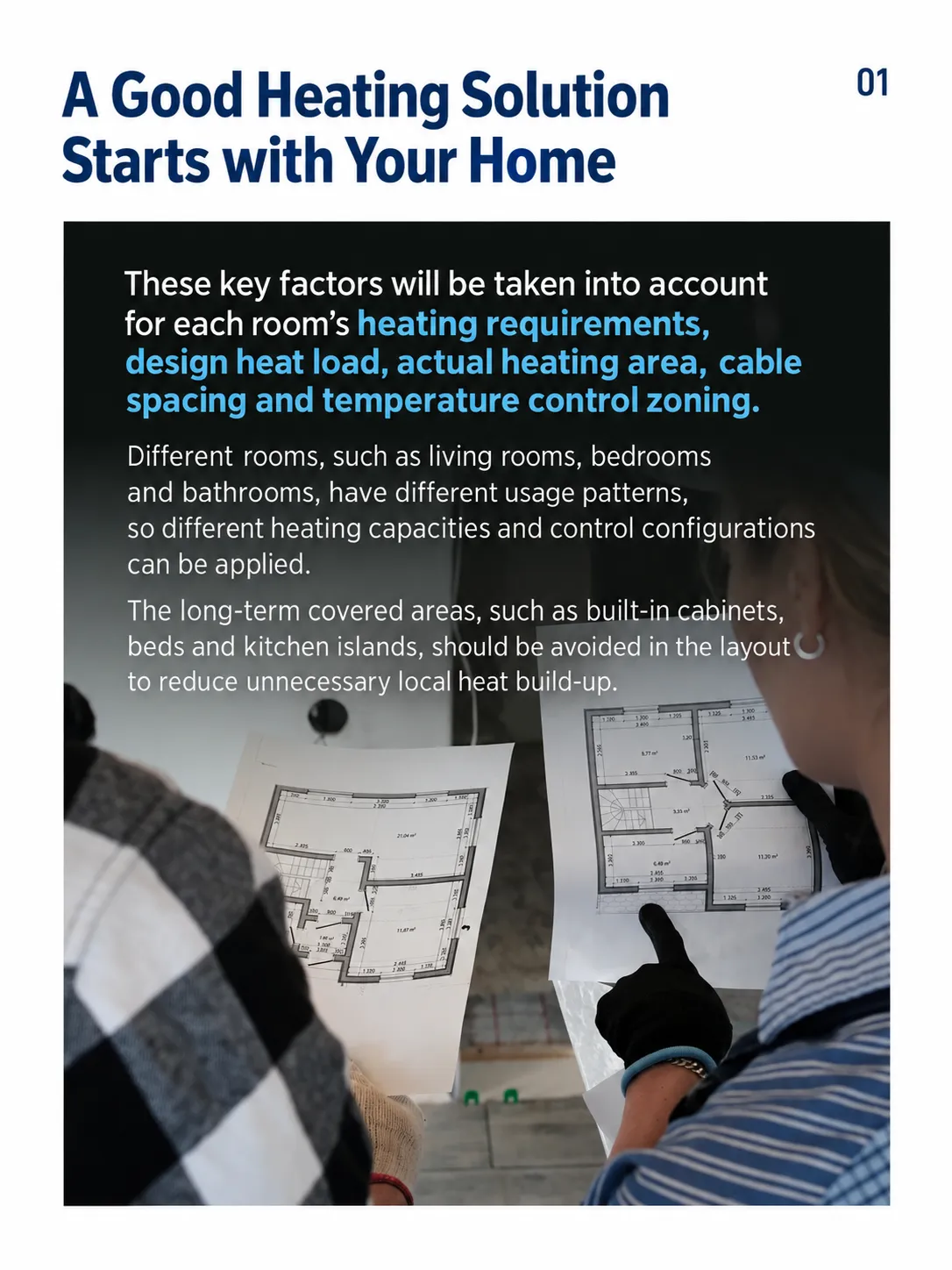

1. A Heating Plan Matched to the Room

Good floor heating starts before the heating element is installed. The system should be planned around the actual room rather than simply selecting a heating product based on total floor area.

Important factors include the building's heat demand, insulation level, windows and external walls, room usage, furniture layout and actual available heating area. A bathroom, bedroom and living room may require different heating capacities and operating schedules.

Fixed furniture and permanently covered areas should also be considered when defining the heated area. From there, the designer can determine the appropriate heating output, layout and temperature-control zones.

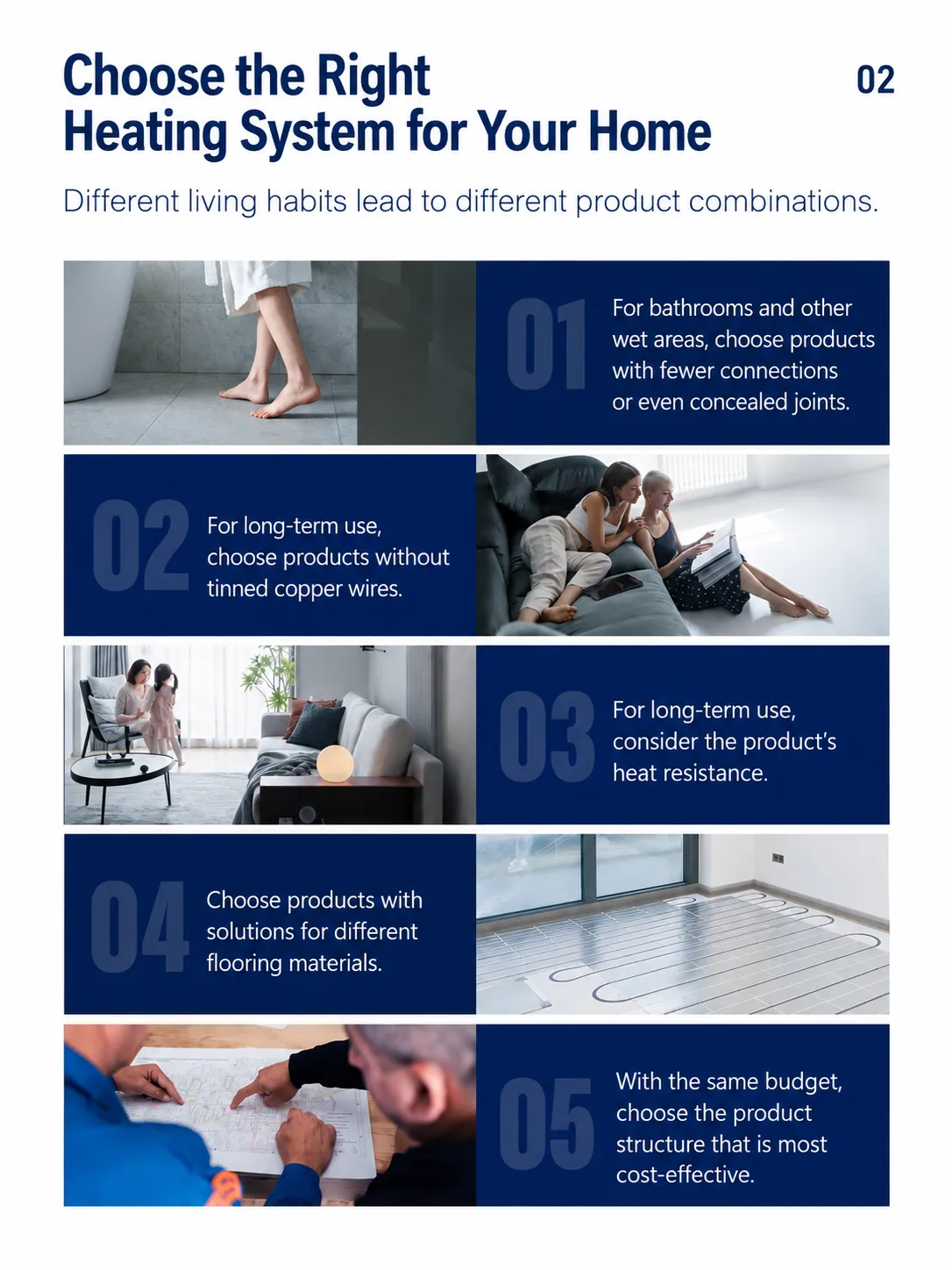

2. A Reliable Heating System

The heating element is the core of an electric underfloor heating system, but rated wattage alone does not determine product quality.

Buyers and project designers should also evaluate the complete construction of the heating element, including the heating conductor, insulation layers, shielding and grounding, joints, outer protection and the way the product is manufactured.

The floor finish matters as well. Tile, stone, laminate and other floor coverings have different installation requirements, so the heating product and installation method should be selected for the intended floor construction.

MENRED offers electric underfloor heating solutions for residential and project applications.

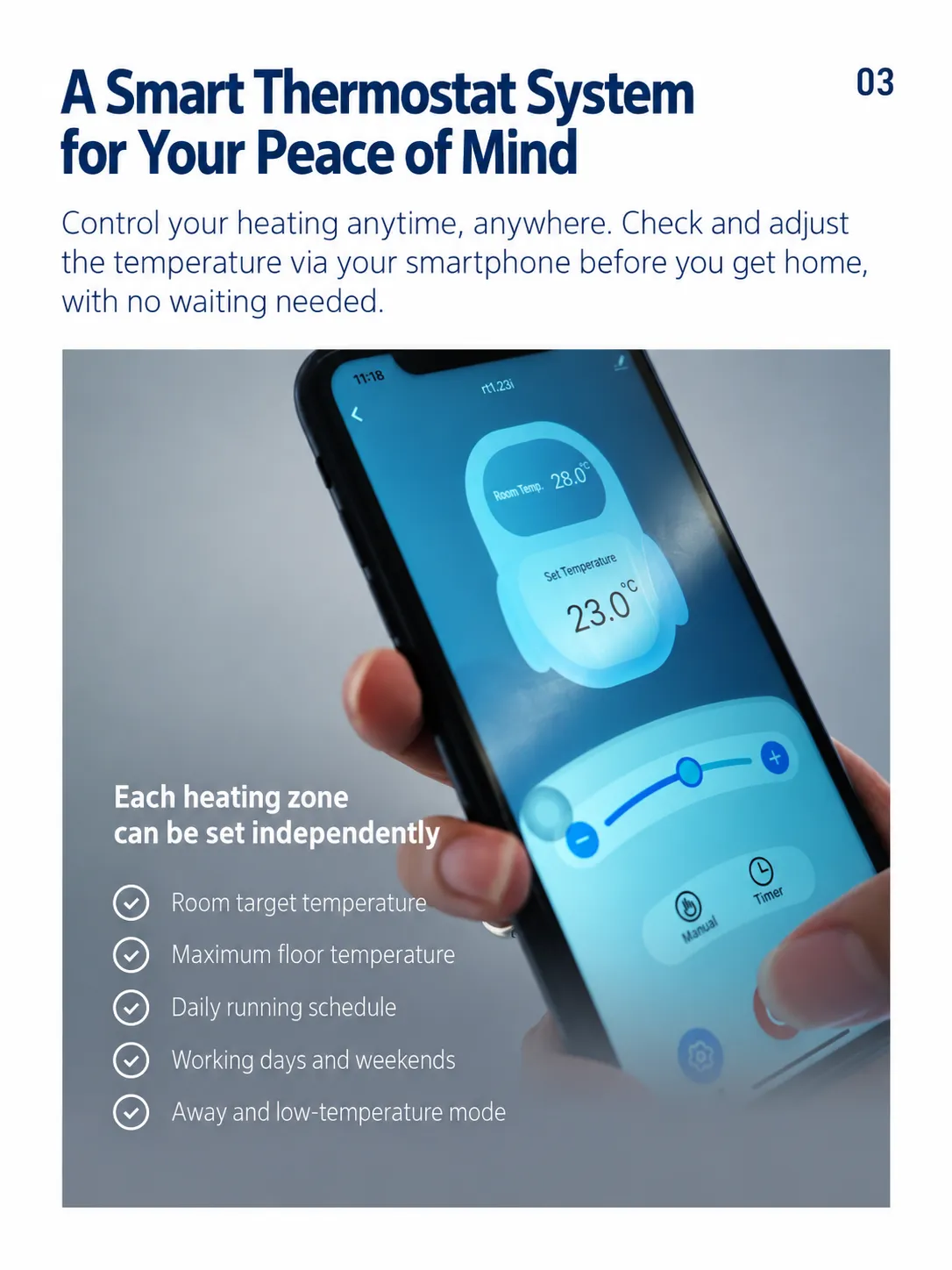

3. Room and Floor Temperature Control

Heating performance is only one part of comfort. The system also needs appropriate temperature control.

A thermostat can use room-temperature sensing together with a floor sensor to manage the heating zone. Depending on the thermostat and system configuration, users can set room temperature, floor-temperature limits and operating schedules for different periods of the day.

Each heating zone can be controlled according to how the room is actually used. With a compatible smart thermostat, functions such as scheduling and remote smartphone control can also be added.

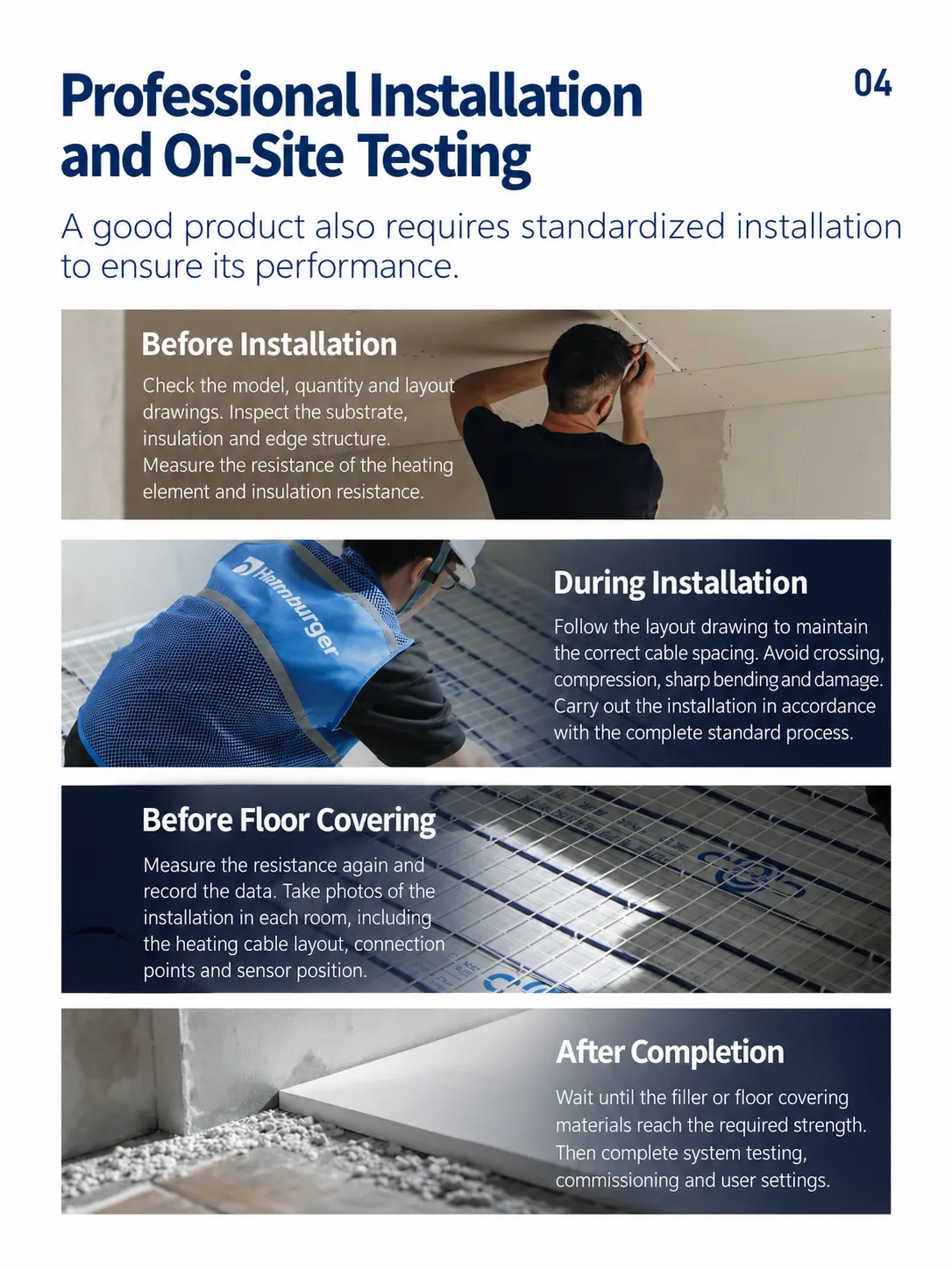

4. Professional Installation and Testing

Even a well-designed heating product can be compromised by poor installation. Electric underfloor heating should therefore be installed according to the system instructions and applicable local electrical requirements.

Before installation, the installer should confirm the product model, quantity and layout and inspect the installation area. The heating element should also be electrically checked before it is covered.

During installation, the specified cable spacing and layout should be maintained while avoiding crossing, excessive bending, compression or accidental damage.

Before the heating system is concealed by the final floor construction, resistance and insulation checks should be carried out again. Keeping measurement records and installation photos provides useful documentation for commissioning and future service.

5. Documentation, Warranty and After-Sales Support

A complete heating project should not end when the floor is finished.

Product information, installation records, electrical measurements and warranty documentation should be retained after commissioning. Buyers should also understand what the warranty covers, how long it applies and which service channel to contact if technical support is required.

This is particularly important for distributors, contractors and project buyers, because long-term technical support can be just as important as the initial product supply.

Think About the System, Not Just the Heating Mat

When comparing electric underfloor heating solutions, asking only about wattage or price per square metre does not tell the whole story.

A well-planned system combines the right heating design, a suitable heating element, accurate temperature control, professional installation and reliable project documentation and support. Getting these five elements right is what turns a heating product into a complete floor-heating system.

Frequently Asked Questions

What does a complete electric underfloor heating system include?

A complete system typically includes a properly designed heating layout, electric heating elements, thermostatic control and floor sensing, professional installation and testing, and the necessary commissioning, warranty and after-sales documentation.

Does every room need the same heating output?

Not necessarily. Heating requirements can vary according to room size, insulation, heat loss, floor construction, room use and the actual area available for heating.

Why is a floor sensor important for electric floor heating?

A floor sensor allows a compatible thermostat to monitor floor temperature and can be used to control or limit floor temperature according to the system configuration and floor-covering requirements.

Why should the heating element be tested during installation?

Electrical checks at key stages of installation help identify possible damage before the heating element becomes inaccessible beneath the finished floor.
