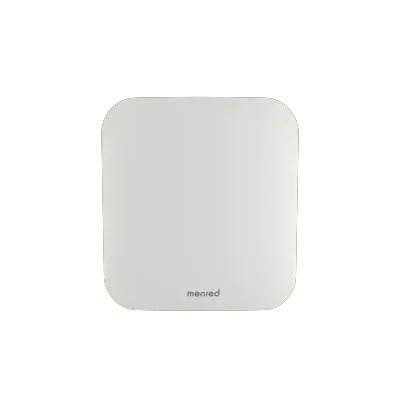

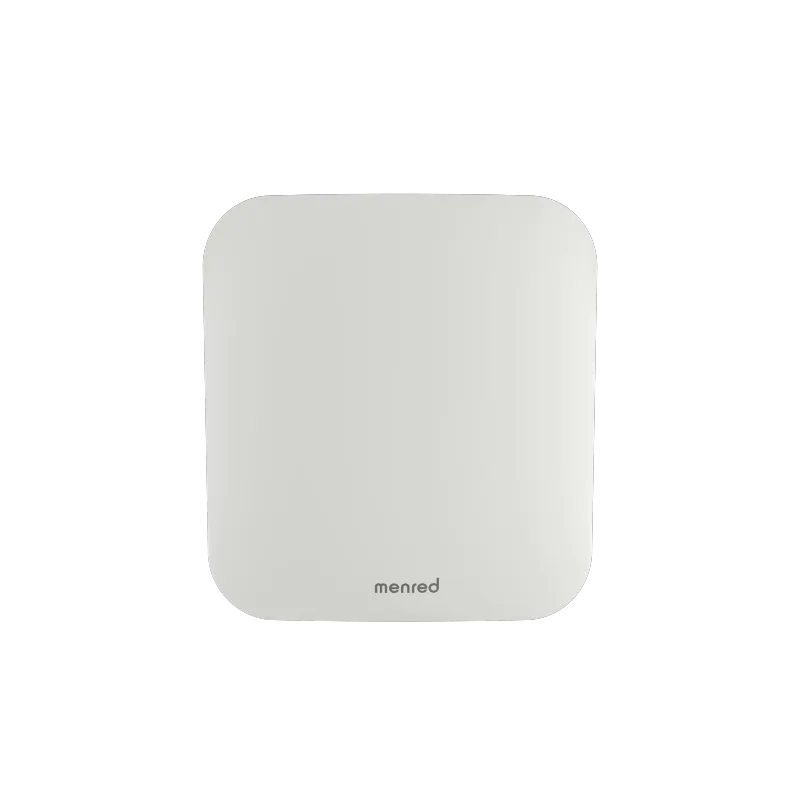

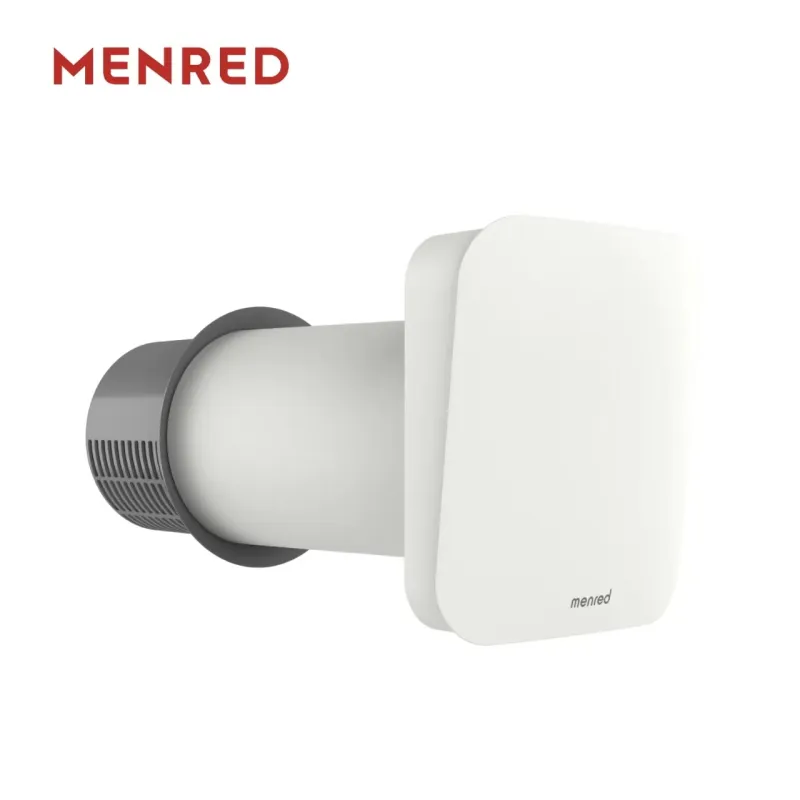

The MENRED Be160 is a ductless single-room heat recovery ventilator for residential spaces. It provides airflow of up to 60 m³/h and heat recovery efficiency of up to 98% through an antibacterial honeycomb ceramic core. Standard G2 F7 filtration, a DC EC fan, and Tuya Wi-Fi app control support everyday room ventilation; G4 filtration is available as an option.
| Specification | Details |
|---|---|
| Model | Be160 |
| Type | Ductless single-room heat recovery ventilator |
| Power supply | 110–240 V~ 50/60 Hz |
| Rated airflow | Up to 60 m³/h |
| Motor / fan | DC EC fan |
| Product dimensions | 250 × 230 × 450 mm |
| Heat recovery efficiency | Up to 98% |

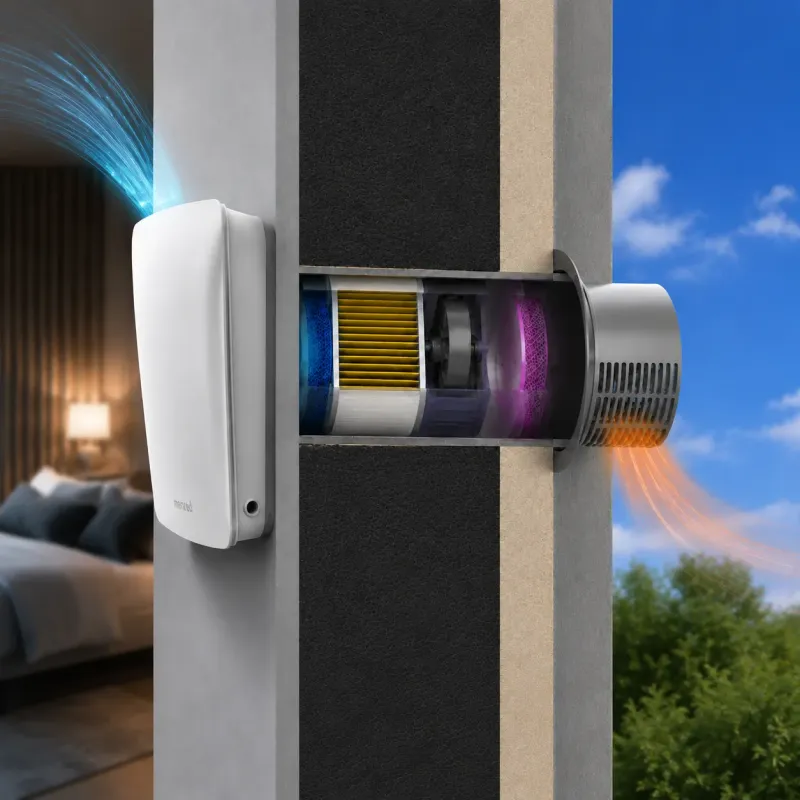

| Heat exchanger | Antibacterial honeycomb ceramic core |
| Power consumption | 5 / 6 / 7 / 8 W |
| Noise | 21 / 23 / 26 / 28 dB(A) |
| Fan speeds | Night / I / II / III |
| Filter | G2 F7; G4 optional |
| Operating modes | Heat recovery / fresh air supply / exhaust |
| Mode switching time | Approximately 50 seconds |
| Operating temperature | −25°C to 50°C |
| Standard sensor | Sensirion temperature and humidity sensor |
| External sensor support | VOC / PM2.5 / formaldehyde / other sensors |
| Control methods | Button / remote controller / Tuya Wi-Fi app |
| Wireless pairing range | Up to 30 m |
| Installation hole | Ø160 mm |
| Installation length | 275–500 mm |
| Outdoor protection | IPX4 |
| Front panel material | ASA |
| Outdoor grille | Coated plastic-steel |
| Air damper durability | Tested for 100,000 cycles |
| Smart functions | Filter reminder / LED status / OTA upgrade |
The Be160 provides airflow of up to 60 m³/h.
The listed heat recovery efficiency is up to 98%, using an antibacterial honeycomb ceramic core.
The standard filters are G2 F7. A G4 filter is available as an option.
The listed modes are heat recovery, fresh air supply, and exhaust.

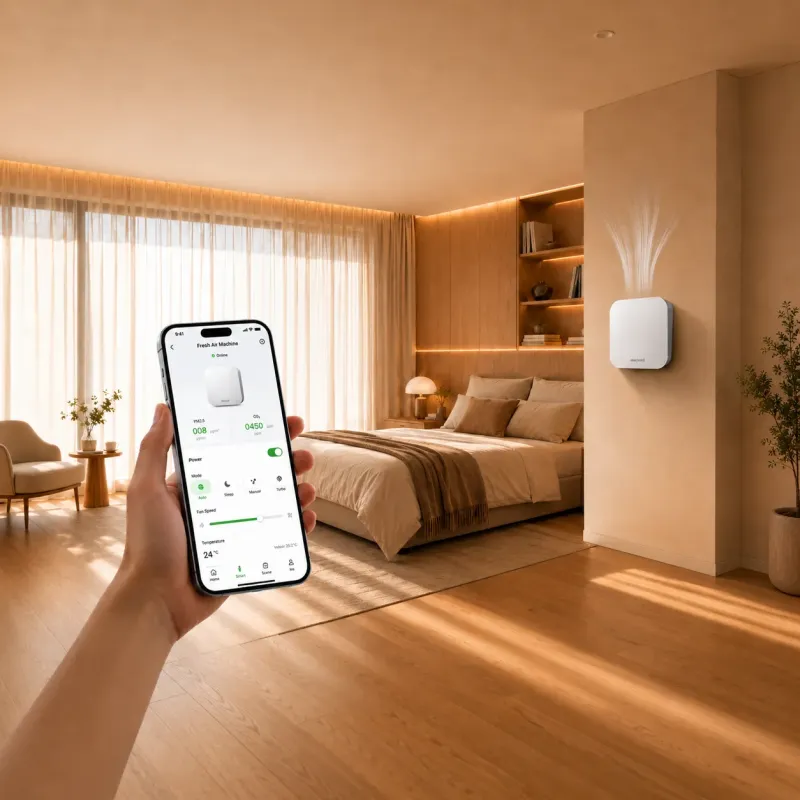

The listed control methods are the unit button, remote controller, and Tuya Wi-Fi app.
Two units can operate together in opposite directions. The listed wireless pairing range is up to 30 m.
The listed installation opening is Ø160 mm. The specified installation length is 275–500 mm.
It includes a Sensirion temperature and humidity sensor and supports external VOC, PM2.5, formaldehyde, and other sensors. Optional CO₂ sensor support is also listed.
Contact MENRED to discuss the Be160, its control options, or your single-room ventilation project.
