MENRED Central Vacuum System – W160 & W180 Power Units

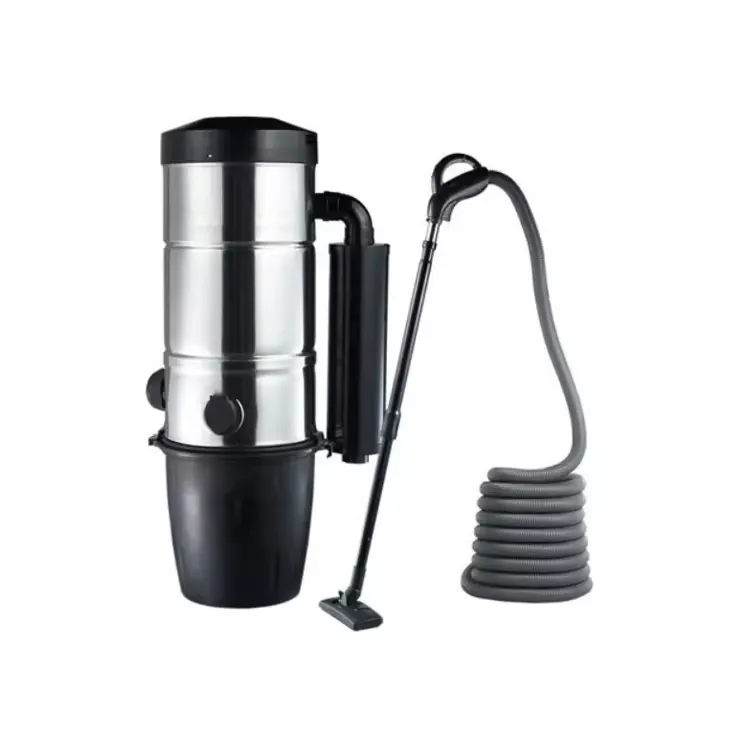

MENRED CVS3.16.W160 and CVS3.16.W180 central vacuum power units combine an AMETEK motor, mixed-cyclone separation and HEPA filtration with a 20-litre dust container. Designed for residential central vacuum installations, both models operate on 220V/50Hz and feature a stainless steel housing, motor protection and an external muffler.
Product Description
Online Inquiry
Related products
Product Description

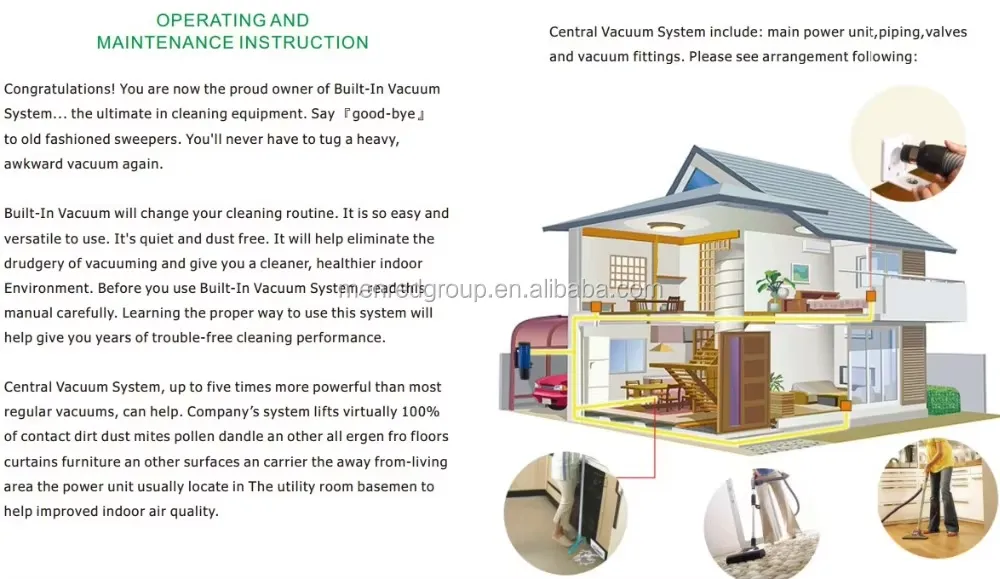

The MENRED CVS3.16.W160 and CVS3.16.W180 are residential central vacuum power units connected to a fixed pipe network and distributed vacuum inlets. Dust is collected in a 20-litre container at the power unit, while users clean individual rooms using a hose and suitable cleaning tools.

Both models feature an AMETEK motor, a stainless steel housing, mixed-cyclone separation and HEPA filtration. The W180 provides higher listed airflow, suction and air watts than the W160. Model selection should consider the complete pipe layout and cleaning requirements.

Key Features

  • 20-litre dust container: removable for emptying and filter access.
  • AMETEK motor: available in two models with different rated performance.
  • Mixed-cyclone separation and HEPA filtration: combines dust separation with a serviceable filter assembly.
  • Stainless steel housing: wall-mounted power unit with a supplied mounting bracket.
  • Motor protection: includes an over-current protection switch.
  • External muffler: listed as a standard accessory.
  • Local controls: auto/manual mode switch, LED indicator and signal-wire connection.
  • Integrated vacuum inlet: provides a connection point on the power unit.

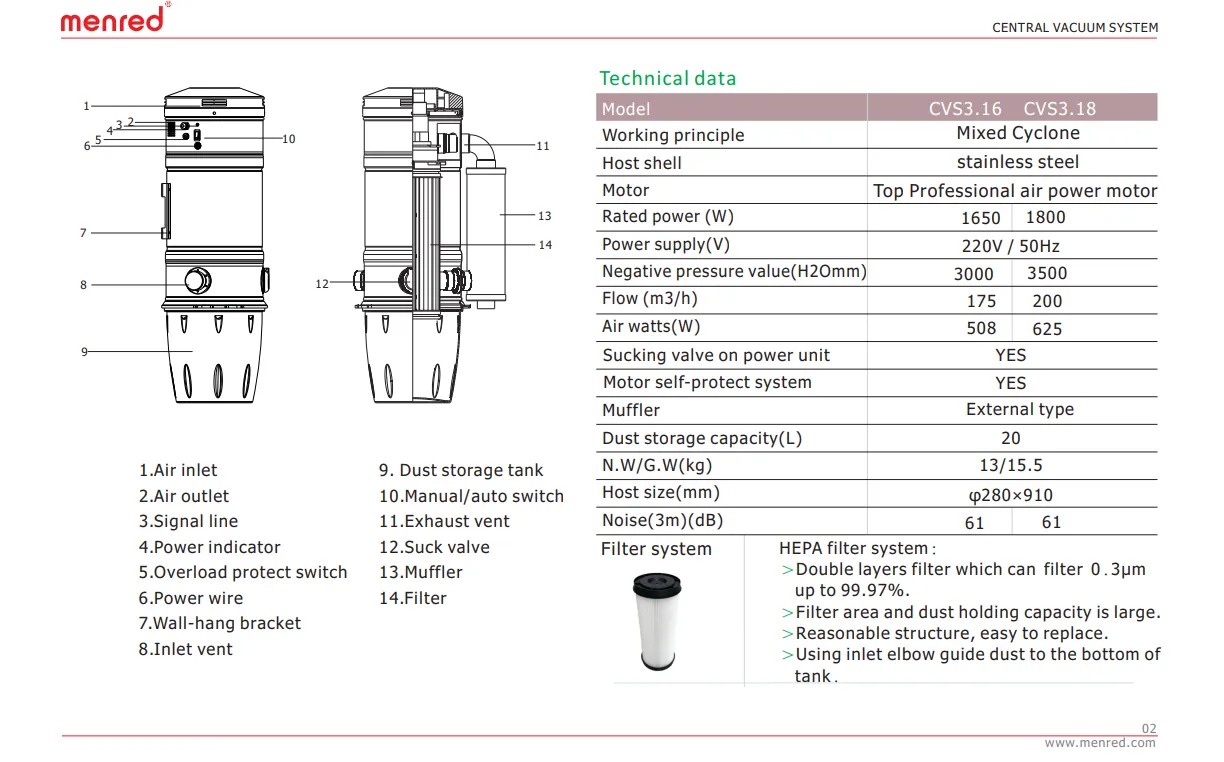

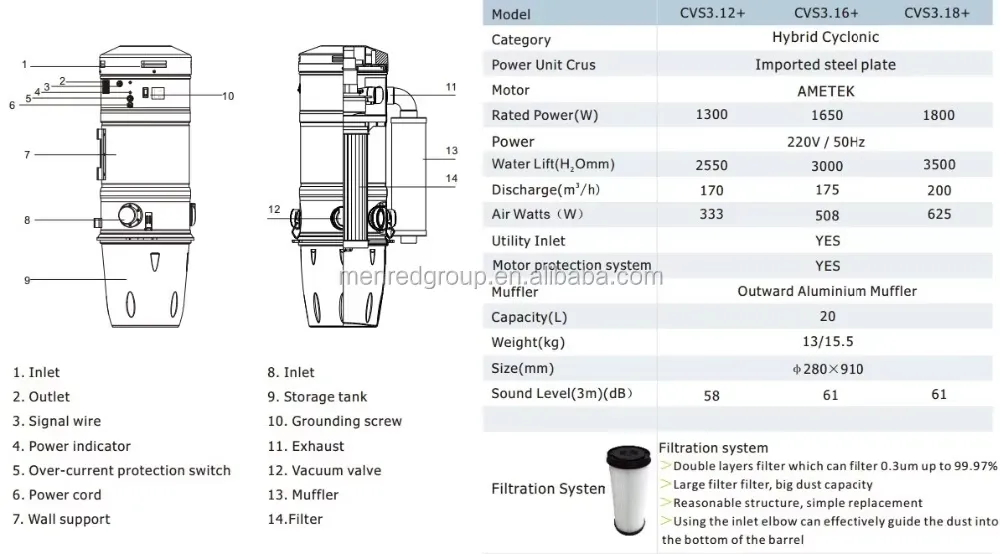

W160 and W180 Technical Specifications

Parameter CVS3.16.W160 CVS3.16.W180
Rated power 1650 W 1800 W
Power supply 220 V / 50 Hz 220 V / 50 Hz
Negative pressure 3000 mmH₂O 3500 mmH₂O
Airflow 175 m³/h 200 m³/h
Air watts 508 W 625 W
Dust capacity 20 L 20 L
Noise at 3 m 61 dB 61 dB
Motor AMETEK AMETEK
Housing Stainless steel Stainless steel
Filtration Mixed cyclone HEPA filter Mixed cyclone HEPA filter
Power unit dimensions Ø280 × 910 mm Ø280 × 910 mm
Net / gross weight 13 / 15.5 kg 13 / 15.5 kg
Package dimensions 415 × 375 × 995 mm 415 × 375 × 995 mm

Specifications are taken from the MENRED W160/W180 product datasheet. Air watts describe suction performance and are different from electrical input power. Listed airflow and negative pressure values should not be assumed to occur simultaneously. Installed performance depends on pipe routing, fittings, hose length and filter condition.

Model Selection and Installation Planning

The W160 is rated at 1650 W with 508 air watts and 175 m³/h airflow. The W180 is rated at 1800 W with 625 air watts and 200 m³/h airflow. The W180 offers higher listed performance, but floor area alone is insufficient for selecting a central vacuum power unit.

Share the number of floors, proposed inlet positions, longest pipe run, hose length and power-unit location with MENRED. Plan mounting, electrical supply, exhaust routing and access for dust-container removal before installation. The specified electrical supply is 220 V / 50 Hz.

Filtration and Maintenance

The filter assembly includes a coarse filtering sleeve and a HEPA filter. Disconnect the power before maintenance. Release the container closures, remove the dust container and undo the retaining nut to access the filter. The coarse sleeve can be washed and must be fully dried before refitting. The datasheet instructs users to remove dust from the HEPA filter with a vacuum cleaner; it does not specify washing the HEPA element.

Standard Accessories and System Scope

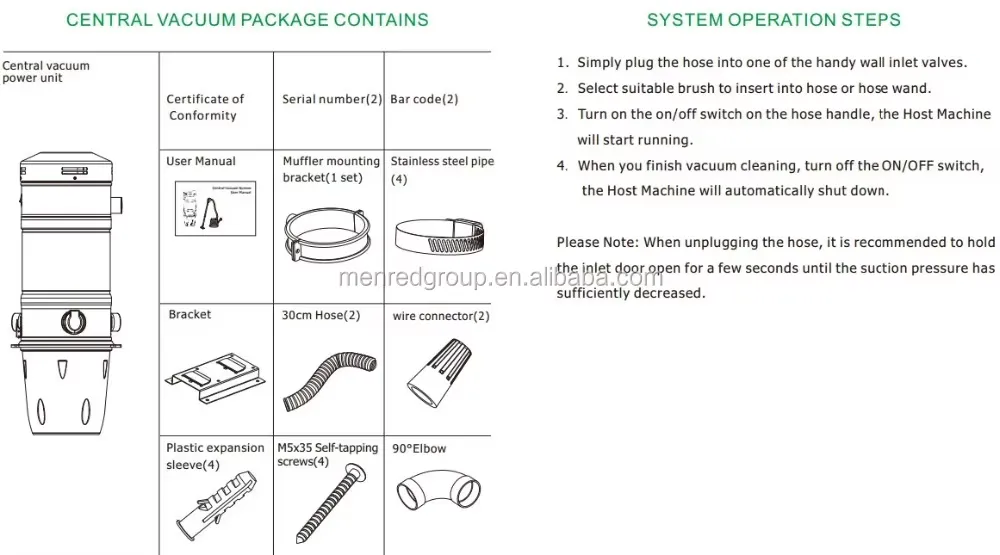

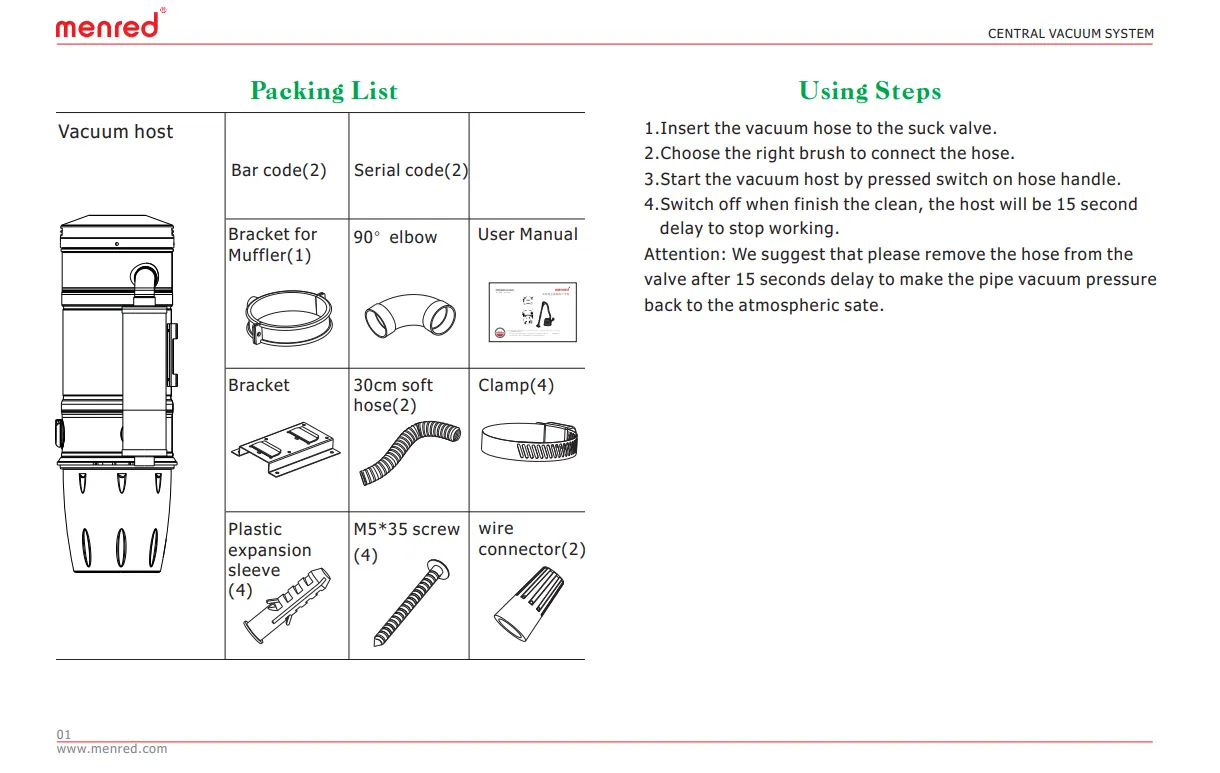

The datasheet lists a mounting bracket, connection hose, external muffler, pipe collar clamp, 90° elbow, user manual and screw kit. Room cleaning hoses, cleaning tools, wall inlets and the building pipe network should be specified separately in the project quotation.

Explore the MENRED central vacuum system range or contact MENRED for model selection, accessory configuration and project pricing.

Frequently Asked Questions

What is the difference between W160 and W180?

The W160 has a rated power of 1650 W, airflow of 175 m³/h and 508 air watts. The W180 has a rated power of 1800 W, airflow of 200 m³/h and 625 air watts. Both have a 20-litre dust container.

What power supply do these models require?

Both models are specified for 220 V / 50 Hz. Confirm the project electrical supply before ordering.

Can the HEPA filter be washed?

The datasheet permits washing the coarse filtering sleeve and requires it to be dried before refitting. It instructs users to clean the HEPA filter with a vacuum cleaner and does not specify washing the HEPA element.

Does the power unit include a complete whole-house cleaning system?

The datasheet lists installation accessories for the power unit. Room cleaning hoses, cleaning tools, wall inlets and the building pipe network should be specified separately in the project quotation.

Request a Central Vacuum System Quotation

Send your building layout, inlet requirements, hose length, electrical supply and order quantity. MENRED can help review the power unit and accessory configuration for your residential project or distribution enquiry.
