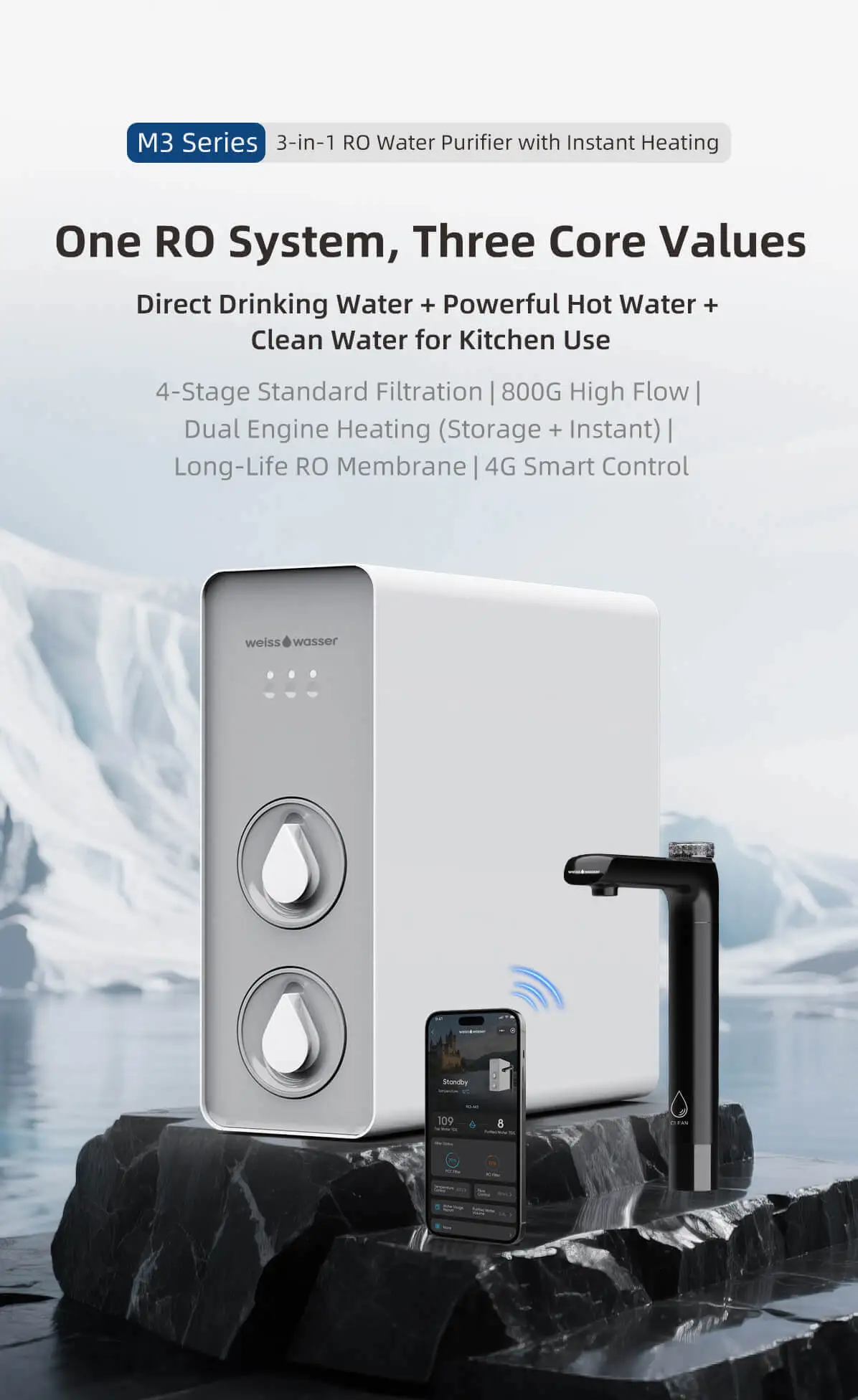

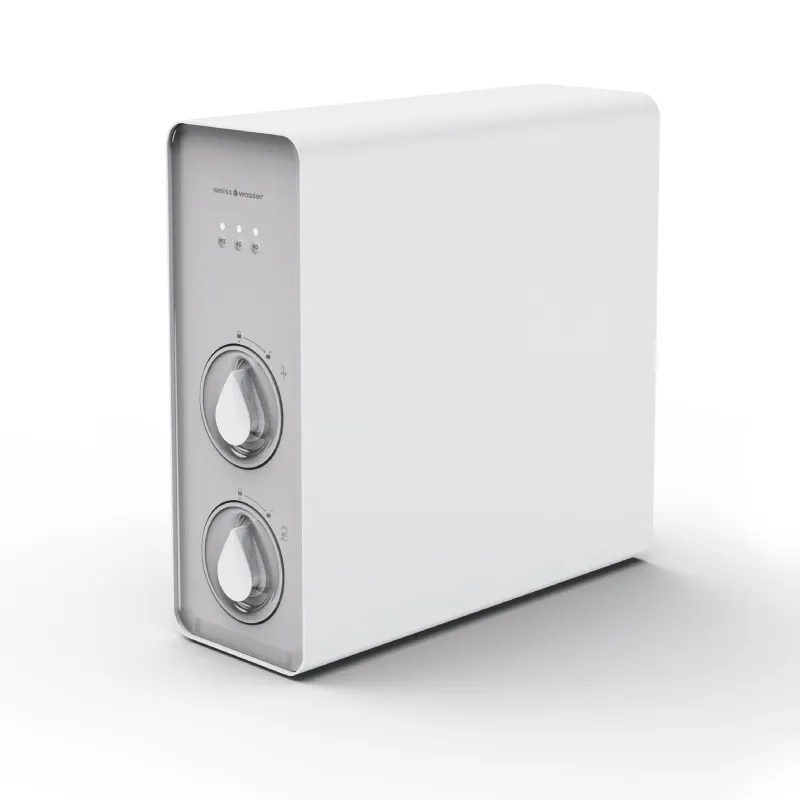

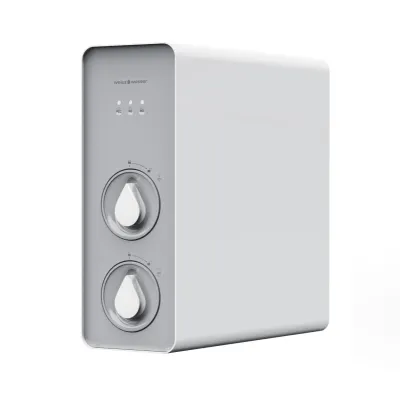

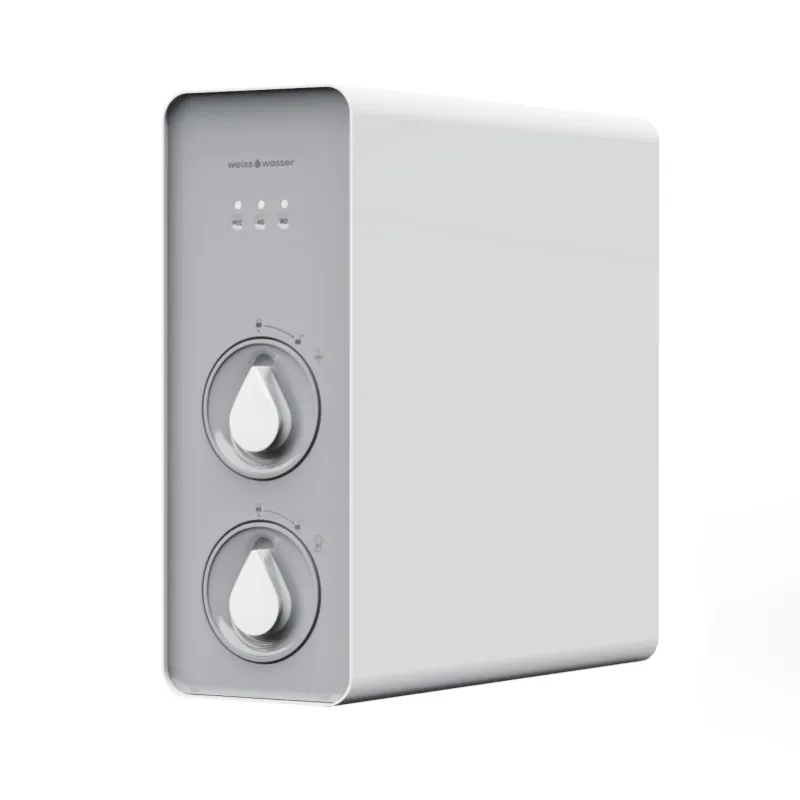

The MENRED M3 Series is an under-sink reverse osmosis water purifier with instant heating. It combines purified drinking water, hot water at preset temperatures, and a separate clean-water outlet described for kitchen tasks. Two models are listed: M3.C8-05 and M3.C10-05, with different purified-water flow rates and rated total capacities.

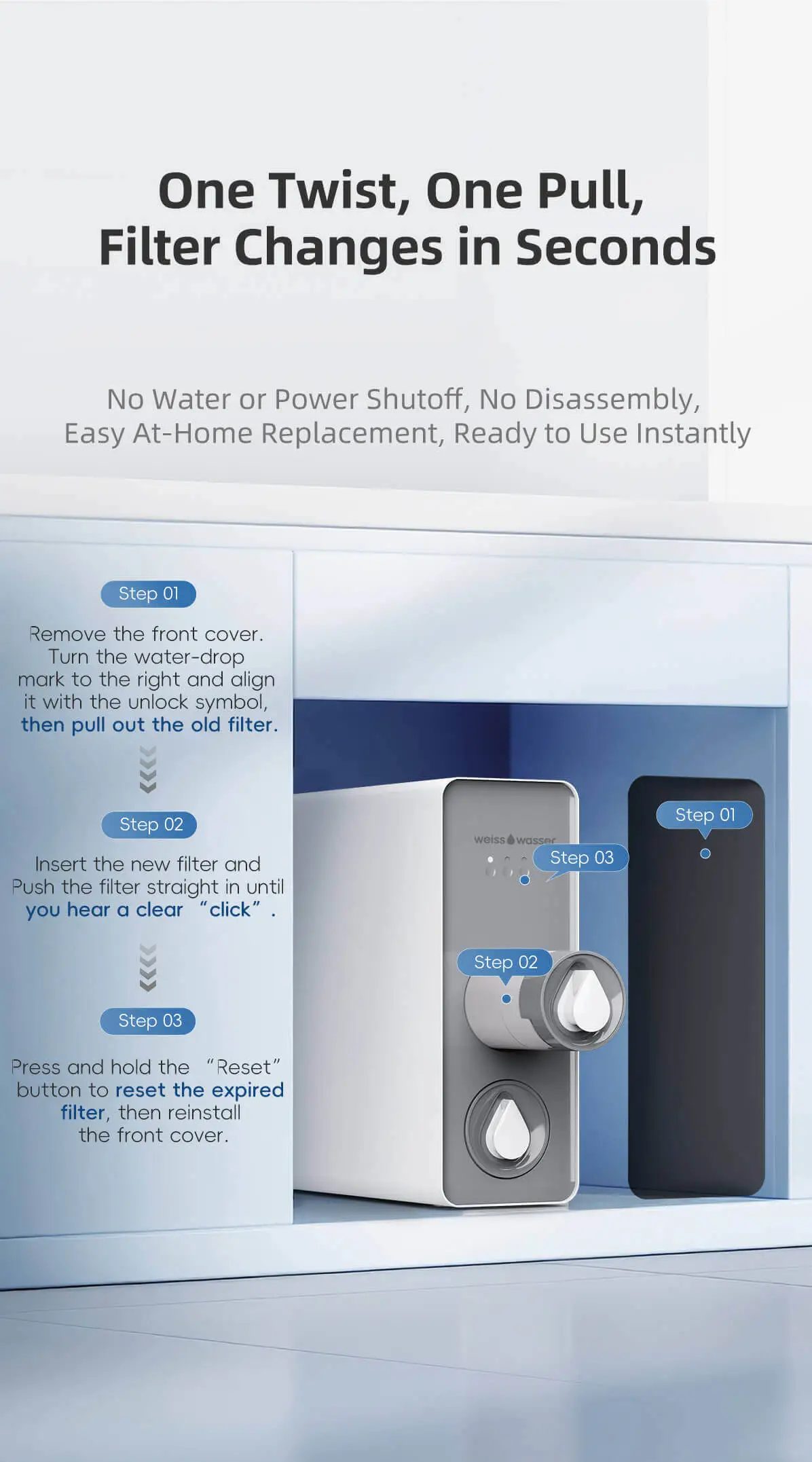

The system is designed for residential kitchens. Its smart faucet provides temperature and volume controls, while the front-access cartridges are designed for tool-free replacement. Before ordering, confirm the electrical rating, outlet configuration, and any optional functions for the selected model.

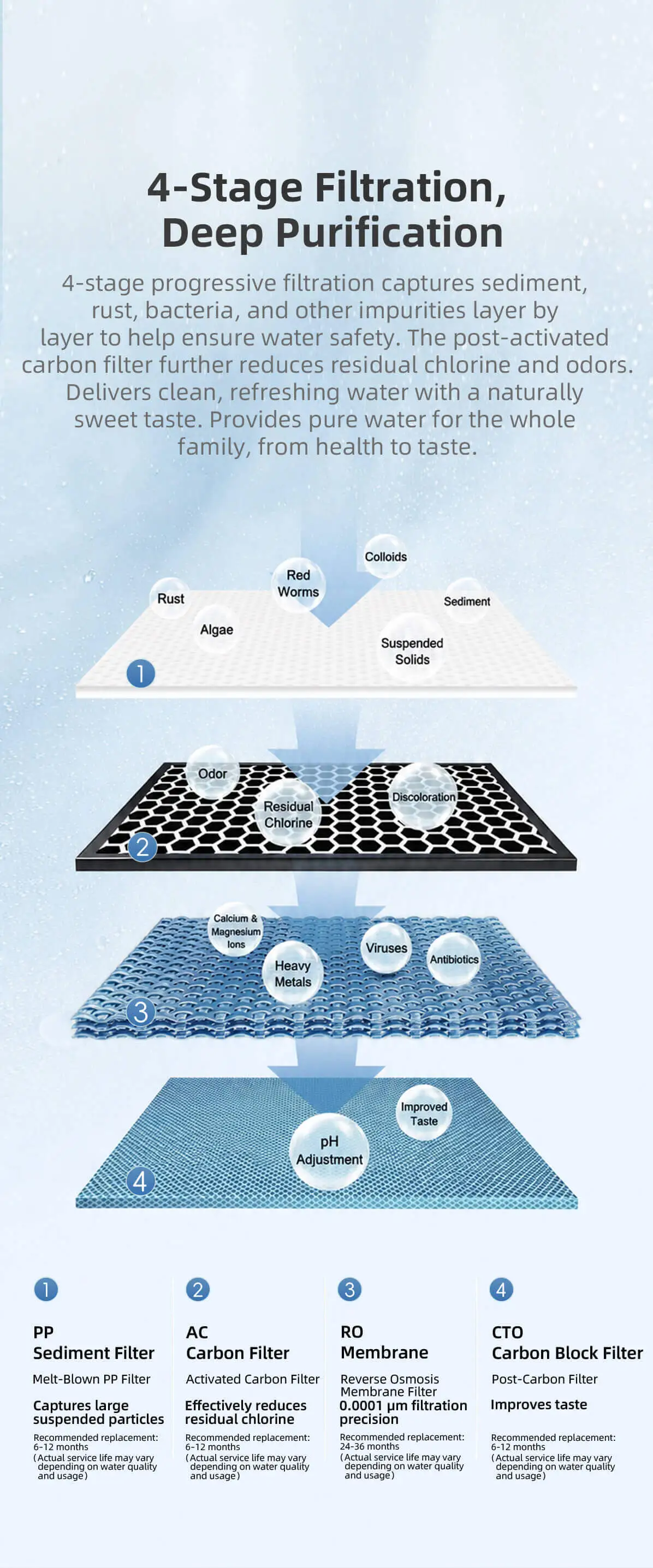

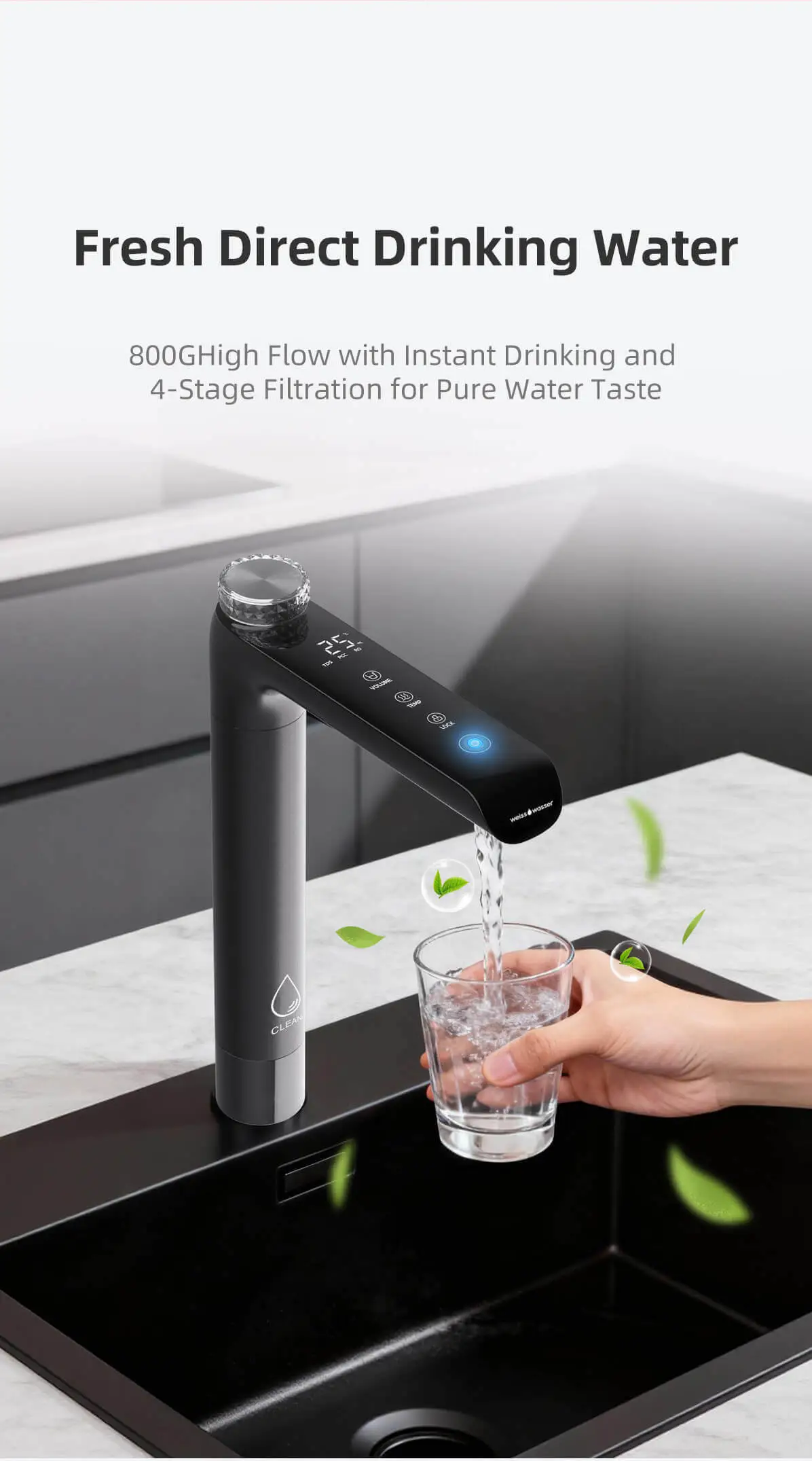

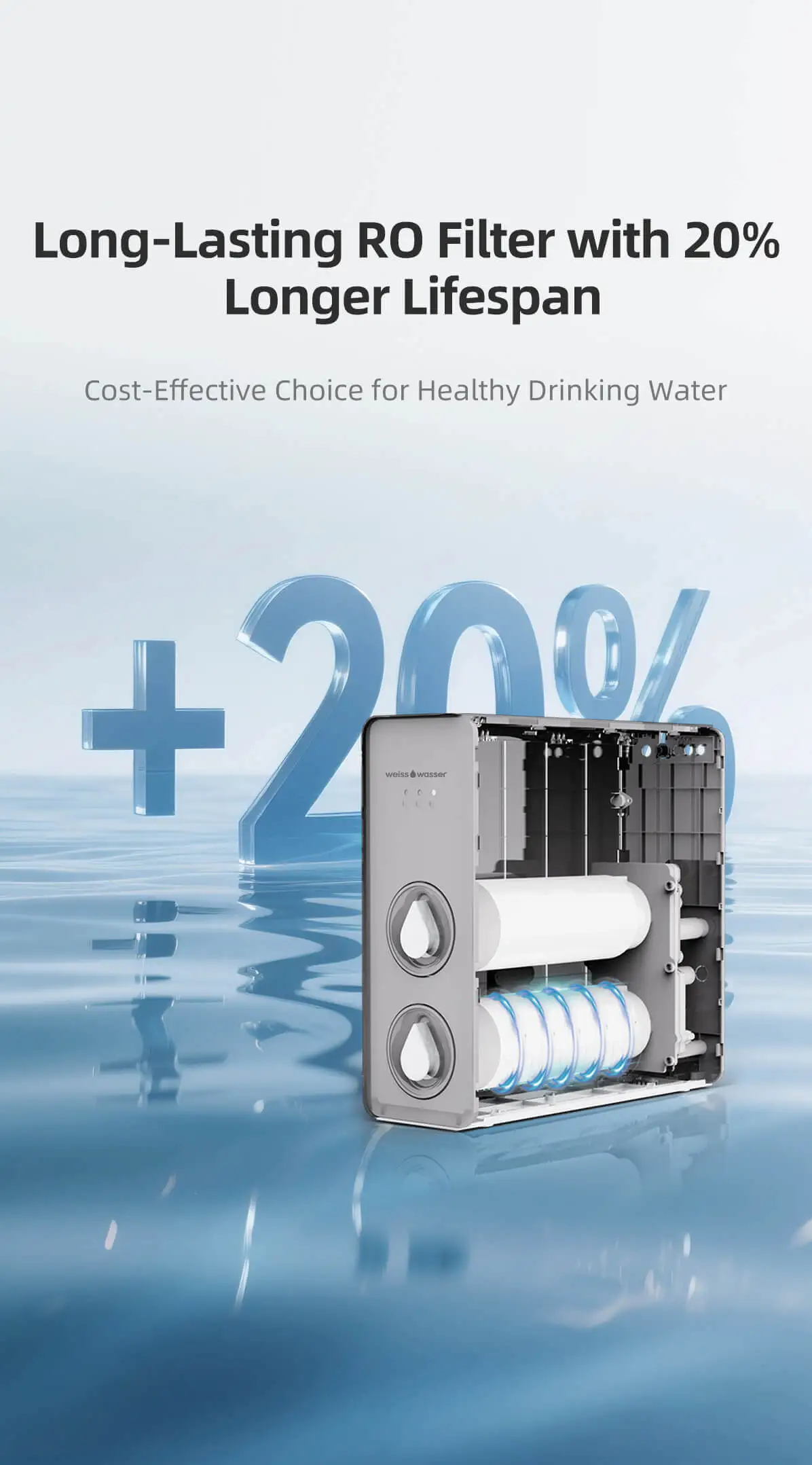

The M3 Series uses a composite pre-filter, activated carbon, a 0.0001 μm reverse osmosis membrane, and post-carbon polishing. The manufacturer lists an 800 GPD membrane and model-specific purified-water flow rates of 2.1 L/min or 2.5 L/min.
For more options, explore MENRED’s RO water purifier range or browse the full water purification product range.

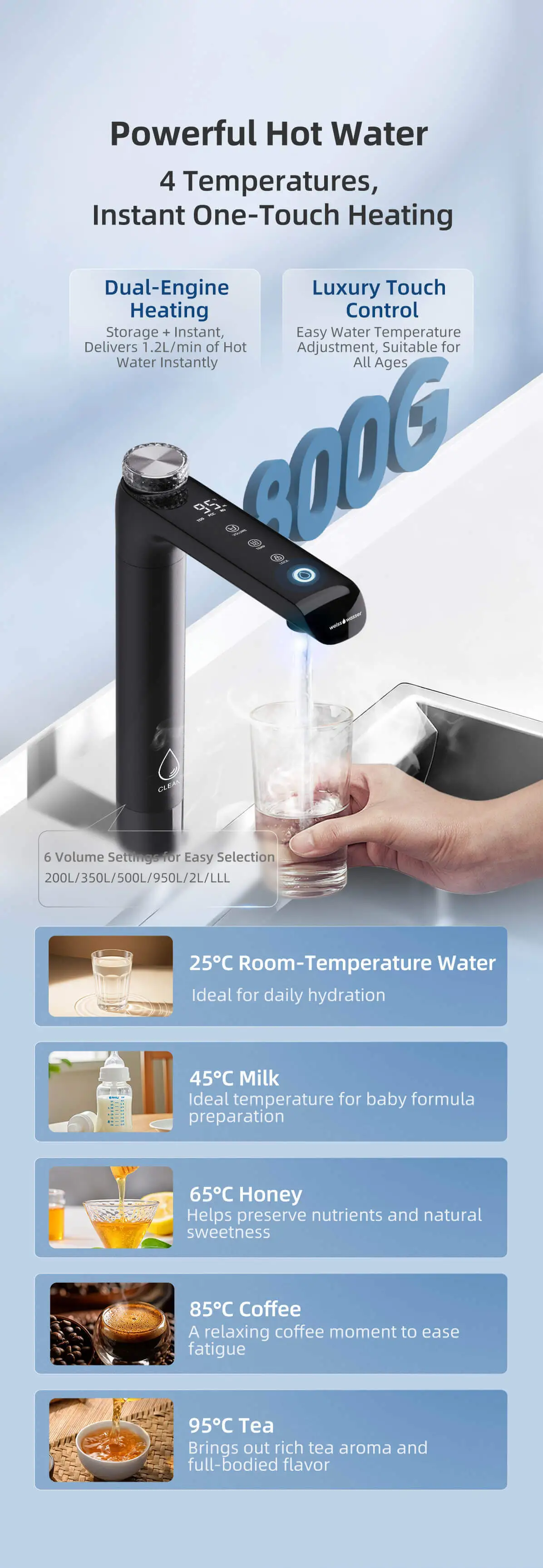

The dual-engine heating system is designed to provide hot water without a long wait. Five temperature presets are listed: 25°C, 45°C, 65°C, 85°C, and 95°C. The manufacturer lists a hot-water output range of 23–60 L/h at temperatures of at least 90°C; confirm the applicable output for the selected configuration.

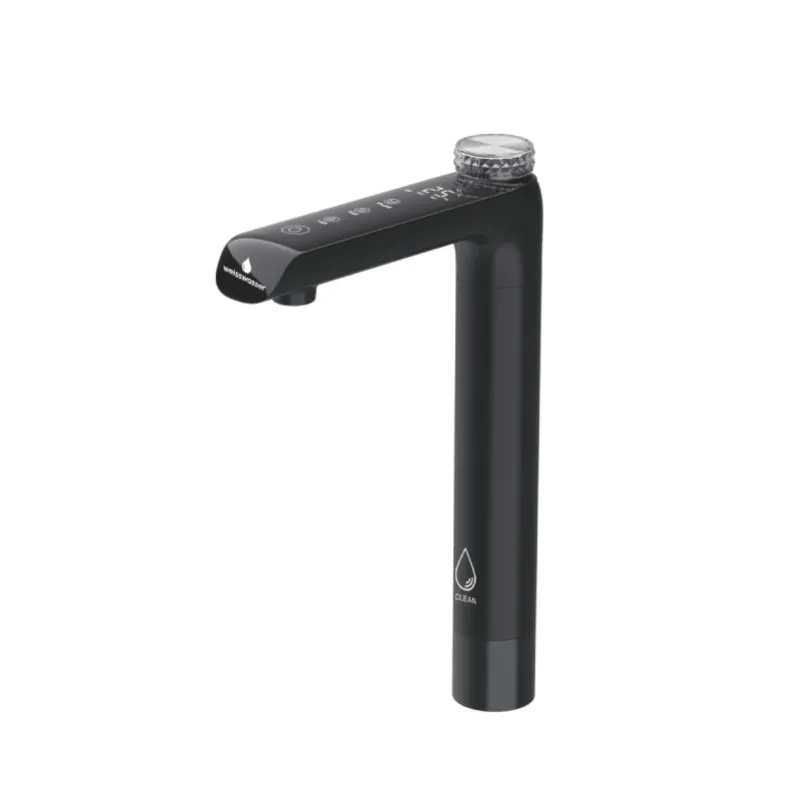

The smart faucet includes a rotary control, digital display, LED indicator, child lock, and one-touch dispensing. Wi-Fi and Bluetooth app connectivity is described for checking TDS readings, filter status, temperature, dispensing volume, water use, and machine status. App functions may vary by model or market. A TDS reading is an operating indicator and is not a complete water-safety test.

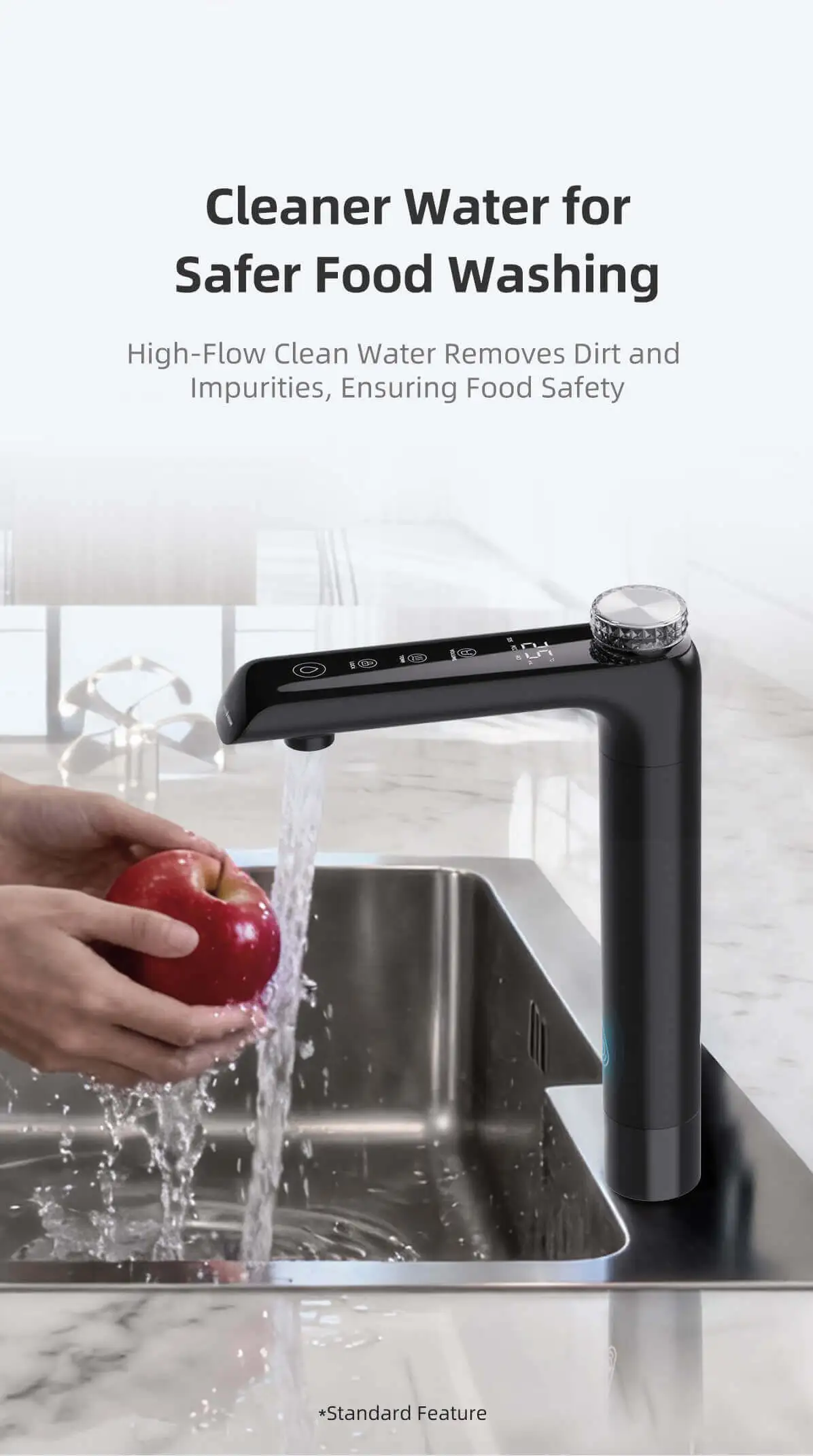

The M3 Series is described with a separate higher-flow clean-water outlet for tasks such as rinsing produce and cookware. The listed clean-water flow rate is 2.5 L/min. Confirm that this outlet is included in the model and configuration you select.
An optional AOP washing-water configuration is also mentioned by the manufacturer. Ask MENRED to confirm availability for the selected model and provide the applicable technical and test documents before relying on AOP performance claims.
| Specification | M3.C8-05 | M3.C10-05 |
|---|---|---|
| Purified-water flow rate | 2.1 L/min | 2.5 L/min |
| Rated total purified-water capacity | 7,000 L | 8,000 L |
| Electrical rating | Confirm with MENRED before ordering | 220 V~, 50 Hz |
The rated total purified-water capacity is a product specification; it does not define a fixed cartridge replacement interval. Follow the applicable maintenance guidance for the selected filter configuration.

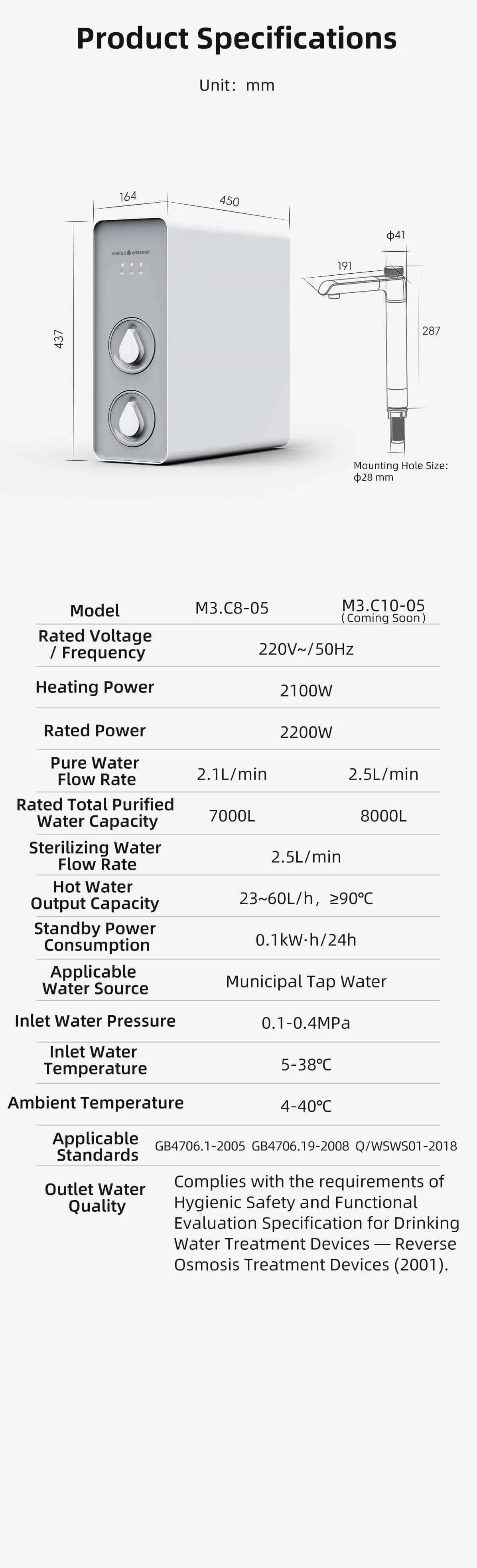

| Product models | M3.C8-05 / M3.C10-05 |
|---|---|
| Filtration system | Four-stage RO filtration with a 0.0001 μm membrane |
| Membrane rating | 800 GPD |
| Heating power | 2100 W |
| Rated power | 2200 W |
| Preset temperatures | 25°C, 45°C, 65°C, 85°C, and 95°C |
| Hot-water output | 23–60 L/h at ≥90°C; configuration-dependent |
| Separate clean-water flow | 2.5 L/min; confirm configuration |
| Standby power consumption | 0.1 kWh/24 h |
| Applicable water source | Municipal tap water |
| Inlet water pressure | 0.1–0.4 MPa |
| Inlet water temperature | 5–38°C |
| Ambient temperature | 4–40°C |
| Product dimensions (W × D × H) | 450 × 164 × 437 mm |
| Faucet mounting hole | Ø28 mm |
| Electrical rating | M3.C10-05: 220 V~, 50 Hz. Confirm the M3.C8-05 rating before ordering. |
The listed purified-water flow rates are 2.1 L/min for M3.C8-05 and 2.5 L/min for M3.C10-05. Their rated total purified-water capacities are 7,000 L and 8,000 L, respectively.
The M3 Series has five preset temperatures: 25°C, 45°C, 65°C, 85°C, and 95°C.
The series is described with a separate clean-water outlet for kitchen tasks, with a listed flow rate of 2.5 L/min. Confirm that this outlet is included in the selected model and configuration.
An optional AOP washing-water configuration is mentioned for the M3 Series. Confirm its availability for the selected model and request the applicable technical and test documents before relying on performance claims.
The listed rating for M3.C10-05 is 220 V~, 50 Hz. The manufacturer’s page marks the M3.C8-05 voltage for confirmation, so verify its electrical rating before ordering.

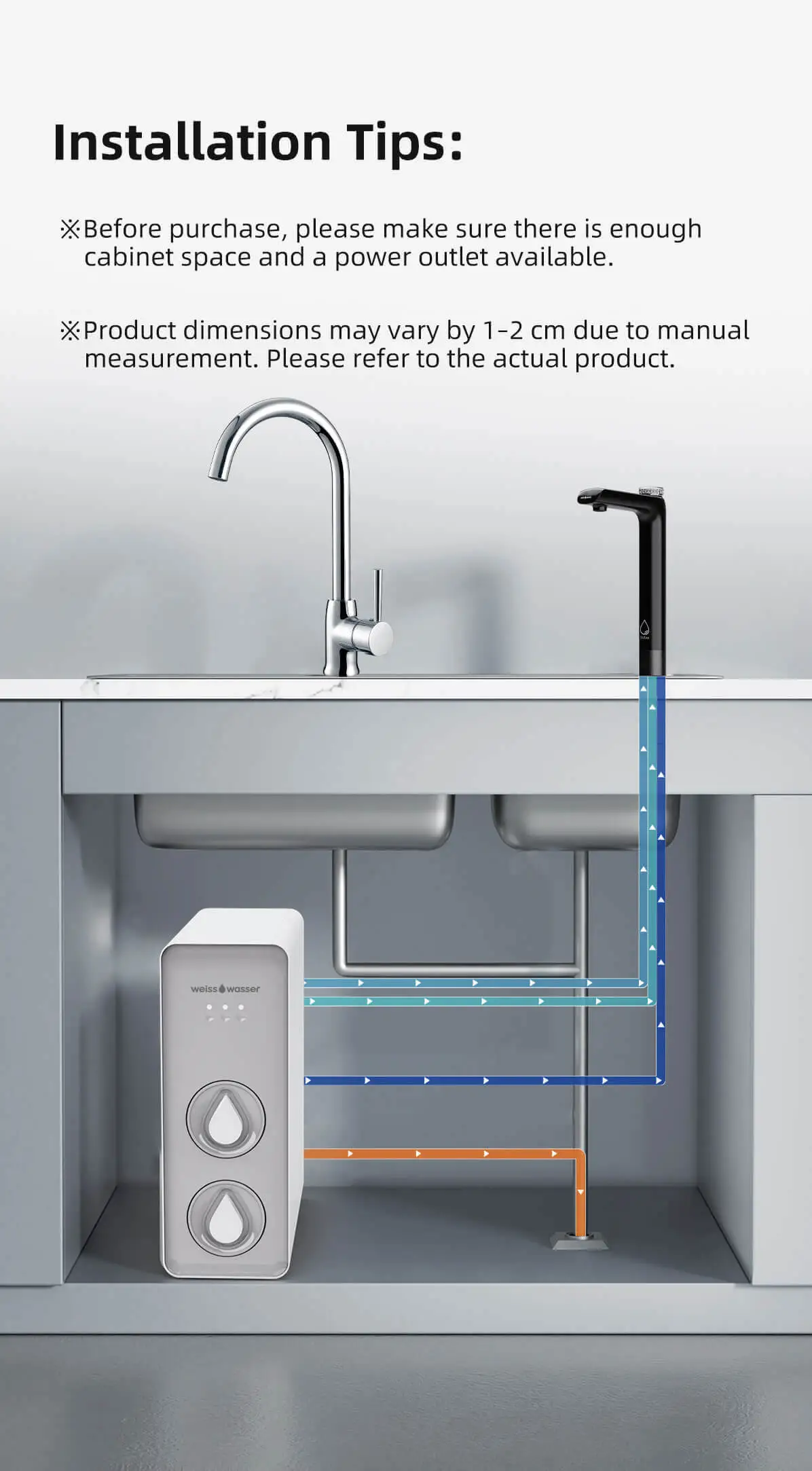

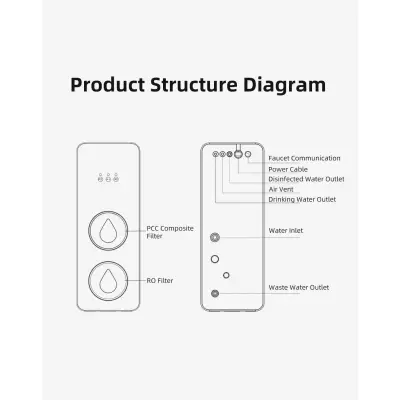

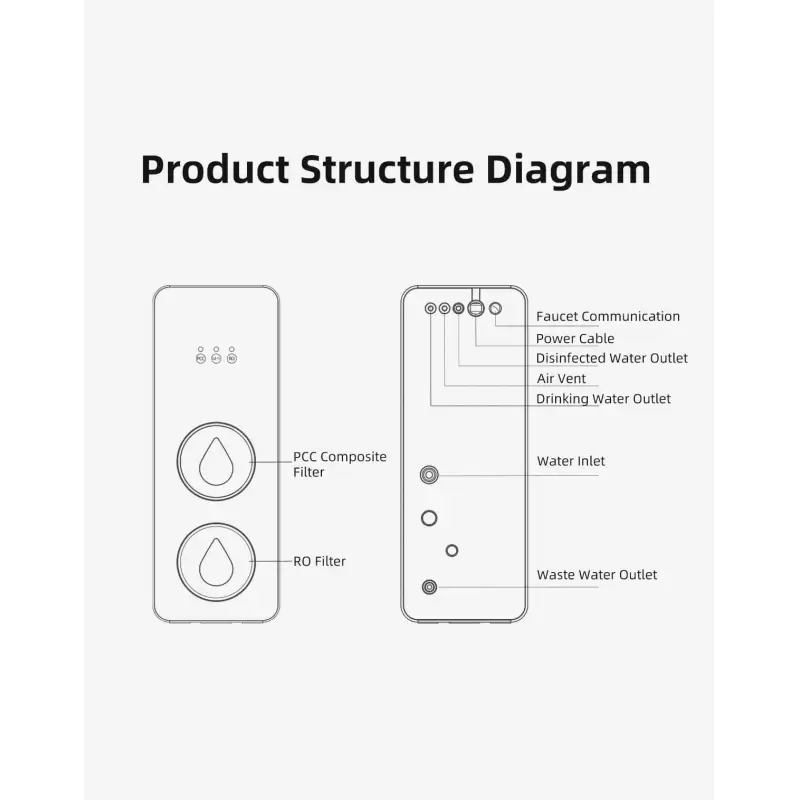

The purifier is installed under the sink and requires a municipal cold-water connection, a drain connection, and a power outlet. The listed faucet mounting hole is Ø28 mm. Check the available cabinet space against the product dimensions of 450 × 164 × 437 mm.
Contact MENRED to confirm model selection, electrical ratings, outlet configuration, and optional functions for the M3 Series.
