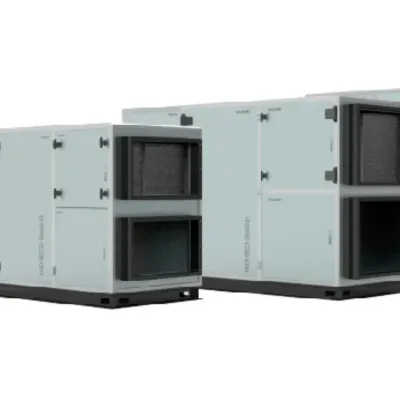

The MENRED NET Rotary series is designed for centralized commercial ventilation projects requiring total heat recovery. Six models provide rated airflow from 1,500 to 5,000 m³/h. The series features EC fans, G4 F8 filtration, and rotary heat recovery, with listed heat exchange efficiency ranging from 79.6% to 80% across the models.
| Model | Rated Airflow | Rated Power | Heat Exchange Efficiency | Noise | Weight | Dimensions |
|---|---|---|---|---|---|---|
| NET.1500L | 1,500 m³/h | 233 W | 79.8% | 66 dB(A) | 480 kg | 1,990 × 975 × 1,280 mm |
| NET.1700L | 1,700 m³/h | 274 W | 79.9% | 66 dB(A) | 420 kg | 1,645 × 1,570 × 900 mm |
| NET.2000L | 2,000 m³/h | 305 W | 80% | 68 dB(A) | 560 kg | 2,285 × 1,065 × 1,255 mm |
| NET.3500L | 3,500 m³/h | 380 W | 79.8% | 73 dB(A) | 850 kg | 2,680 × 1,295 × 1,500 mm |
| NET.3800L | 3,800 m³/h | 648 W | 79.8% | 78 dB(A) | 850 kg | 2,680 × 1,295 × 1,500 mm |
| NET.5000L | 5,000 m³/h | 1,100 W | 79.6% | 83 dB(A) | 1,000 kg | 2,795 × 1,500 × 1,715 mm |
| Series | NET Rotary |
|---|---|
| Power Supply | 380V~ 50/60Hz |
| Fan Type | EC fan |
| Filter | G4 F8 |
| Installation | Ceiling-mounted |
| Outdoor Temperature | −15°C to 50°C |
The series includes six models with rated airflow from 1,500 to 5,000 m³/h: NET.1500L, NET.1700L, NET.2000L, NET.3500L, NET.3800L, and NET.5000L.
The listed model efficiencies range from 79.6% to 80%, with efficiency varying by model.
The NET Rotary series uses G4 F8 filtration and EC fans.
A reserved RS-485 communication port is available for integration with building control systems.
The listed power supply is 380V~ 50/60Hz. The specified outdoor temperature range is −15°C to 50°C.
Share your project airflow and installation requirements with MENRED to discuss the suitable NET Rotary model and request technical information.
