Air Cooled Chiller | Modular Unit

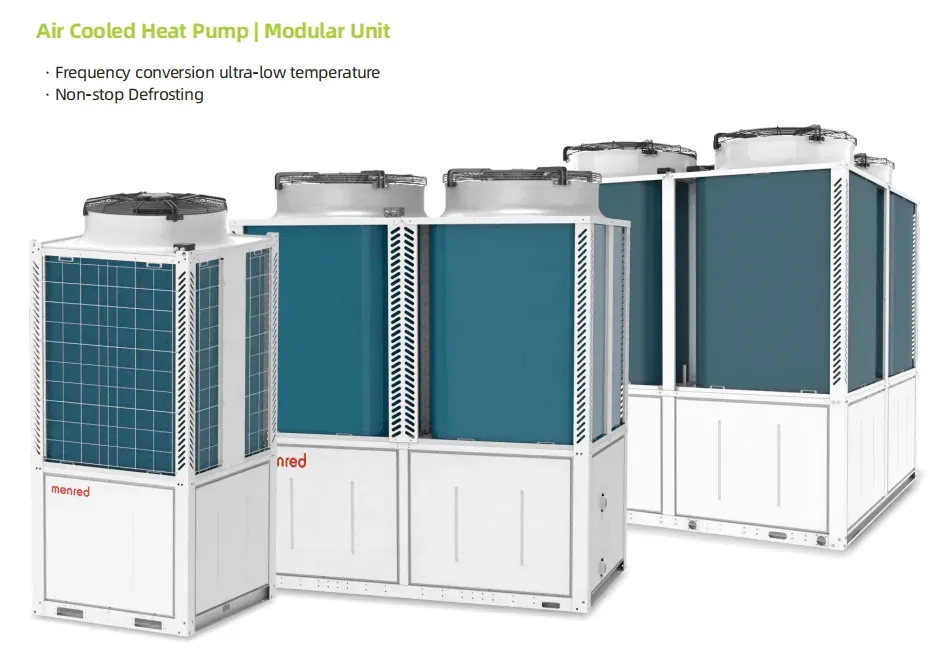

Menred air-cooled heat pump is a modular unit specifically designed for efficient temperature control.

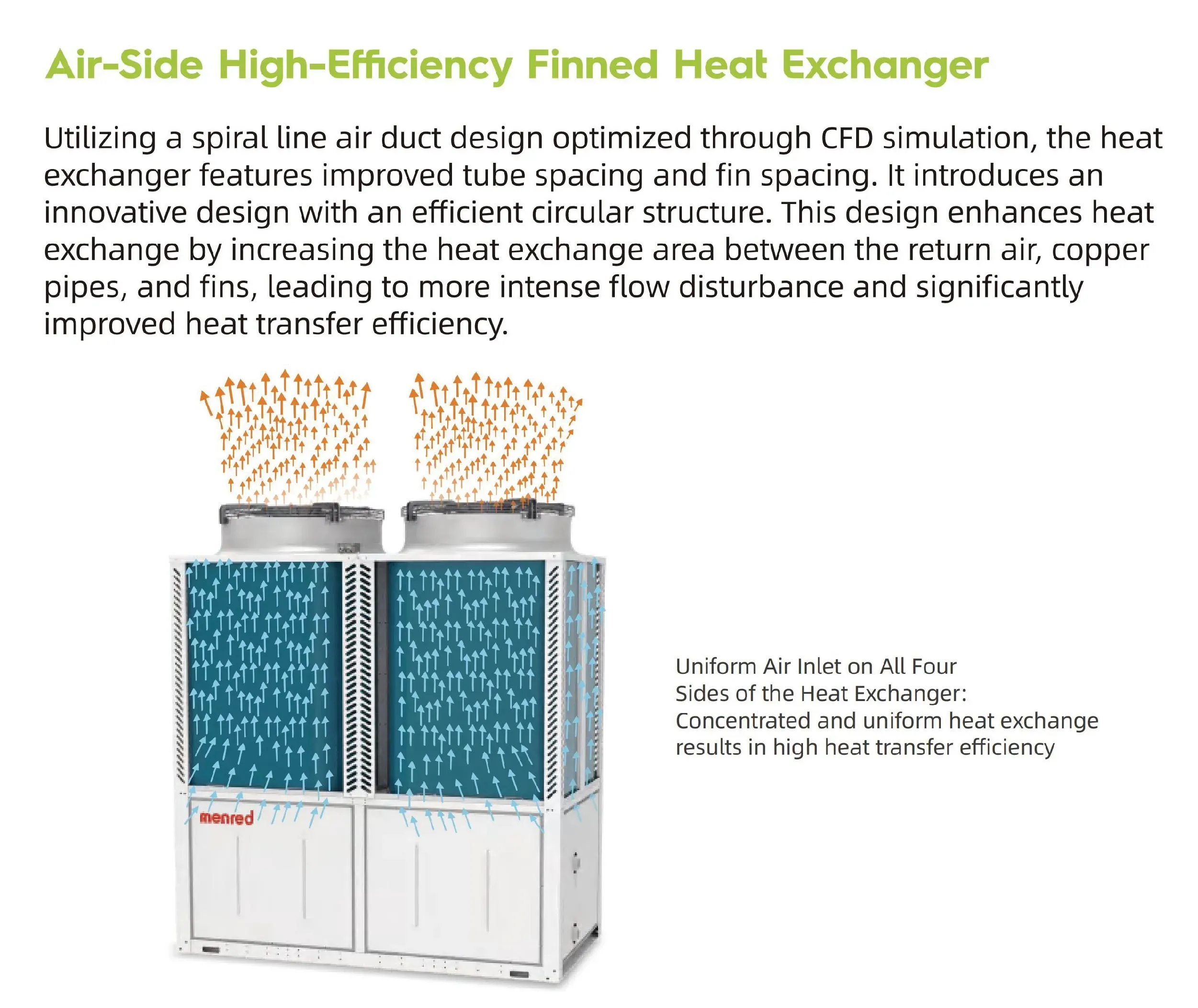

With its frequency conversion ultra-low temperature capabilities, this heat pump can effectively operate in extremely low temperature conditions. It employs a non-stop defrosting system, ensuring continuous and reliable performance even in freezing temperatures. The intelligent rotational defrosting technology further enhances its efficiency by effectively removing ice build-up from the heat exchanger, allowing for uninterrupted operation.

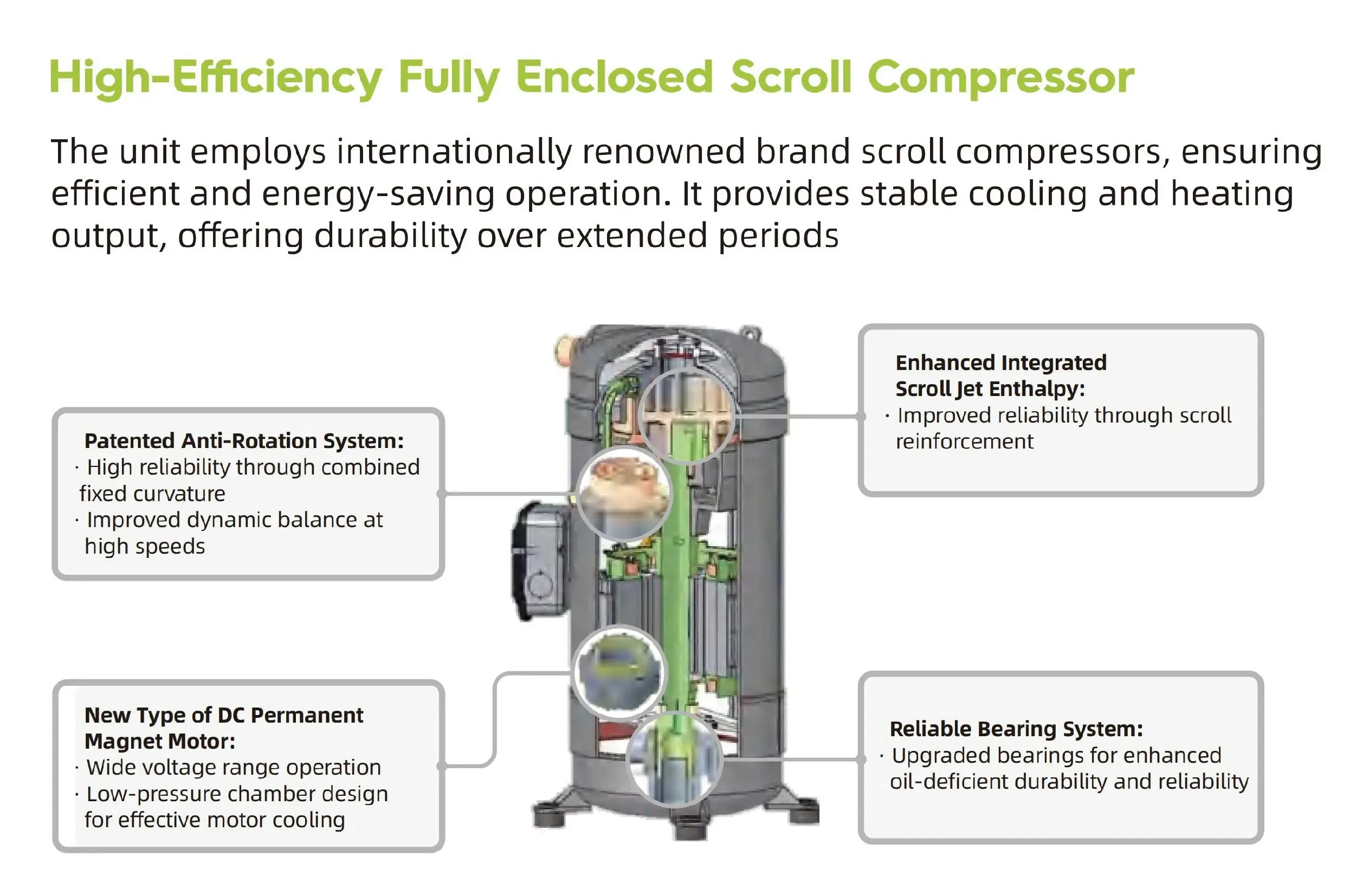

The heat pump is built with a high-efficiency fully enclosed scroll compressor. This compressor design optimizes performance by providing smooth and reliable operation, while also ensuring energy efficiency. It effectively transfers heat between the unit and the surrounding air, contributing to excellent heating and cooling performance.

Furthermore, this air-cooled heat pump prioritizes reliable quality. It is manufactured using high-quality components and undergoes stringent testing to ensure long-lasting durability. Its robust construction ensures a reliable and efficient operation even in demanding conditions, providing peace of mind to users.

Product appearance
Model				MGC065D		MGC130D		MGC150D			MGC160D				MGC260D				MGC300D			MGC320D
Rated heating capacity(kW)				68		134		155			160				268				310			320
Rated heating input power(kW)				20.7		42.1		45.4			48.4				84.4				91			98.7
Rated heating				3.29		3.18		3.41			3.31				3.18				3.41			3.24
Nominal heating capacity (kW)				42.2		83.1		96.1			98				164				190			196
Nominal heating input power(kW)				16.5		33.6		38.1			38.6				70.8				77.2			78.7
Nominal heating				2.55		2.47		2.52			2.54				2.32				2.46			2.49
Nominal cooling capacity(kW)				65		130		150			145				260				300			300
Nominal cooling input power(kW)				20.7		41.4		44.2			45.9				83				88.6			93.6
Nominal cooling				3.14		3.14		3.39			3.16				3.13				3.39			3.20
Max. input power(kW)				29.2		59		62.3			62.3				119				125			126
Maximum input current (A)				60		102.5		110.6			110.6				206				219			221
Power				380V/3N~/50Hz
Cooling operation temperature range				10~48
Heating operation temperature range				-15~30		-15~30		-25~30			-30~30				-15~30				-25~30			-30~30
Compressor		Type		Scroll compressor
		Amount(Unit)		1		2		2			2				4				4			4
Fan		Type		Low noise rotating axial fan
		Amount(Unit)		1		2		2			2				4				4			4
		Rated power (W / Unit)		1.5		1.5		1.8			1.8				1.8				1.8			1.8
Water-side heat exchanger		Type		Brazed plate heat exchanger
		Water flow rate（m³/h）		11.2		22.4		25.8			24.9				44.7				51.6			51.6
Unit water resistance(kPa)				31		34		38			38				49				53			53
Unit inlet/outlet pipe connection size				Rc 2		R2 1/2									DN80
Designed maximum inlet/outlet water temperature difference				7		7		7			7				7				7			7
Operating weight (kg)				410		860		820			870				1830				1790			1850
Gross weight (kg)				404		850		810			860				1810				1770			1830
External dimensions (length x width x height mm)				1090x1050X2390		2100x1090x2390									2560x2230x2680
