MENRED air source heat pump is characterized by its DC variable frequency operation, energy-saving and quiet performance, stability, efficiency, and the ability to deliver superior performance even in severe cold conditions through EVI gas injection technology. It is a safe and reliable solution for efficient temperature control in various environments.

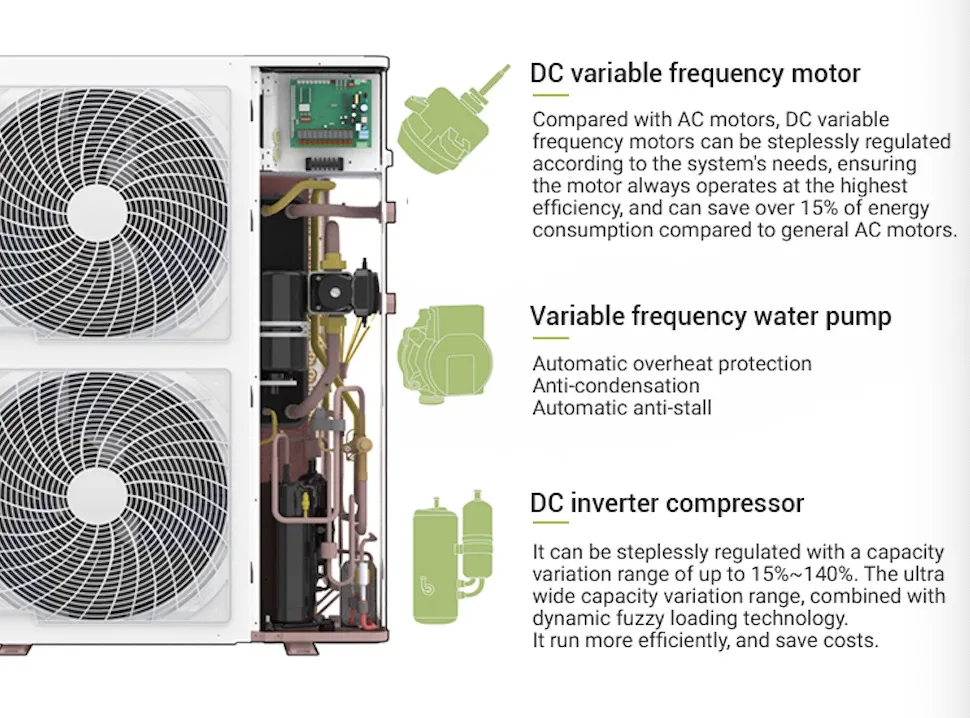

It utilizes DC variable frequency technology, allowing for precise control of the compressor and reducing energy consumption. This results in significant energy savings and helps minimize utility costs. Additionally, the variable frequency operation contributes to a quieter operation, reducing noise disturbances in the surrounding environment.

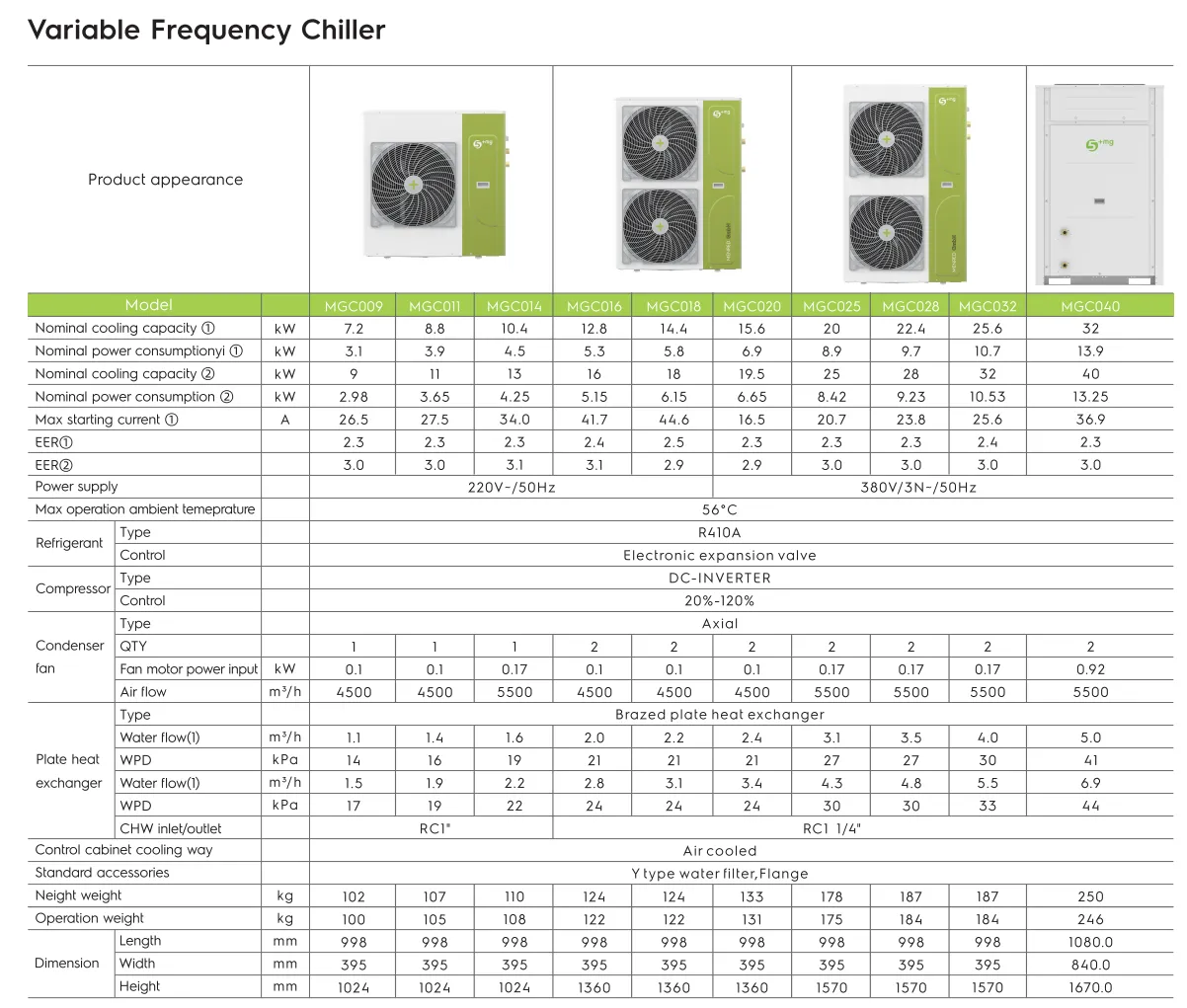

| Product appearance |  |
 |
 |
 |
|||||||||||||||||||||
| Model | MGC009 | MGC011 | MGC014 | MGC016 | MGC018 | MGC020 | MGC025 | MGC028 | MGC032 | MGC040 | |||||||||||||||
| Rated heating capacity(kW) | 10 | 12 | 14.5 | 18 | 20 | 22 | 27 | 30 | 34 | 44 | |||||||||||||||
| Rated heating input power(kW) | 2.77 | 3.34 | 4.19 | 5.26 | 6.02 | 6.42 | 7.82 | 8.81 | 10.72 | 13.70 | |||||||||||||||
| Rated heating | 3.61 | 3.59 | 3.46 | 3.42 | 3.32 | 3.43 | 3.45 | 3.40 | 3.17 | 3.21 | |||||||||||||||
| Nominal heating capacity (kW) | 6.6 | 7.8 | 10 | 12.4 | 13.0 | 14 | 18.3 | 20.2 | 22.5 | 29 | |||||||||||||||
| Nominal heating input power(kW) | 2.60 | 3.01 | 3.89 | 4.88 | 5.12 | 5.66 | 7.09 | 7.53 | 8.74 | 12.34 | |||||||||||||||
| Nominal heating | 2.53 | 2.59 | 2.57 | 2.54 | 2.54 | 2.47 | 2.58 | 2.68 | 2.58 | 2.35 | |||||||||||||||
| Low temperature heat production(kW) | 5.4 | 6.4 | 8.2 | 10.2 | 10.6 | 12.5 | 15.4 | 17.3 | 19.0 | 23.5 | |||||||||||||||
| Low temperature heating input power(kW) | 2.62 | 3.07 | 3.85 | 4.91 | 5.20 | 5.71 | 6.57 | 7.39 | 8.21 | 11.52 | |||||||||||||||
| Low temperature heating | 2.06 | 2.09 | 2.13 | 2.08 | 2.04 | 2.19 | 2.35 | 2.34 | 2.31 | 2.04 | |||||||||||||||
| Nominal cooling capacity(kW) | 9 | 11 | 13 | 16 | 18 | 19.5 | 25 | 28 | 30 | 40 | |||||||||||||||
| Nominal cooling input power(kW) | 2.98 | 3.65 | 4.95 | 5.56 | 6.79 | 7.49 | 9.25 | 10.65 | 11.50 | 14.1 | |||||||||||||||
| Nominal cooling | 3.02 | 3.01 | 2.63 | 2.88 | 2.65 | 2.60 | 2.70 | 2.63 | 2.61 | 2.84 | |||||||||||||||
| IPLV(C) | 4.31 | 4.16 | 4 | 4.18 | 4.09 | 4 | 4.13 | 4.03 | 4.00 | 4.30 | |||||||||||||||
| IPLV(H) | 3.18 | 3.31 | 3.18 | 3.33 | 3.19 | 3.19 | 3.35 | 3.38 | 3.38 | 3.05 | |||||||||||||||
| Nominal HSPF | 3.44 | 3.15 | 3.22 | 3.28 | 3.14 | 3.11 | 3.55 | 3.51 | 3.24 | 2.90 | |||||||||||||||
| Nominal APF | 3.47 | 3.23 | 3.24 | 3.31 | 3.17 | 3.14 | 3.55 | 3.51 | 3.26 | 2.84 | |||||||||||||||
| Max. input power(kW) | 5.3 | 5.5 | 6.8 | 8.25 | 8.92 | 9.93 | 12.4 | 14.3 | 15.4 | 19.7 | |||||||||||||||
| Maximum input current (A) | 24.1 | 25 | 30.9 | 37.5 | 40.5 | 15 | 18.8 | 21.6 | 23.3 | 33.5 | |||||||||||||||
| Power | 220V~/50Hz | 380V/3N ~/50Hz | |||||||||||||||||||||||

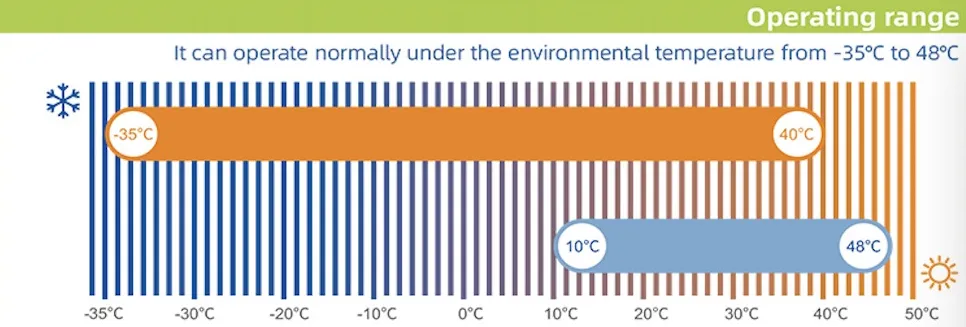

| Cooling operation temperature range | 10~48 | ||||||||||||||||||||||||
| Heating operation temperature range | -35~40 | ||||||||||||||||||||||||

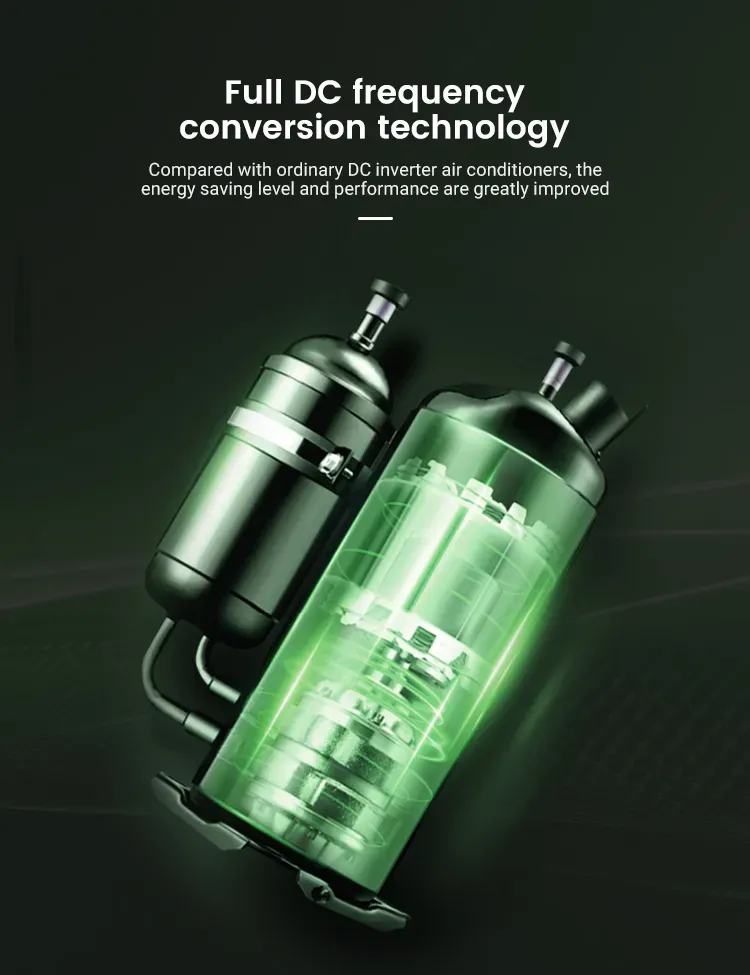

| Compressor | Type | DC inverter rotary compressor | |||||||||||||||||||||||
| Amount(Unit) | 1 | ||||||||||||||||||||||||
| Fan | Type | DC frequency fan | |||||||||||||||||||||||
| Amount(Unit) | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 1 | |||||||||||||||
| Rated power (W / Unit) | 100 | 100 | 170 | 100 | 100 | 100 | 170 | 170 | 170 | 920 | |||||||||||||||

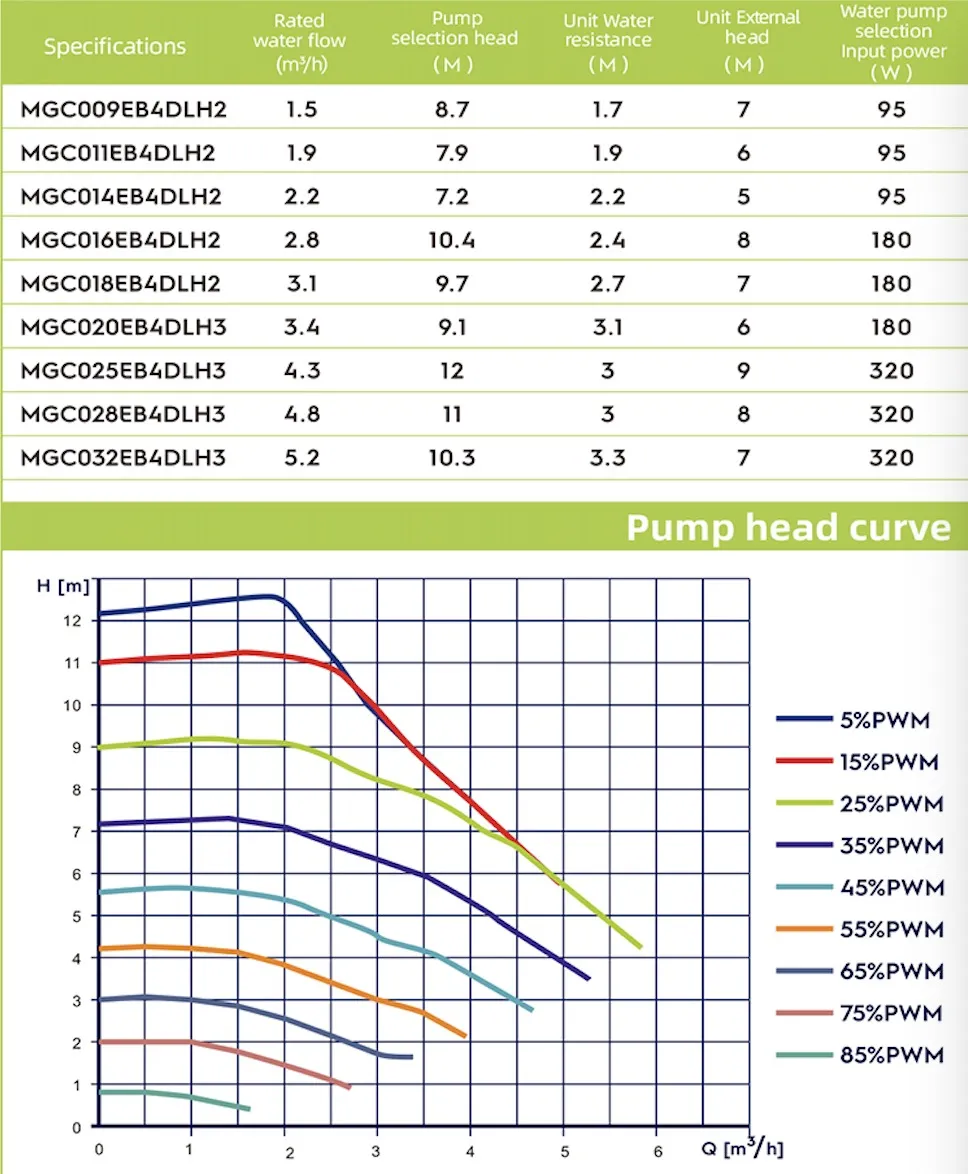

| Water pump | Rated power (W) | 0-95 | 0-180 | 0-320 | - | ||||||||||||||||||||
| Rated current (A) | 0.04-0.75 | 0.12-1.18 | 0.2-1.6 | - | |||||||||||||||||||||
| Water-side heat exchanger | Type | Brazed plate heat exchanger | |||||||||||||||||||||||
| Water flow rate（m³/h） | 1.5 | 1.9 | 2.2 | 2.8 | 3.1 | 3.4 | 4.3 | 4.8 | 5.2 | 6.9 | |||||||||||||||
| Unit water resistance(kPa) | 17 | 19 | 22 | 24 | 27 | 31 | 30 | 30 | 33 | 44 | |||||||||||||||
| Unit external head(m) | 7 | 6 | 5 | 8 | 7 | 6 | 9 | 8 | 7 | - | |||||||||||||||
| Unit inlet/outlet pipe connection size | DN25 | DN25 | DN25 | DN32 | DN32 | DN32 | DN32 | DN32 | DN32 | DN32 | |||||||||||||||
|
Designed maximum inlet/ outlet water temperature difference |
7 | 7 | 7 | 7 | |||||||||||||||||||||
| Operating weight (kg) | 102 | 107 | 110 | 124 | 124 | 133 | 178 | 187 | 187 | 250 | |||||||||||||||
| Gross weight (kg) | 100 | 105 | 108 | 122 | 122 | 131 | 175 | 184 | 184 | 246 | |||||||||||||||
| External dimensions (length x width x height mm) | 998x395x1024 | 998x395x1360 | 998x395x1570 | 1080x840x1670 | |||||||||||||||||||||
| Model NO. | MGC |
| Type | Cabinet Air Conditioner |
| Air Tube Material | Plastics |
| Corrosion Durability | Ultrahigh |
| Operating Voltage | 230 VAC |
| Noise Level | Ultra Quiet |
| Application Fields | Mechanical Engineering |
| Mounting | Floor Standing |
| Lifetime | >20 years |
| Certification | ISO, CE |
| Condition | New |
| Datad Haatinn Canactiv (W/) | 13/ |
| Ingle Gross Weight | 850.000kg |
| Selling Units | Single Item |
| Project Solution Capability | Others |
| Design Style | Modern, European |
| After-Sale Service | Online Technical Support, Onsite Installation, on |
| Feature | Easy Installation |
| Rated Heating Capacity (Kw) | 134 |
| Single Package Size | 210X109X239 Cm |
| Didnlu Inallic | Venleu |
| Trademark | Menred |
| Origin | Zhejiang, China |
| Production Capacity | 50000 PCS/Year |
