The MEN.APT-2X series of surface mounted thermostats are designed for use in underfloor heating systems, providing precise control over room temperature based on preset values. The thermostat detects when the temperature drops below the set value and activates the heating device to warm up the room. Once the desired temperature is reached, the thermostat will turn off the heating device to prevent overheating and conserve energy. The product is designed with simplicity and elegance in mind, making it perfect for any decor style.
Features
-LCD screen, clear display
-Weekly programmable, customize your own schedule
-Child lock, avoid misoperation from child

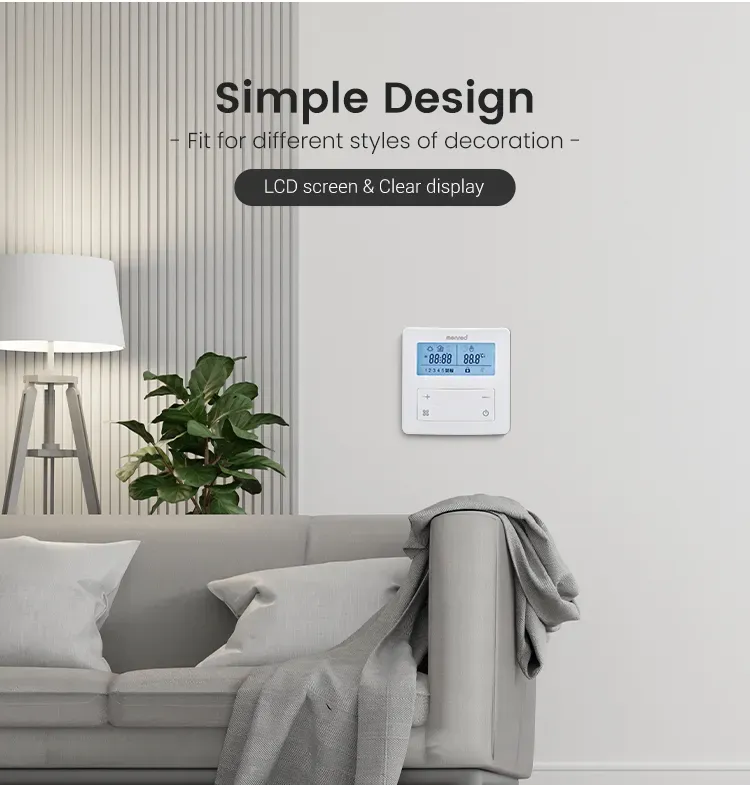

-Simple design, fit for different styles of decor
-Easy operation
Technical data
Voltage: AC230V
Consumption: <1W
Temperature range: Default 5-35℃
Temperature switch differential: Default 1℃(0.5-10℃adjustable)
Ambient temperature: 0-50℃
Protection class: IP20
Load capacity: 3A
Connecting cable: RVV0.5
Housing material: Anti-flame PC
Selection table
| Model | Current | Control method |
| MEN.APT-20 | 3A | built-in |
| MEN.APT-26 | 16A | built-in&floor sensor |
| Model NO. | APT-20 |
| Consumption | <1W |
| Selling Units | Single Item |
| Single Gross Weight | 0.300kg |
| Relay | 3A, 16A |
| Material | Anti-Flammable PC |
| Feature | Easy Installation |
| Connecting Cable | Rvvo.5 |
| Load Capacity | 3A |
| Protection Class | IP20 |
| Ambient Temperature | 0-50°C |
| Heating System | Electric, Hydronic |
| Voltage | 220V/230V |
| Temperature Range | Default 5-35°C |
| Housing Material | Anti-Flammable |
| Single Package Size | 8.6 x 8.6 x 1.3 cm |
| Transport Package | Carton |
| Trademark | Menred |
| Origin | Zhejiang, China |
| Production Capacity | 5000 pieces/Week |
|
Voltage:
|
AC 230V
|
|||
|
Consumption:
|
1W
|
|||
|
Temperature Range:
|
Default 5-35
|
|||
|
Temperature Switch Differential:
|
Default 1(0.5-10adjustable)
|
|||
|
Ambient Temperature:
|
0-50
|
|||
|
Protection Class:
|
IP20
|
|||
|
Load Capacity:
|
3A
|
|||
|
Connecting Cable:
|
RVV0.5
|
|||
|
Housing Material:
|
Anti-flame PC
|
|||
