Description
The MEN.APT-1X series of surface-mounted thermostats are designed for use in underfloor heating systems. These thermostats control the indoor temperature by taking into account the preset temperature values. If the room temperature drops below the set temperature, the thermostat switches on the heating device to warm up the room. Once the desired temperature is reached, the thermostat turns off the heating device to prevent overheating and conserve energy.

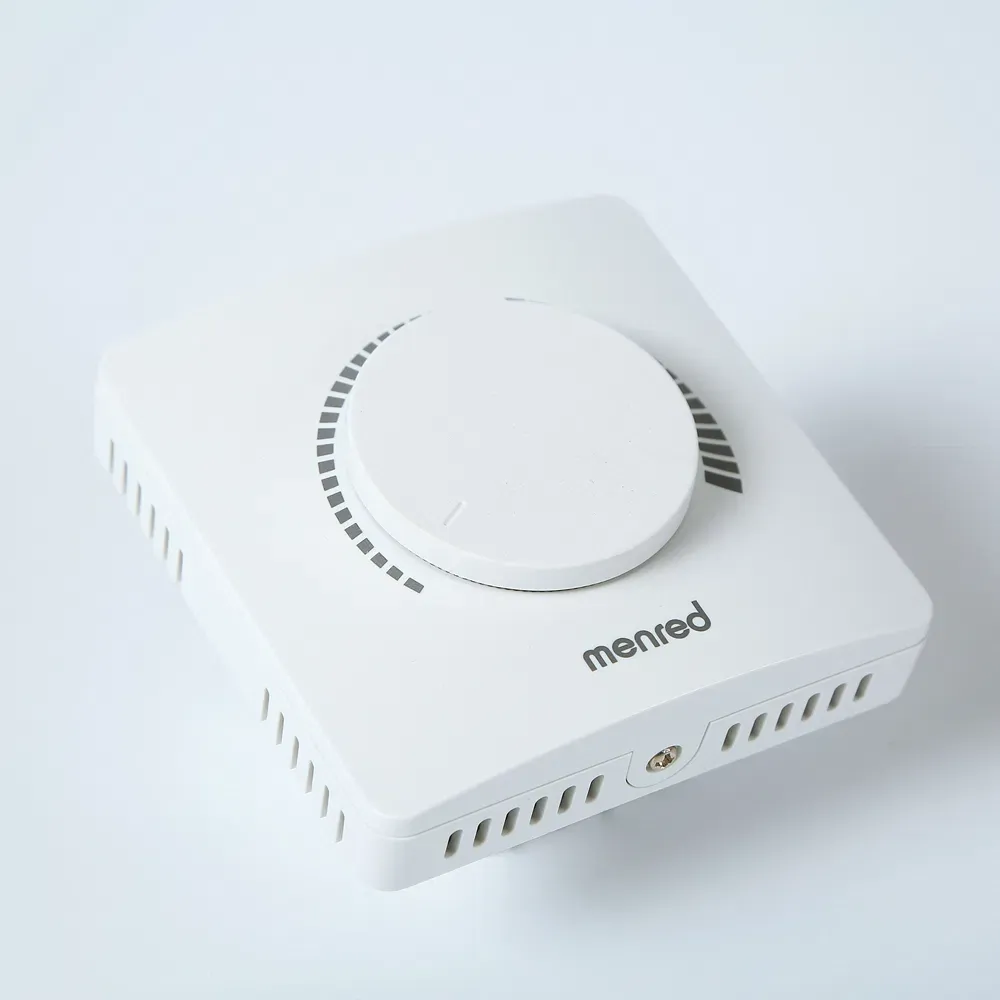

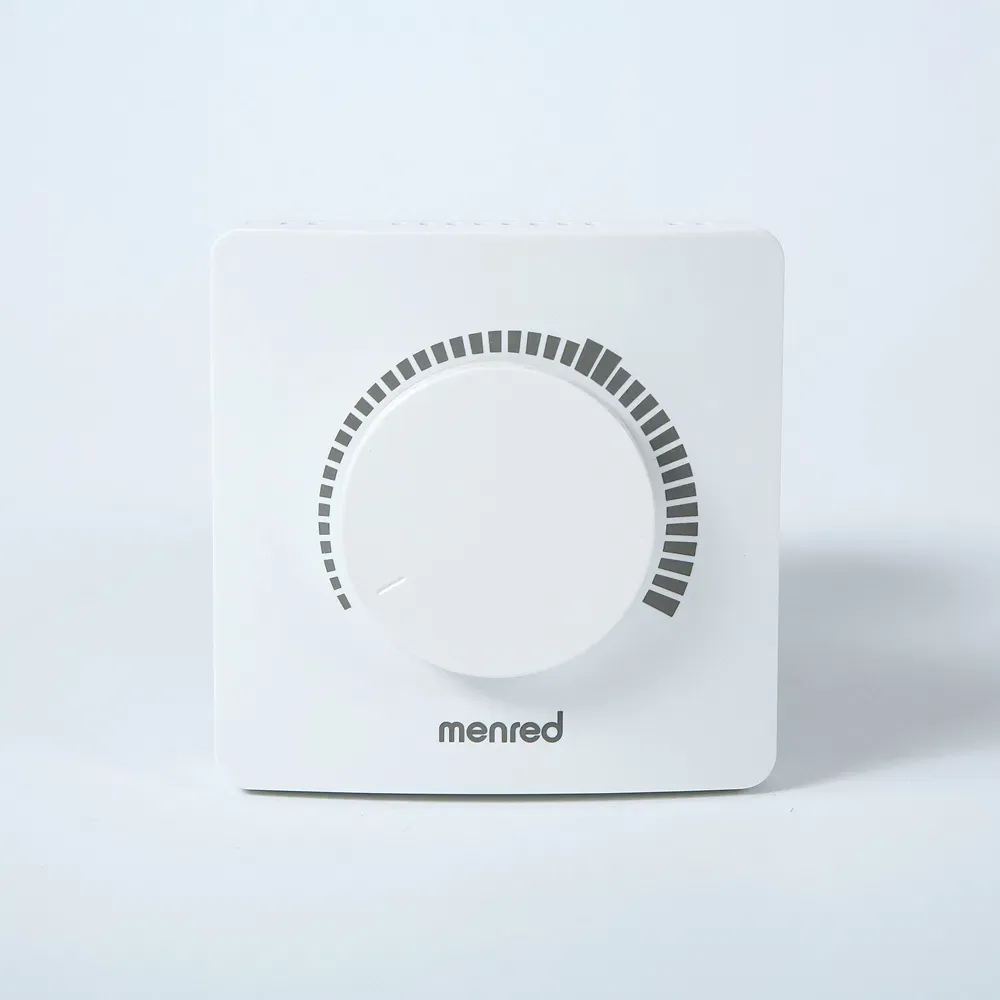

The thermostat offers multiple options for controlling the indoor temperature, including through the built-in sensor, floor sensor, or a combination of both. The desired temperature can be easily set by rotating the knob on the panel, with a range of 10℃ to 35℃. When the heating is on, an annular red indicator lights up. The product design is simple and elegant, making it suitable for any style of decor.
Technical data
Voltage: 230V
Consumption: <2W
Temperature Range: 12~35℃
Temperature switch differential: Default 1℃
Ambient temperature: 0~50℃
Protection class: IP20
Connecting Cable: RVV0.5
Housing material: PC ABS
Selection table
| Model | Current | Control method |
| MEN.APT-10 | 3A | built-in |
| MEN.APT-16 | 16A | built-in&floor sensor |
Notice
1. The installation must be done after power off.
2. Please connect wires strictly according to the wiring diagram.
3. It is recommended that the installation height should be 1.4m
or be in the same level of other wall switches.
4. If the thermostat displays Er0, the built-in sensor is in breakdown; if the thermostat displays Er1, external sensor is in breakdown.
5. Do not install the thermostat in a non-ventilated position, such
as in the corner, behind the door etc.
6. Do not install the thermostat in a place with strong airflow or
near the cold or heat source.
7. Do not let the water, cement paste, metal particles and other
debris into the thermostat. These will damage the thermostat.
FLOOR HEATING THERMOSTAT
The floor heating system thermostat is an intelligent device used to control the operation of the floor heating system. It monitors the indoor temperature and the operating status of the floor heating system in real time through built-in sensors, and automatically adjusts the switch and power output of the floor heating according to the target temperature set by the user. The thermostat is the core component of the floor heating system, which can ensure that the indoor temperature remains within a comfortable range while optimizing energy utilization efficiency.| TECHNICAL PARAMETERS | |
| Product Name | Thermostat |
| Keywords | Thermostat & Temperature Controller |
| Model | APT-116 |
| Voltage | 230V |
| Comsumption | <2W |
| Temperature Range | 12-35ºC |
| Temperature Switch Differential Default | 1ºC |
| Ambient Temperature | 0-50ºC |
| Protective Housing | IP20 |
| Connecting Cable | RVV0.5 |
| Housing Material | PC ABS |
| OEM & ODM Custom | Accept |
| LOGO Custom | Accept |
| Sample | Accept |
| Payment | T/T, L/C, Western Union |
| MOQ | Low MOQ |
ENERGY-SAVING AND EFFICIENT
By precisely controlling the operating time and temperature of the floor heating system, unnecessary energy waste is avoided. For example, the timing function can automatically turn off the floor heating during unattended periods, or appropriately lower the temperature at night, thereby significantly reducing energy consumption and saving electricity or gas bills.
ACCURATE TEMPERATURE CONTROL
The use of high-precision sensors can monitor the indoor temperature in real time and accurately adjust it according to the target temperature set by the user. The temperature control accuracy can usually reach within ±0.5ºC, ensuring that the indoor temperature is always within a comfortable range and avoiding excessive temperature fluctuations.
INTELLIGENT CONTROL
It has a variety of intelligent functions, such as timing control, time-sharing, partition control, and intelligent learning. Users can set temperature control strategies in advance according to their living habits, and the thermostat will automatically execute without frequent manual adjustments.
IMPROVE COMFORT
Users can set personalized temperature plans according to the usage needs and activity times of different rooms. For example, the bedroom can lower the temperature at night to maintain a comfortable sleeping environment, and the living room can appropriately increase the temperature during the day to meet activity needs. This partition control function can meet the comfort needs in different scenarios.
EXTEND EQUIPMENT LIFE
Reasonably control the operating time and power output of the floor heating system to avoid long-term full-load operation of the equipment, thereby reducing equipment wear and extending the service life of the floor heating system. At the same time, the thermostat can also monitor the system operation status in real time, detect abnormal conditions in time, and remind users to perform maintenance to ensure long-term stable operation of the system.
