Description
A9 menred underfloor heating manifolds is designed to optimally control the flow and distribution of water from the heat source (eg. boiler, heat pump) to each underfloor pipe circuit. Be composed of water separator and water collector, water separator connect with inlet pipe, equipped with built -in balancing valves. Water collector connect with returned pipe, equipped with shut-off valves. Superior manifolds is the heart of hydronic underfloor system, it will enable you to individually control the different zones of your heating system, which can not only save the energy and money, but also achieve working perfectly without maintenance. Menred underfloor heating manifolds go through 100% leakage detection of underwater gas pressurized test from 0.6-0.8 MPa before handover, to ensure total durability and reliability.
A9 underfloor heating manifolds key features
> High density forging brass body
> No leakage technology
> Nature color, surface anti-corrosion processing
> Outlets in composite with the main body to exterminate the leakage possibility of manifolds
> Axial static seal technology
> 100% leakage detection
> Easy installation
Quality control
1. High density forging brass body
2. 100% leakage detection underwater gas pressurized test: 0.6-0.8MPa
3. No leakage technology
4. Anti-oxidation technology
Notice
1. A9 underfloor heating manifolds must be installed by the professional plumbing & heating company
2. When install by non-professional without warranty
Specification
| Material | High-grade brass |
| Operating pressure | PN10 |
| Medium temperature | Water 1-110 ℃ |
| Main pipe diameter | DN 32 |
| Manifold distance | 50 mm |
| Connection | G1" |
| Control Interface | M30X1.5mm, stroke: 3mm(11-14) |

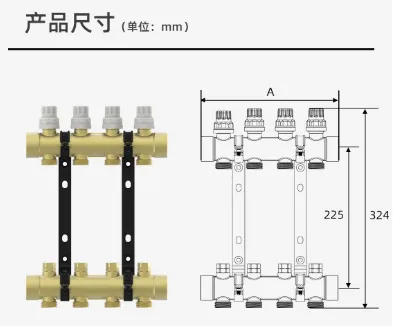

Selection Table
| Model | Specification | Width(mm) | Height(mm) |
| A902 | 2-loop underfloor heating manifolds | 122 | 317 |
| A903 | 3-loop underfloor heating manifolds | 172 | 317 |
| A904 | 4-loop underfloor heating manifolds | 222 | 317 |
| A905 | 5-loop underfloor heating manifolds | 272 | 317 |
| A906 | 6-loop underfloor heating manifolds | 322 | 317 |
| A907 | 7-loop underfloor heating manifolds | 372 | 317 |
| A908 | 8-loop underfloor heating manifolds | 422 | 317 |
| A909 | 9-loop underfloorl heating manifolds | 472 | 317 |
| A910 | 10-loop underfloor heating manifolds | 522 | 317 |
