Description

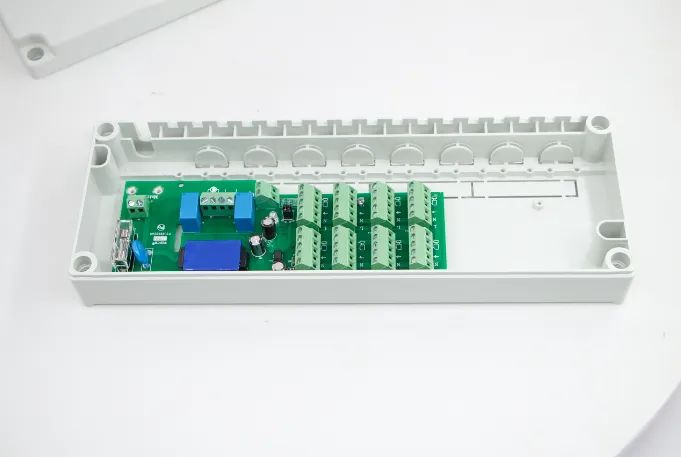

Menred central heating wiring center box H-Box is designed to simplify the wiring of central heating installations. It offers a safe and convenient way to connect electro-thermal actuators to the room thermostats in the hydraulic floor heating system, the thermostats without potential-free linkage is fine for the heat sources, like boiler and heat pump.

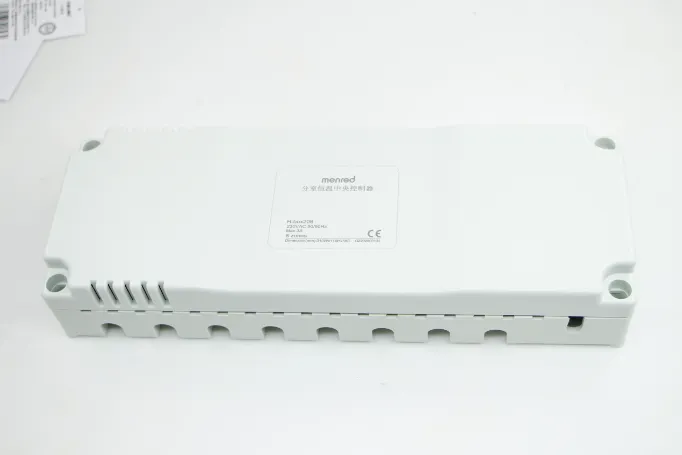

This flame-retardant plastic box features a spacious design with simplifies installations, which can make circuit checking easier. Mould box complete with lid, ideal for central heating control wiring.
H-Box central heating wiring center key features
> Apply to the room constant temperature control system
Quality control
1. dust free workshop
2. 100% detection
Notice
1. H-Box central heating wiring center must be installed by the professional plumbing & heating company
2. When install by non-professional without warranty
Specification
| Supply voltage | 230V AC, 50Hz |
| Output voltage | 230V AC, 50Hz |
| Max. load | 4A |
| Number of zone outputs | 8 zones, 12 zones |
| Potential-free outputs | one relay for boiler, one reply for pump |
| Dimension (mm) | 310 w X 110 h X 58 d |
Selection table
| Model | Supply voltage | Output voltage | loops |
| H-Box 208 | 230 V | 230 V | 8 |
| H-BOX 212 | 230 V | 230 V | 12 |
| Attribute | Value |
|---|---|
| Model NO. | H-box208 |
| Heating Type | Water Heating Systems |
| Single Gross Weight | 0.848 Kg |
| Max Load | 4A |
| Material | Anti-Flammable PC |
| Dimension | 310W * 110H * 58D (mm) |
| Supply Voltage | AC230V, 50Hz |
| Output Voltage | AC230V, 50Hz |
| Application | Apartment |
| Transport Package | Carton |
| Trademark | menred |
| HS Code | 3926909090 |
| Certification | TUV, ISO9001, ROHS, CE |
| Number of Zone Outputs | 8 Zones |
| Certifications | CE |
| Single Package Size | 40 x 29 x 37 cm |
| Project Solution Capability | Total Solution for Projects |
| Supply Ability | 1000 Piece/Pieces Per Day |
| Type | Floor Heating Systems |
| After-Sale Service | Online Technical Support |
| Potential-Free Outputs | One Relay for Boiler, One Relay for Pump |
| Specification | 0.848kg |
| Origin | Zhejiang, China |
| Production Capacity | 1000 Pieces/ Week |
