FEATURES

Item	Specification
Material	Brass (HPb59)
Nominal Pressure	PN10
Conveying Medium	Water quality shall comply with the provisions of the current national standard GB/T 1576 Water Quality of Industrial Boilers
Medium Temperature	5 - 95℃
Main Pipe Diameter	DN25
Distance Between Branch Pipes	50mm
Connection Port	One end with G1'' external thread, one end with G1'' internal thread
Control Valve	Connected to CS20.23 waterproof actuator, stroke 4mm (12 - 16)

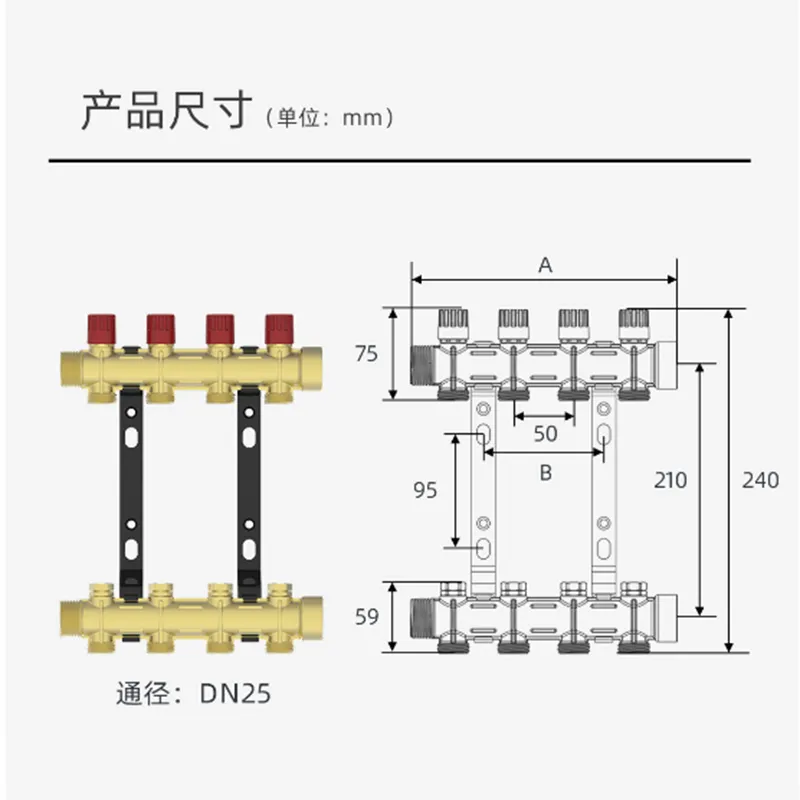

Specification	Model	Dimension A	Dimension B
2-way Water Collector/Distributor	CS25.S2	120	-
3-way Water Collector/Distributor	CS25.S3	170	50
4-way Water Collector/Distributor	CS25.S4	220	100
5-way Water Collector/Distributor	CS25.S5	270	150
6-way Water Collector/Distributor	CS25.S6	320	200
7-way Water Collector/Distributor	CS25.S7	370	250
8-way Water Collector/Distributor	CS25.S8	420	300
