FEATURES

Parameter	Description
Material	PPA
Nominal Pressure	PN10
Transport Medium	Water quality shall comply with the existing national standard Industrial Boiler Water Quality GB/T 1576
Medium Temperature	5 - 95°C
Main Pipe Diameter	Section Φ35mm
Branch Pipe Distance	50mm
Ball Valve Port	G1" (1 - inch external thread)
Actuator Operating Voltage	220V 50Hz
Valve Opening Time	3 - 5min
Actuator Driving Mode	Valve stem and driver buckle connected body
Actuator Ambient Temperature	-5 - 50°C

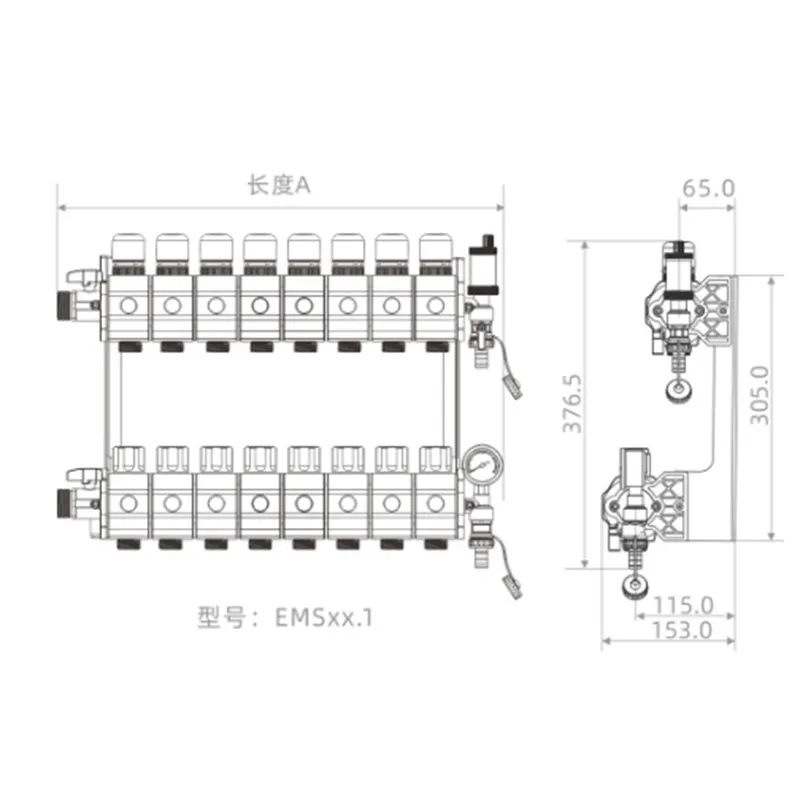

Model	Length A	Model	Length A
EMS03.1	260mm	EMS07.1	460mm
EMS04.1	310mm	EMS08.1	510mm
EMS05.1	360mm	EMS09.1	560mm
EMS06.1	410mm	EMS10.1	610mm
