The MENRED EN series brass manifold is intended for water-based underfloor heating distribution. The current selection table covers EN2–EN6, including the five-circuit EN5 model. Check the required circuit count, connections and installation space when selecting a model.
| Parameter | Specification |
|---|---|
| Material | Brass, HPb59 |
| Nominal pressure | PN10 |
| Medium temperature | 5–95°C |
| Main manifold size | DN25 |
| Outlet spacing | 50 mm |
| Listed connection | 1-inch male thread |
| Actuator mounting thread | M30 × 1.5 mm |
| Valve stroke | 3 mm |

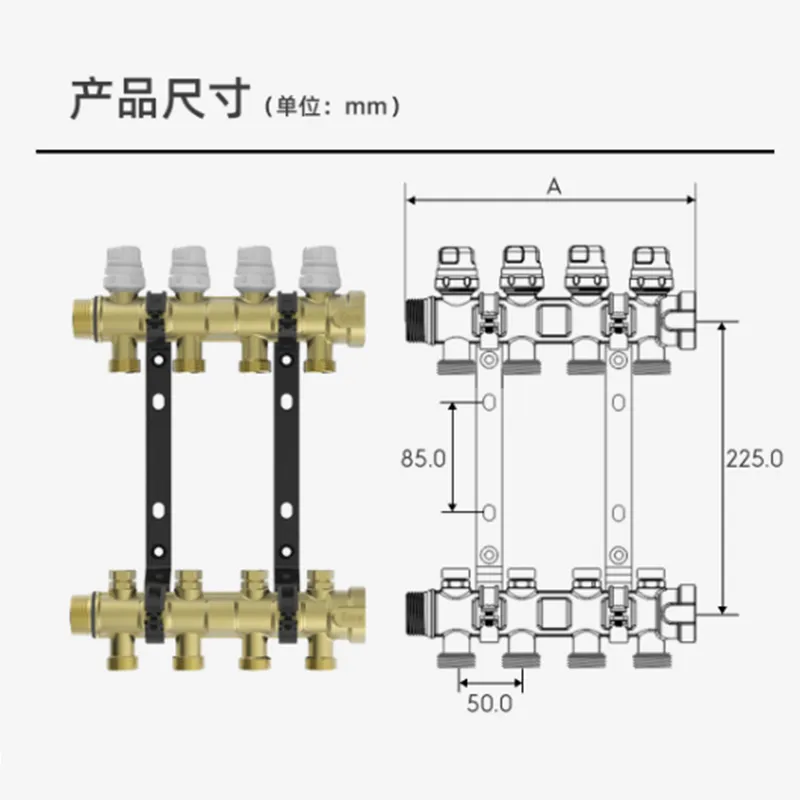

| Model | Circuits | Dimension A (mm) |
|---|---|---|
| EN2 | 2 | 122.5 |
| EN3 | 3 | 172.5 |
| EN4 | 4 | 222.5 |
| EN5 | 5 | 272.5 |
| EN6 | 6 | 322.5 |
Dimension A is the dimension listed in the model selection table. Confirm the complete assembly dimensions, including selected fittings and controls, before planning the installation space.
Select the circuit count according to the heating system design. Before ordering, confirm heating pipe dimensions, connector requirements, actuator compatibility and the complete supply configuration.
The mounting thread alone does not establish actuator compatibility. Valve geometry and required operating travel must also be checked. Installation and commissioning should be carried out by a qualified heating professional.
Explore MENRED’s manifolds and wiring centers to discuss related system options.
Send MENRED your required model, quantity, pipe dimensions and control requirements.
Contact MENREDUse the heating system design to determine the number of circuits. A room may require more than one circuit.
Check the mounting thread, valve geometry and required operating travel against the selected actuator specifications.
Confirm the complete supply configuration in the quotation, including connectors, valves, actuators and any other required accessories.
