Yi.N menred heating manifolds is designed to optimally control the flow and distribution of water from the heat source (eg. boiler, heat pump) to each underfloor pipe circuit. Be composed of water separator and water collector, water separator connect with inlet pipe, equipped with built -in balancing valves. Water collector connect with returned pipe, equipped with shut-off valves. The manifolds will enable you to individually control the different zones of your heating system, which not only allows you to control the comfort level in your home, but can also help you avoid wasting energy that heating rooms that are not in use. Superior manifolds is the heart of hydronic underfloor system, which can not only save the energy and money, but also achieve working perfectly without maintenance. Menred manifolds go through 100% leakage detection of underwater gas pressurized test from 0.6-0.8 MPa before handover, to ensure total durability and reliability.
The Yi.N underfloor heating manifolds come with a range of features designed for optimal performance, including:
Please note the following regarding the installation of Yi.N manifolds:
The installation of Yi.N manifolds should be performed by a professional plumbing and heating company. This ensures that the system is installed correctly and in accordance with all relevant safety guidelines and regulations.
If the Yi.N manifolds are installed by non-professionals, the warranty may be voided. It is important to have the system installed by professionals to ensure that everything is correctly installed, and the system will function as expected.
By following these guidelines, you can ensure that your Yi.N manifold system is installed and operates correctly, and that you can benefit from all of its advanced features and benefits.
Specification
| Material | High-grade brass |
| Operating pressure | PN10 |
| Medium temperature | 5-95℃ |
| Main pipe diameter | DN 25 |
| Manifold distance | 50 mm |
| Connection port | 1 inch external thread in the front, 1 inch internal thread in the terminal |

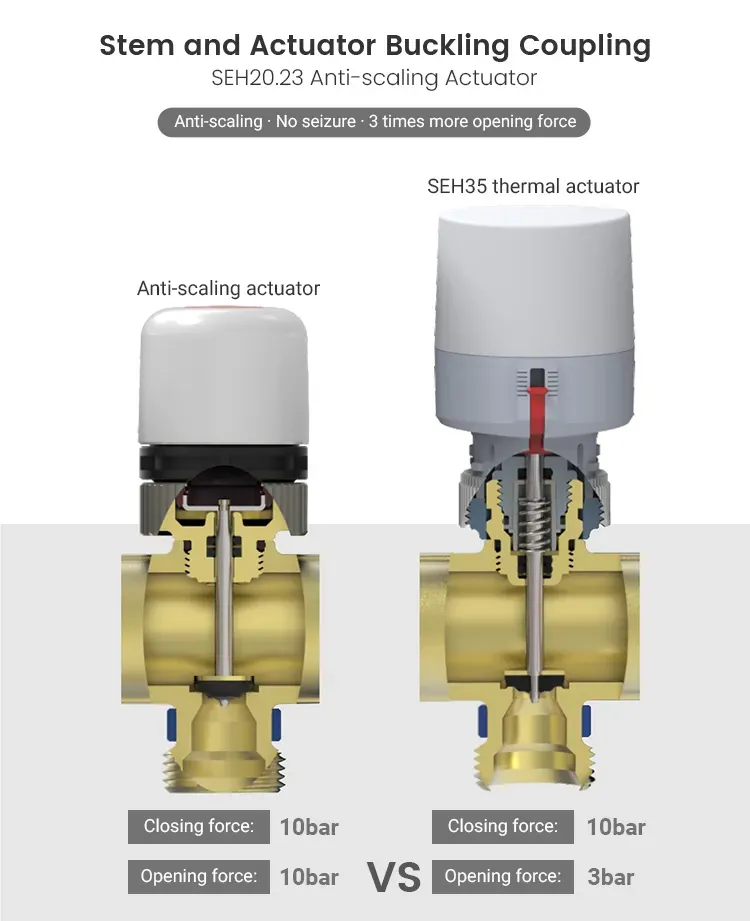

| Control Interface | M30X1.5 mm, stroke: 3 mm (11-14) |

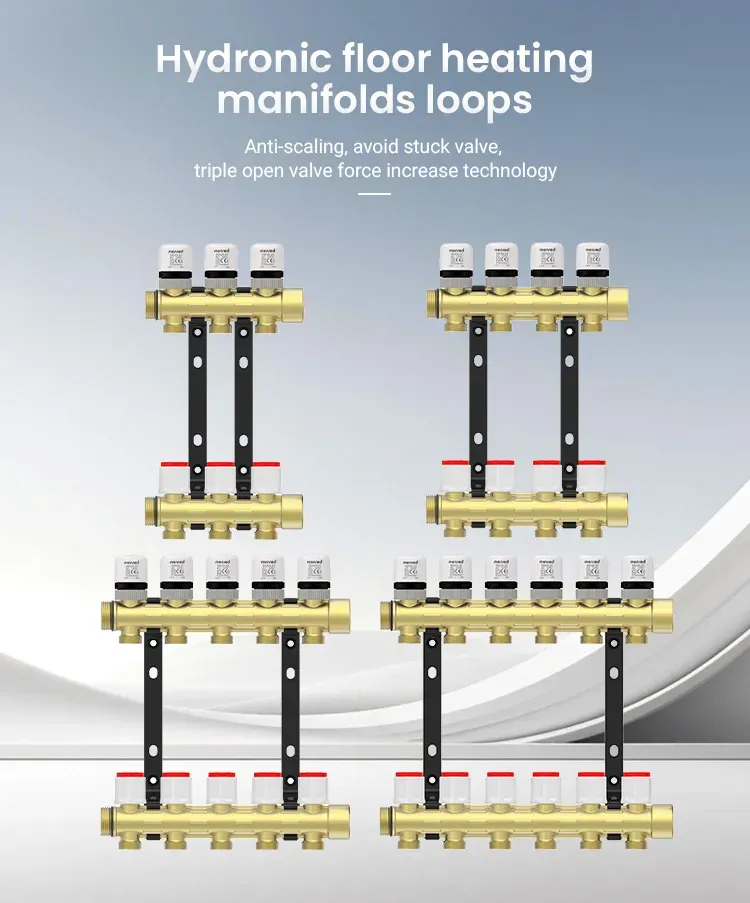

| Loop | 2-8 loop available |

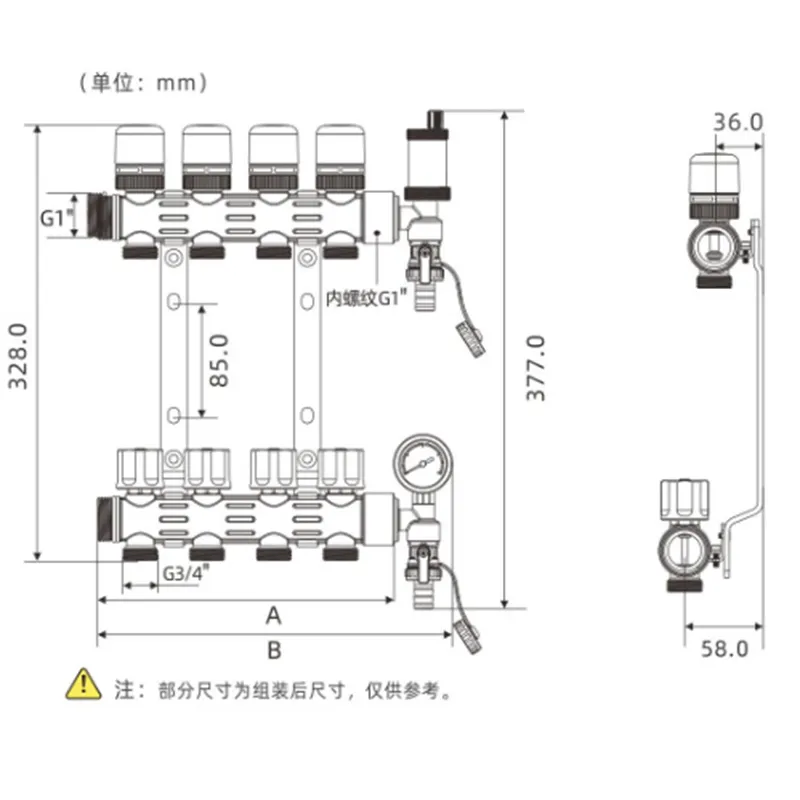

Selection Table
| Model | Specification | Width A(mm) | Height(mm) |
| Yi.N1 | 1-loop dual adjusting heating manifolds | 72 | 317 |
| Yi.N2 | 2-loop dual adjusting heating manifolds | 122 | 317 |
| Yi.N3 | 3-loop dual adjusting heating manifolds | 172 | 317 |
| Yi.N4 | 4-loop dual adjusting heating manifolds | 222 | 317 |
| Yi.N5 | 5-loop dual adjusting heating manifolds | 272 | 317 |
| Yi.N6 | 6-loop dual adjusting heating manifolds | 322 | 317 |
| Yi.N7 | 7-loop dual adjusting heating manifolds | 372 | 317 |
| Yi.N8 | 8-loop dual adjusting heating manifolds | 422 | 317 |
| Attribute | Value |
|---|---|
| Model NO. | YI. N |
| Connection | G1 |
| Material | Brass |
| Design Style | Modern |
| After-Sale Service | Online Technical Support |
| Control Interface | M30*1.5mm (Stroke 3mm 11-14) |
| Product Name | Underfloor Heating Manifolds |
| Application | Apartment |
| Origin | Zhejiang, China |
| Manifold Distance | 50 mm |
| Main Pipe Diameter | DN25 |
| Project Solution Capability | Total Solution for Projects, Others |
| Loops | 2-8 Loops Optional |
| Operating Pressure | Pn10 |
| Type | Floor Heating Systems |
| Medium Temperature | Water 5-95°C |
| Trademark | Menred |
| Production Capacity | 50000 PCS/Year |
|
Material
|
High-grade brass
|
|
|
|
|||
|
Operating pressure
|
PN10
|
|
|
|
|||
|
Medium temperature
|
5-95
|
|
|
|
|||
|
Main pipe diameter
|
DN25
|
|
|
|
|||
|
Manifold distance
|
50 mm
|
|
|
|
|||
|
Connection Port
|
1 inch external thread in the front; 1 inch interal thread in the terminal
|
|
|
|
|||
|
Control interface
|
M30X1.5 mm, stroke: 3mm (11-14
|
|
|
|
|||
|

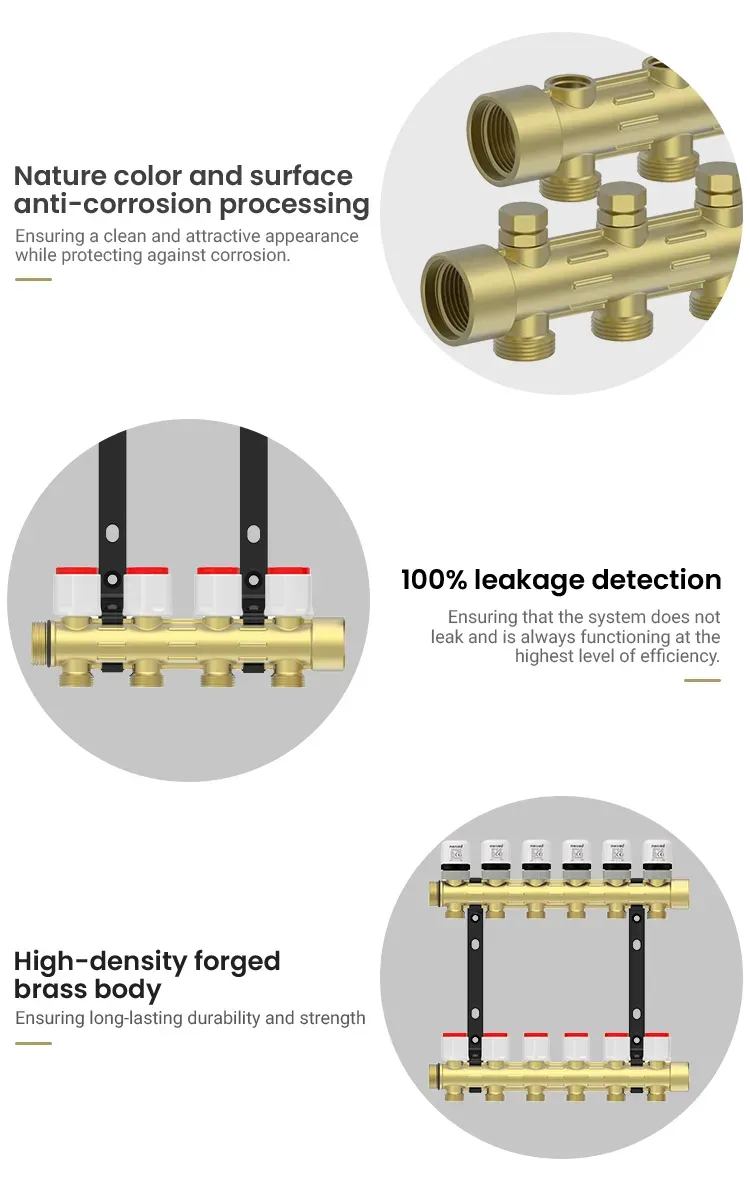

Detection
|
100% leakage detection
|
|
|
|
|||
