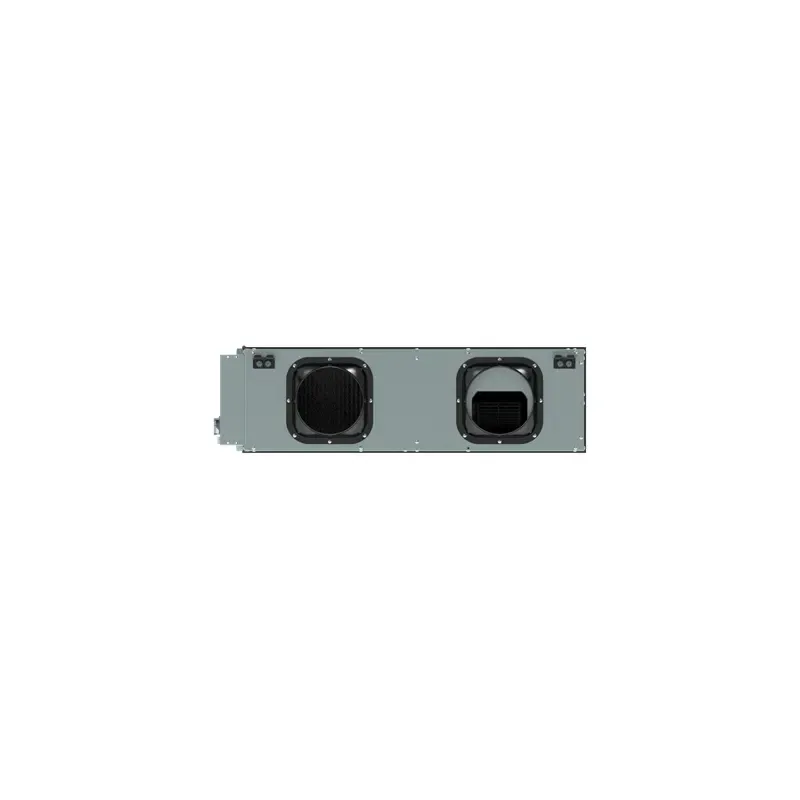

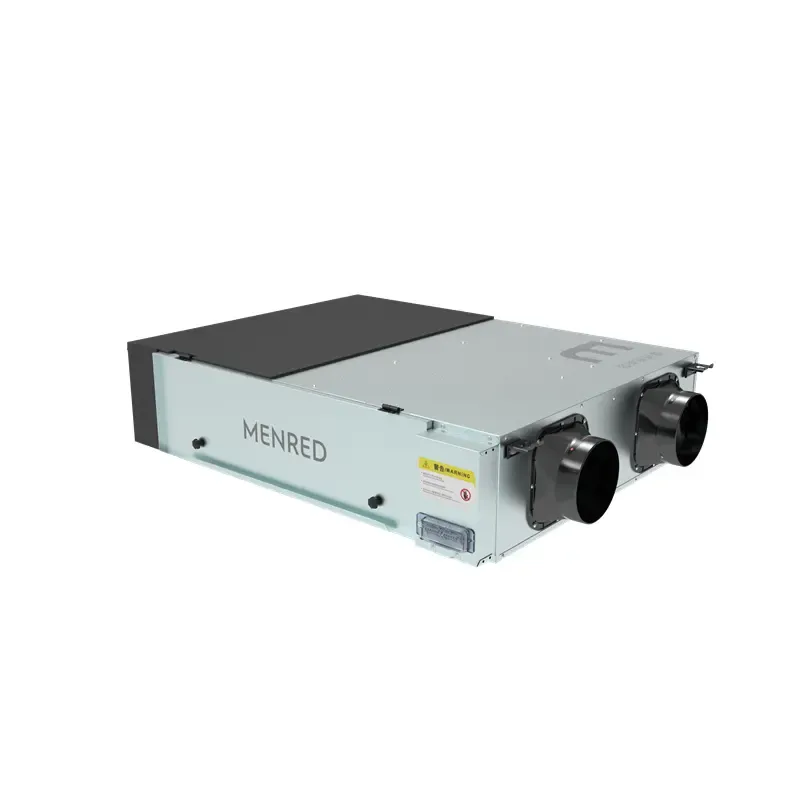

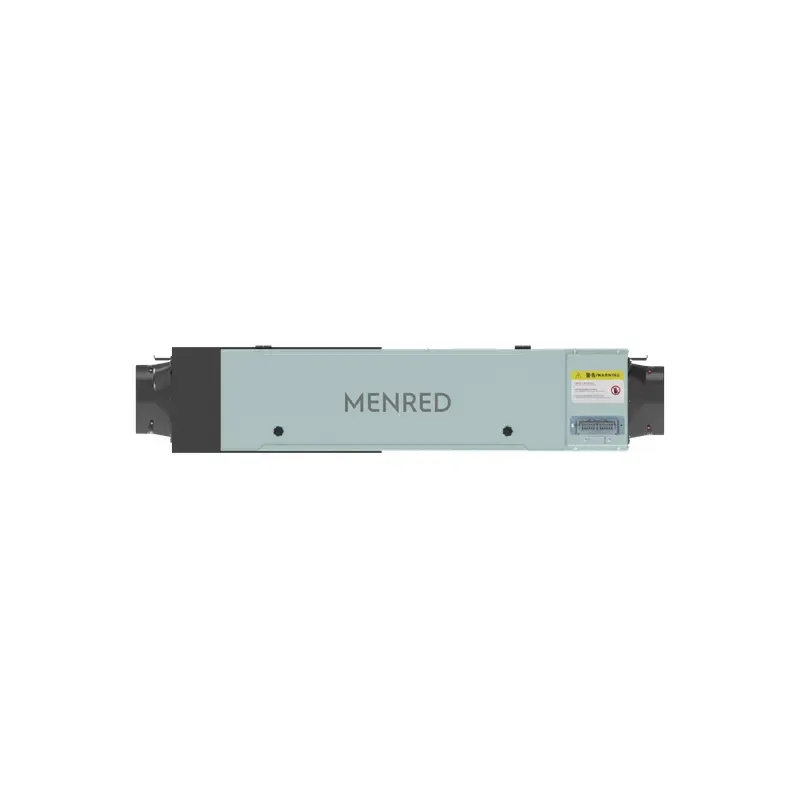

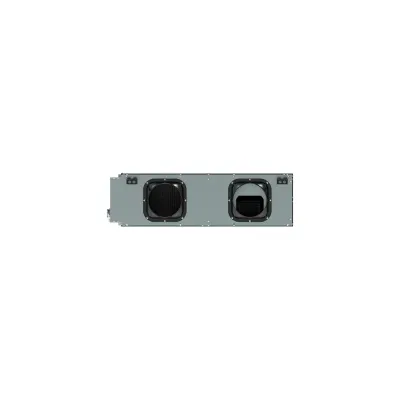

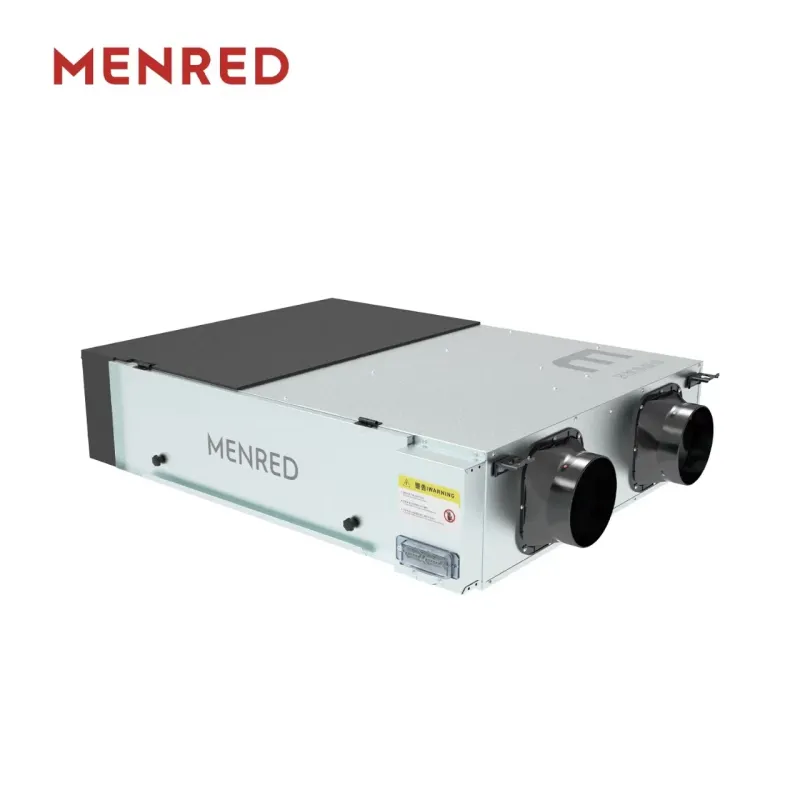

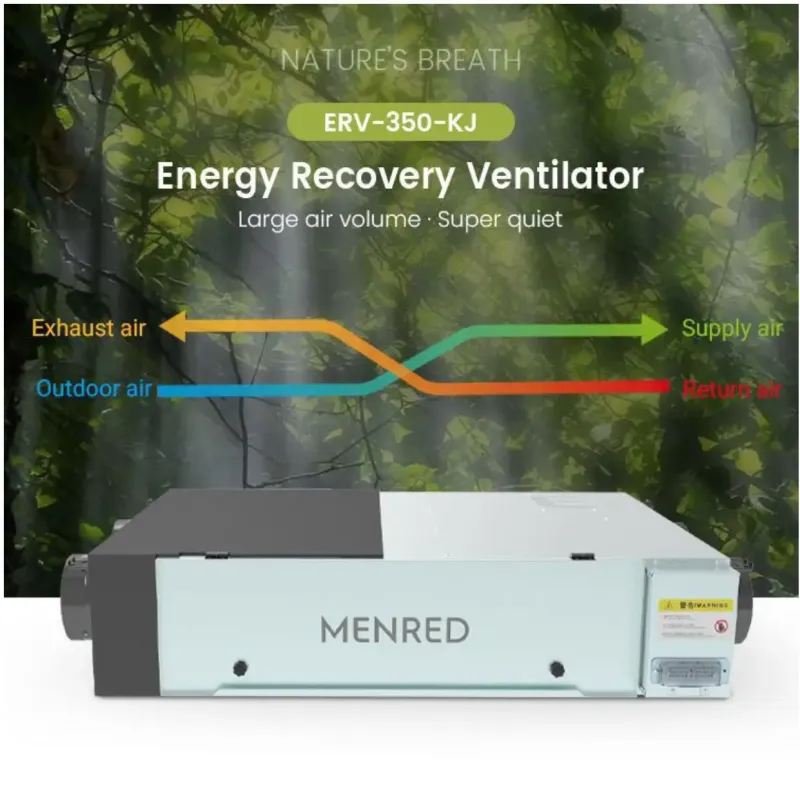

The MENRED E8 is a ceiling-mounted residential ERV with an integrated bypass function. It has a rated airflow of 350 m³/h and a maximum airflow of 450 m³/h. The unit combines G4 HEPA filtration with Toray filter media and DC fans. When outdoor conditions are suitable, fresh air can bypass the heat exchanger to support natural cooling. Its 240 mm body height supports concealed ceiling installation.
When outdoor conditions are suitable, fresh air can bypass the heat exchanger to support natural cooling and reduce unnecessary heating or cooling loads.
The E8 uses G4 HEPA filtration with Toray filter media. The product specification lists 97% PM2.5 filtration.
The unit has a rated airflow of 350 m³/h and a maximum airflow of 450 m³/h. The product page lists an applicable area of up to approximately 200 m².
The E8 uses a DC fan, with a listed rated power of 108 W and maximum power of 220 W.
The listed static pressure is 95 Pa on the supply side and 85 Pa on the exhaust side.

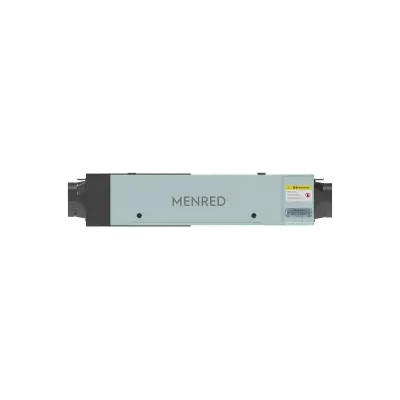

The 240 mm-high body supports concealed installation above the ceiling. A touch-screen controller and air-quality sensor are listed as optional accessories.
| Specification | Details |
|---|---|
| Model | E8 |
| Type | Ceiling-mounted full heat recovery ventilator |
| Power supply | 220–240 V~ 50/60 Hz |
| Rated airflow | 350 m³/h |
| Maximum airflow | 450 m³/h |
| Maximum / rated power | 220 W / 108 W |
| Motor / fan | DC fan |
| Supply static pressure | 95 Pa |
| Exhaust static pressure | 85 Pa |
| Heating efficiency | 74.5% |
| Cooling efficiency | 65.5% |
| Fresh air volume | 335 m³/h |
| Fresh air ratio | 96% |
| Filter | G4 HEPA |
| Filter media | Toray |
| PM2.5 filtration | 97% |
| Noise | 36 dB(A) |
| Fresh air energy consumption | 0.31 W/(m³/h) |
| Applicable area | Up to approximately 200 m² |
| Operating temperature | −10°C to 50°C |
| Optional accessories | Touch-screen controller / air-quality sensor |

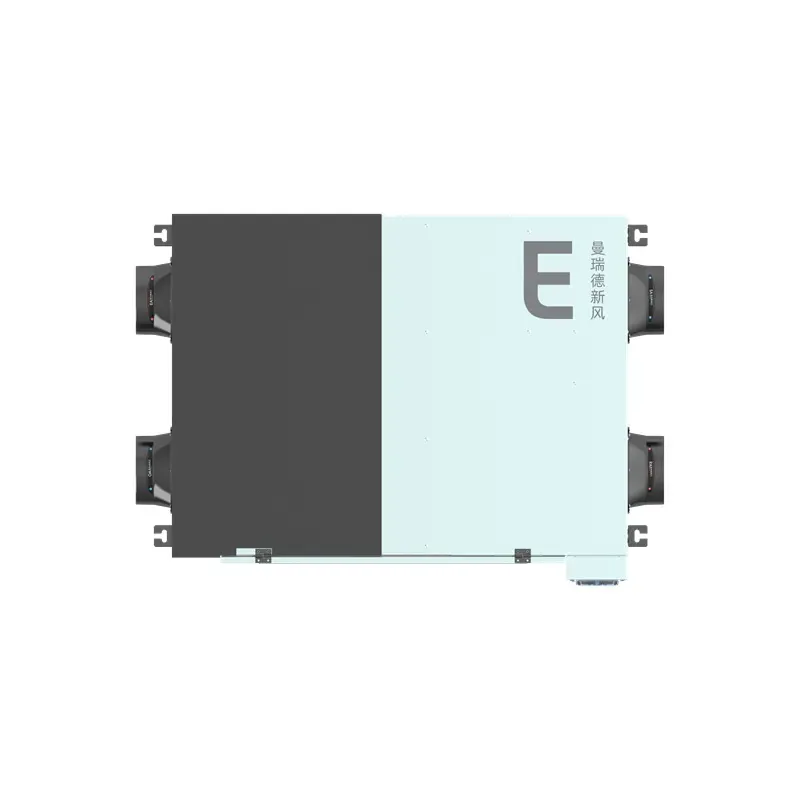

| Product dimensions | 1220 × 785 × 240 mm |
| Weight | 45 kg |
The rated airflow is 350 m³/h, and the maximum airflow is 450 m³/h.
Yes. The E8 has an integrated bypass function. When outdoor conditions are suitable, fresh air can bypass the heat exchanger to support natural cooling.
The listed filter combination is G4 HEPA with Toray filter media. The product specification lists 97% PM2.5 filtration.
The listed optional accessories are a touch-screen controller and an air-quality sensor.
The product dimensions are 1220 × 785 × 240 mm, and the listed weight is 45 kg.
The product information lists an applicable area of up to approximately 200 m².
