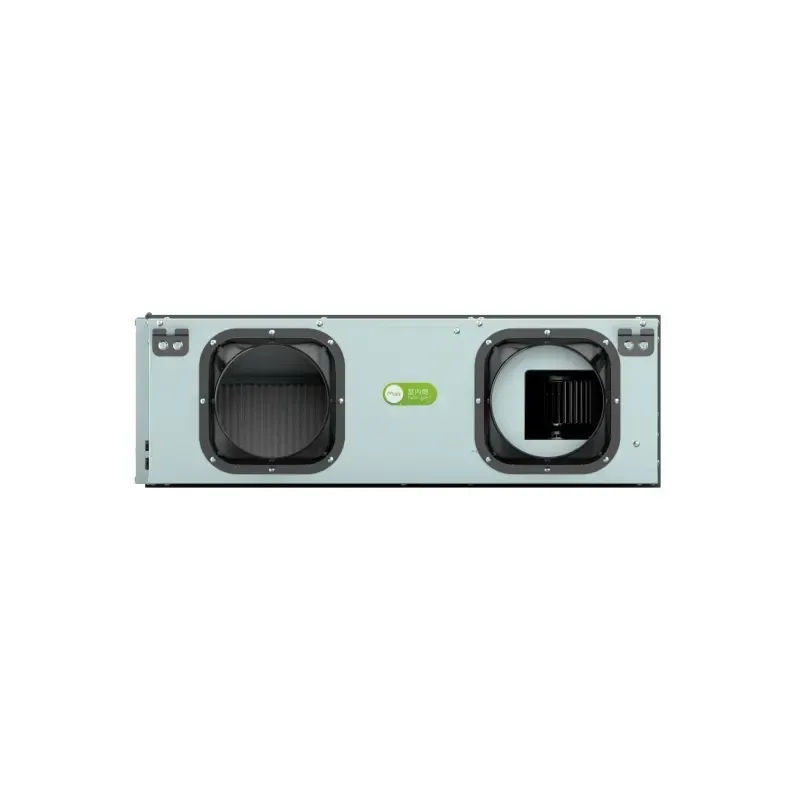

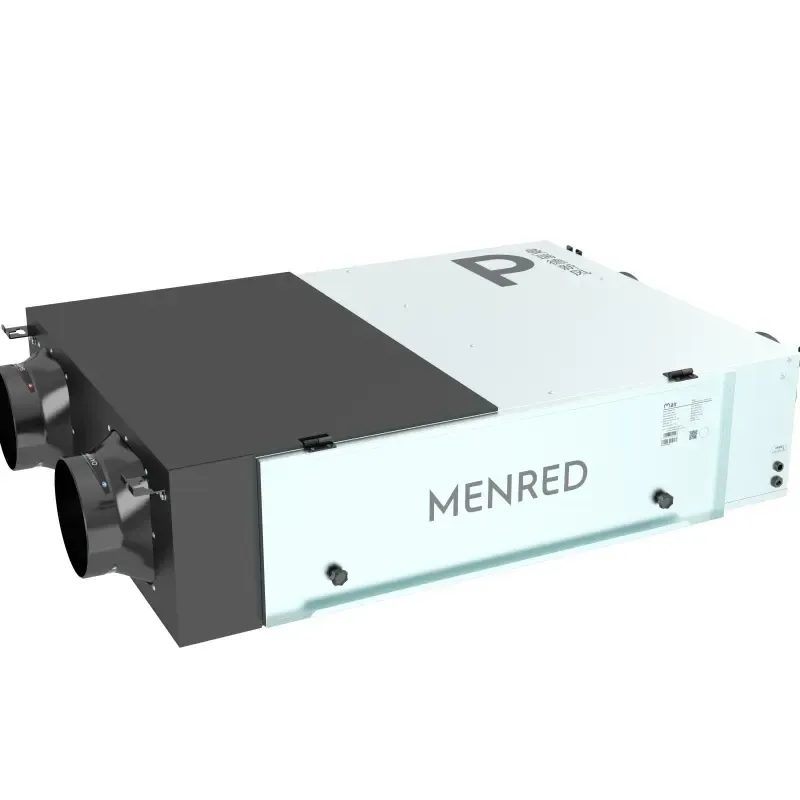

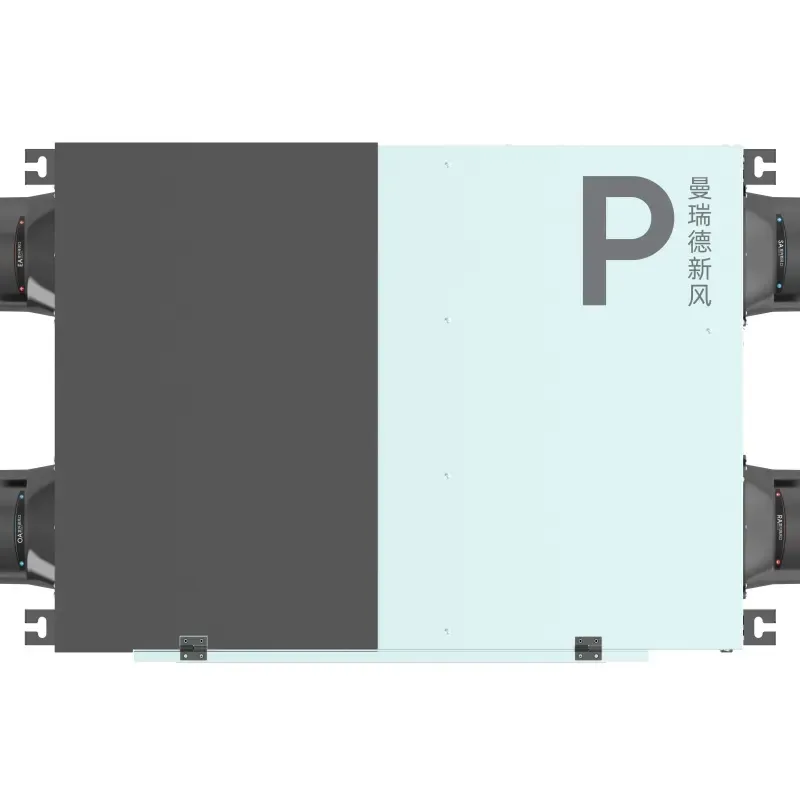

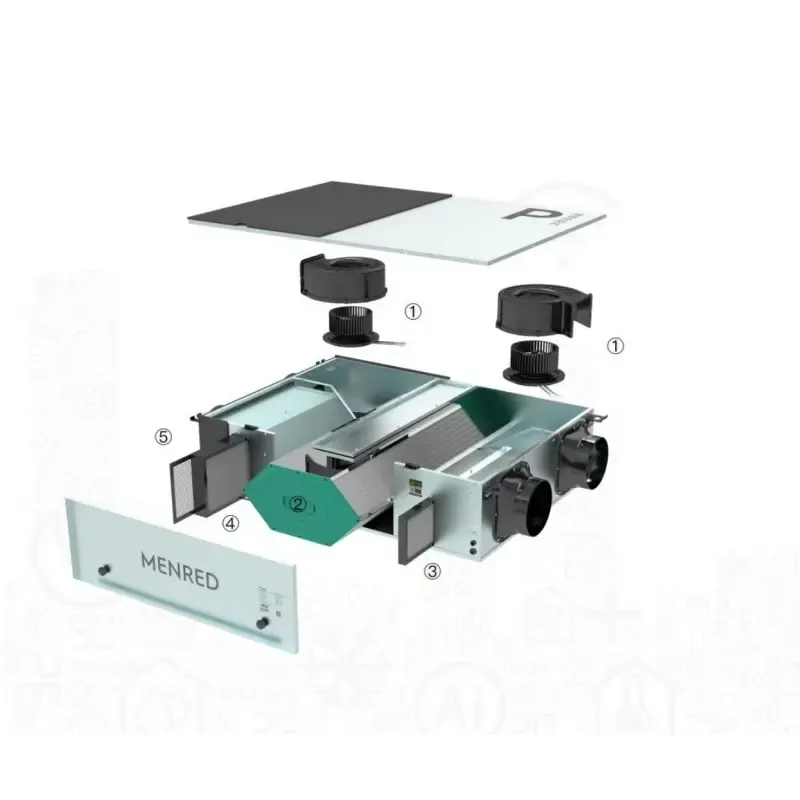

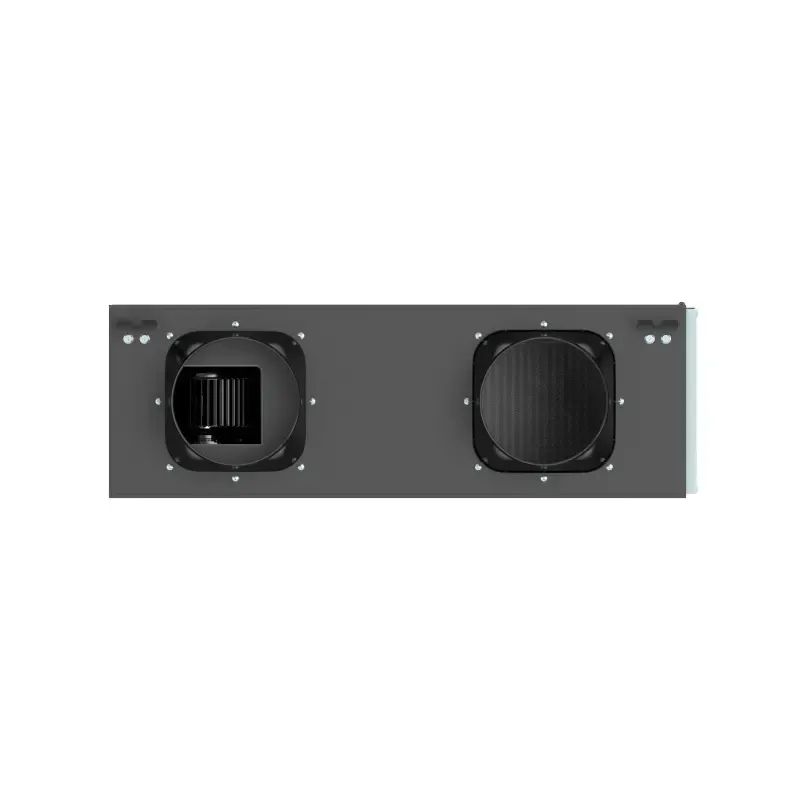

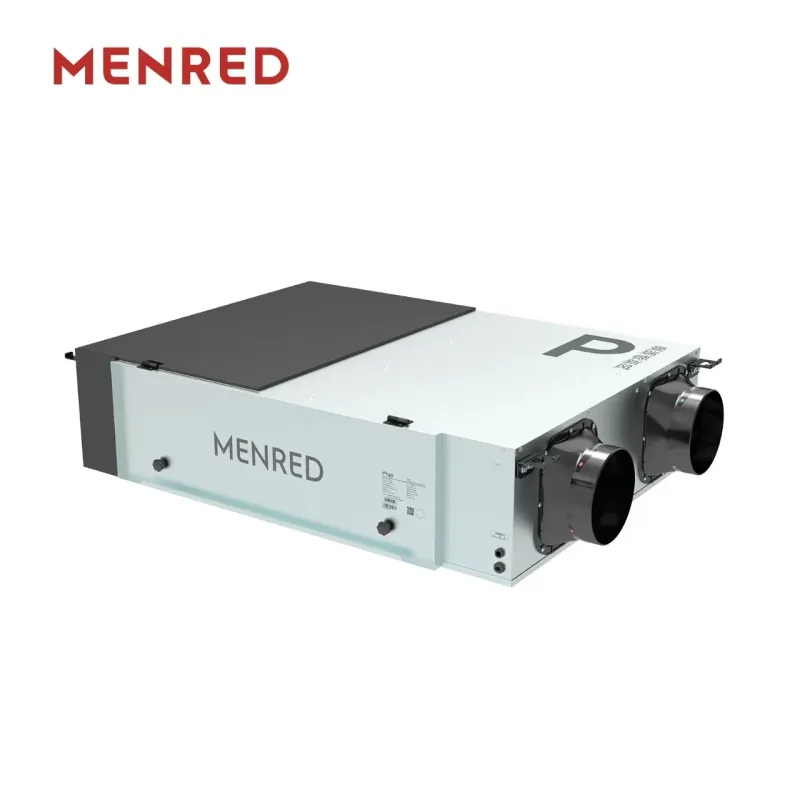

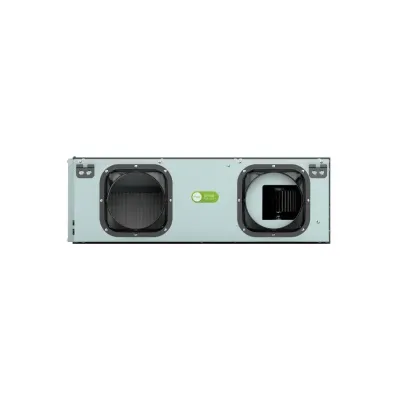

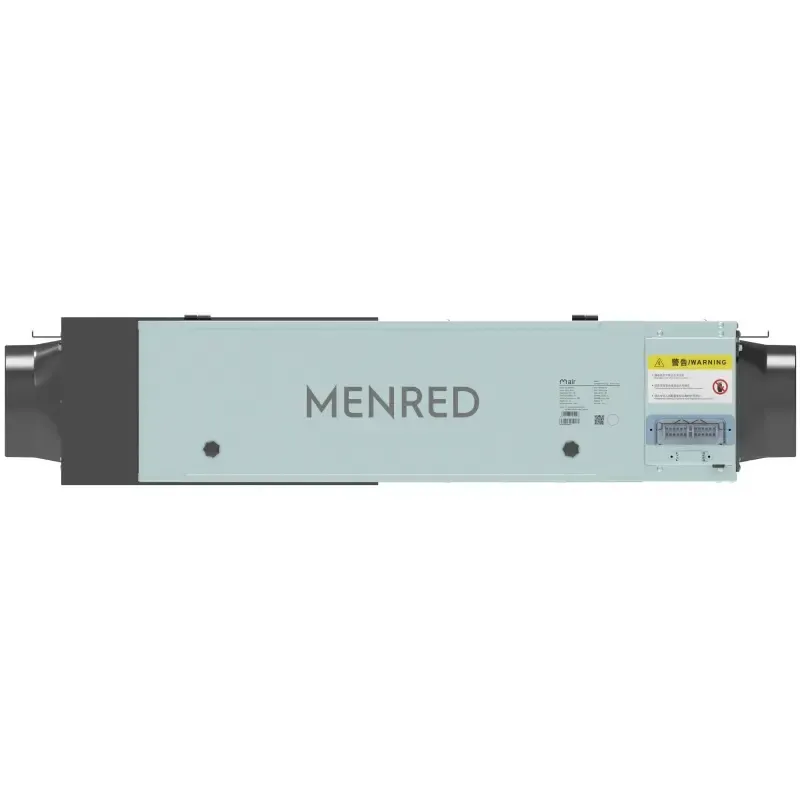

The MENRED P5 is a ceiling-mounted residential full heat recovery ventilator with a rated airflow of 350 m³/h and a maximum airflow of 450 m³/h. It uses an EC fan and G4 HEPA filtration with Toray filter media. The product page lists heating efficiency of 77%, cooling efficiency of 69%, and supply and exhaust static pressures of 80 Pa and 50 Pa. Its 230 mm body height supports concealed ceiling installation.
The product page lists heating efficiency of 77% and cooling efficiency of 69%.
The P5 uses G4 HEPA filtration with Toray filter media. The listed PM2.5 filtration is 97%.
The rated airflow is 350 m³/h, with a maximum airflow of 450 m³/h. The product page lists an applicable area of up to approximately 200 m².
The P5 uses an EC fan. Its listed maximum power is 220 W and rated power is 135 W.
The specified static pressure is 80 Pa on the supply side and 50 Pa on the exhaust side.
The 230 mm-high body supports concealed installation. A touch-screen controller and air-quality sensor are listed as optional accessories.
| Specification | Details |
|---|---|
| Model | P5 |
| Type | Ceiling-mounted full heat recovery ventilator |
| Power supply | 220–240 V~ 50/60 Hz |
| Rated airflow | 350 m³/h |
| Maximum airflow | 450 m³/h |
| Maximum / rated power | 220 W / 135 W |
| Motor / fan | EC fan |
| Supply static pressure | 80 Pa |
| Exhaust static pressure | 50 Pa |
| Heating efficiency | 77% |
| Cooling efficiency | 69% |
| Fresh air volume | 340 m³/h |
| Fresh air ratio | 97% |
| Filter | G4 HEPA |
| Filter media | Toray |
| PM2.5 filtration | 97% |
| Noise | 38 dB(A) |
| Fresh air energy consumption | 0.38 W/(m³/h) |
| Applicable area | Up to approximately 200 m² |
| Operating temperature | −10°C to 50°C |
| Optional accessories | Touch-screen controller / air-quality sensor |
| Product dimensions | 1125 × 720 × 230 mm |
| Weight | 36 kg |
The rated airflow is 350 m³/h, and the maximum airflow is 450 m³/h.
The P5 uses G4 HEPA filtration with Toray filter media. The product specification lists 97% PM2.5 filtration.
The product page lists heating efficiency of 77% and cooling efficiency of 69%.
The listed supply static pressure is 80 Pa, and the listed exhaust static pressure is 50 Pa.
The listed optional accessories are a touch-screen controller and an air-quality sensor.
The product information lists an applicable area of up to approximately 200 m².
Contact MENRED to discuss product details, control options, or your ventilation project.
