MENRED HRVs are highly versatile and can be used in a variety of commercial, institutional, and educational buildings of any size and location. They are easy to install, offer high reliability, and are incredibly flexible and energy-efficient, saving building owners and facility managers money.
As buildings become more airtight, indoor air quality becomes increasingly important. MENRED HRVs provide the cleaner and healthier indoor air necessary to enhance Indoor Air Quality (IAQ), making them an essential part of any commercial, institutional or educational building.

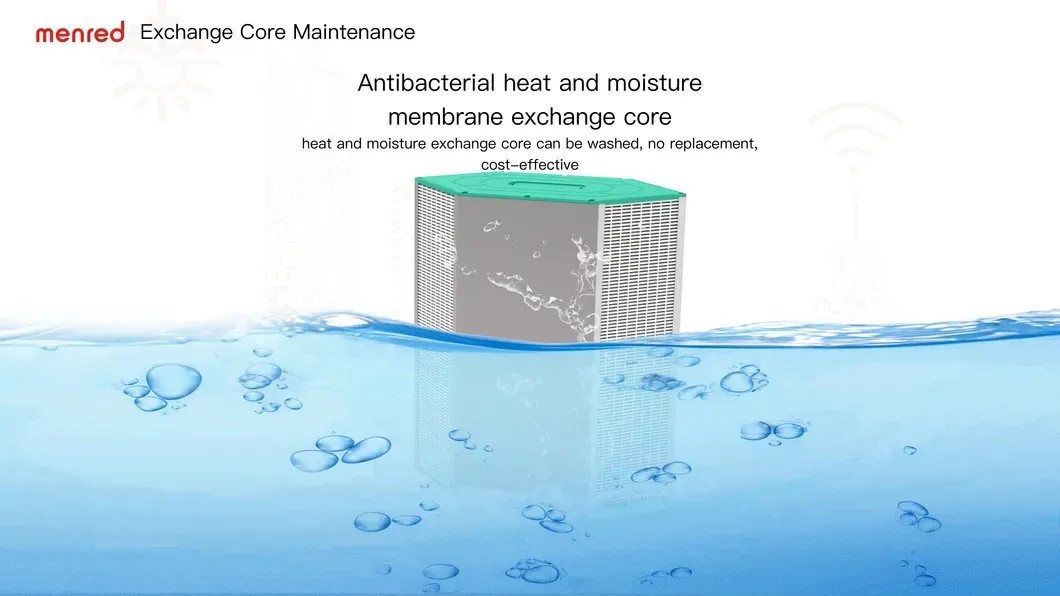

The MENRED Net Series heat recovery ventilator is an excellent choice for residential, office, and villa applications. The system can be used with either floor or ceiling fresh air systems and features a large-size rhombic counterflow paper total heat exchange core capable of exchanging both temperature and enthalpy.
Our heat recovery ventilator is small, thin, and lightweight with a compact structure, making it easy to install in small spaces and convenient for customers to maintain. It provides excellent energy efficiency and space-saving benefits without sacrificing air quality, making it the perfect choice for any application.
Features:

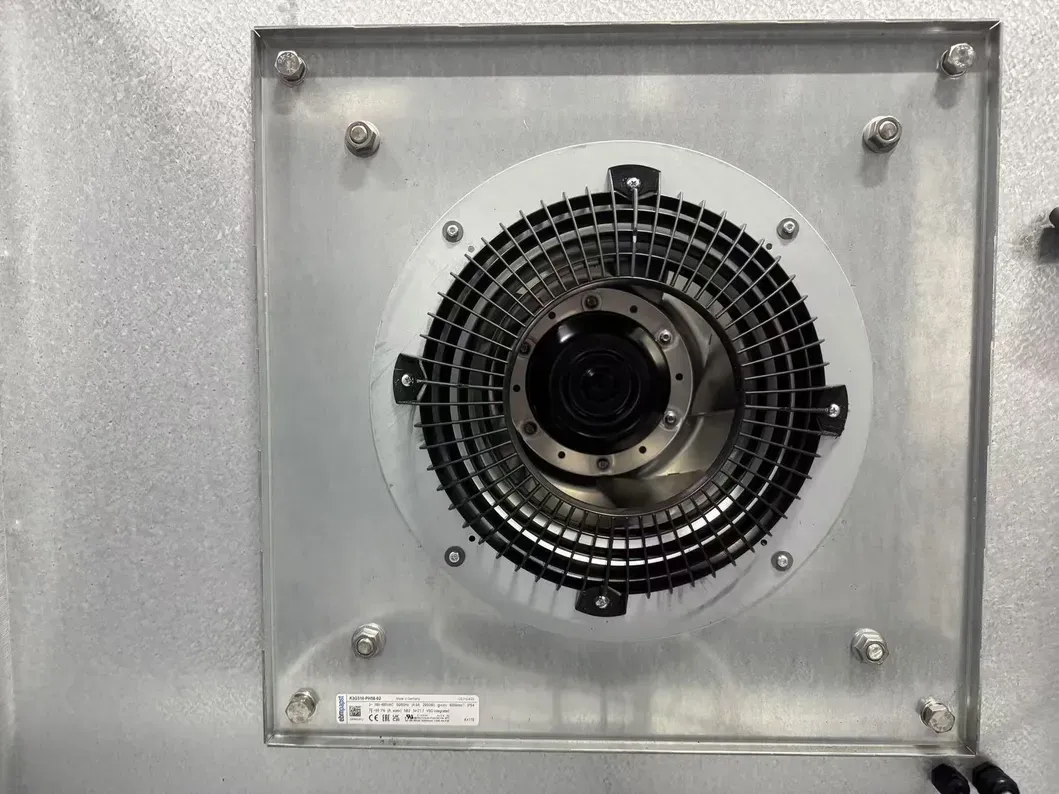

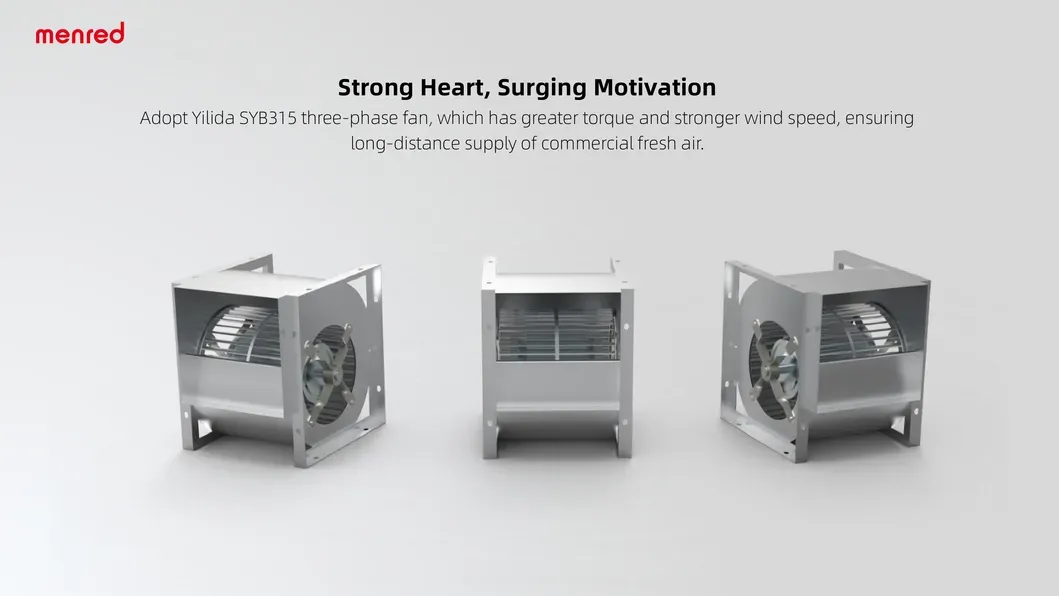

1. A three-phase fan designed to deliver the necessary torque and airspeed for long-distance air delivery. This powerful fan provides robust and reliable performance, ensuring optimal ventilation and air circulation in commercial settings.

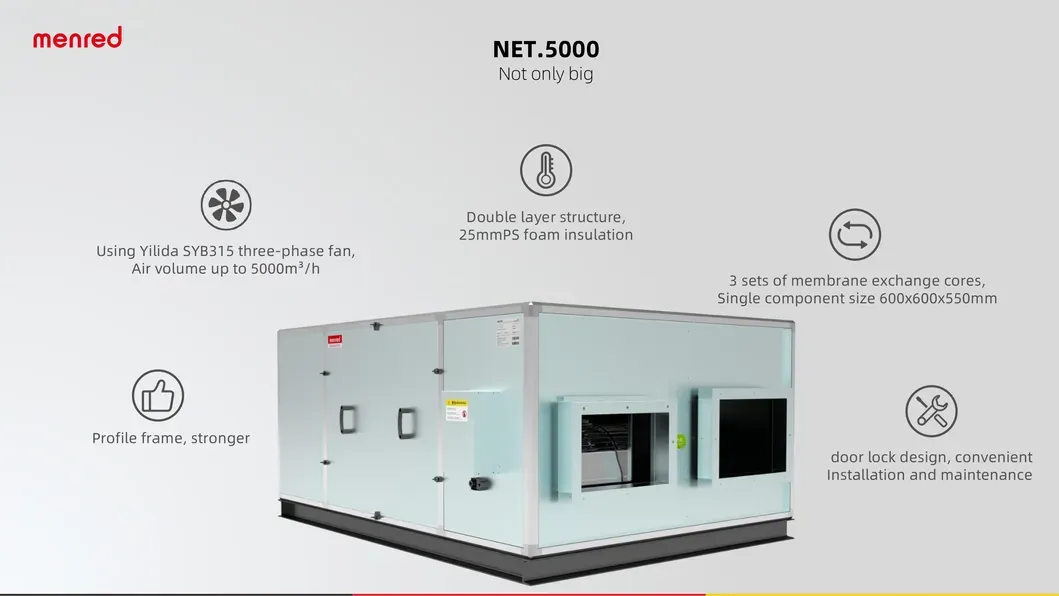

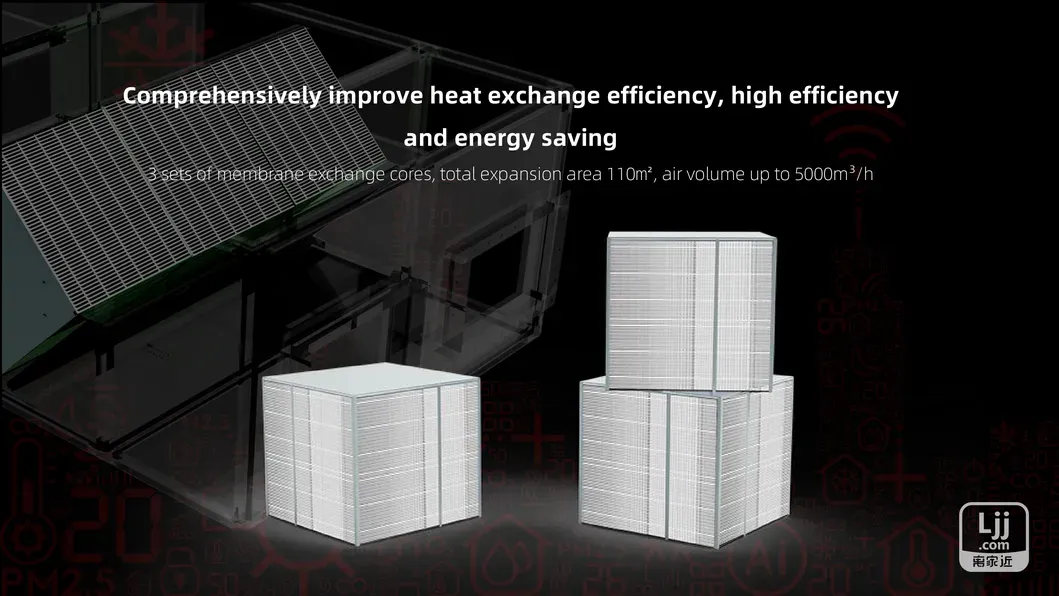

2. High energy efficiency with improved heat exchange efficiency across the board: Single membrane exchange core module size 600x600x550mm, 3 groups of membrane exchange cores, total spread area 110m2, air volume up to 5000m³/h

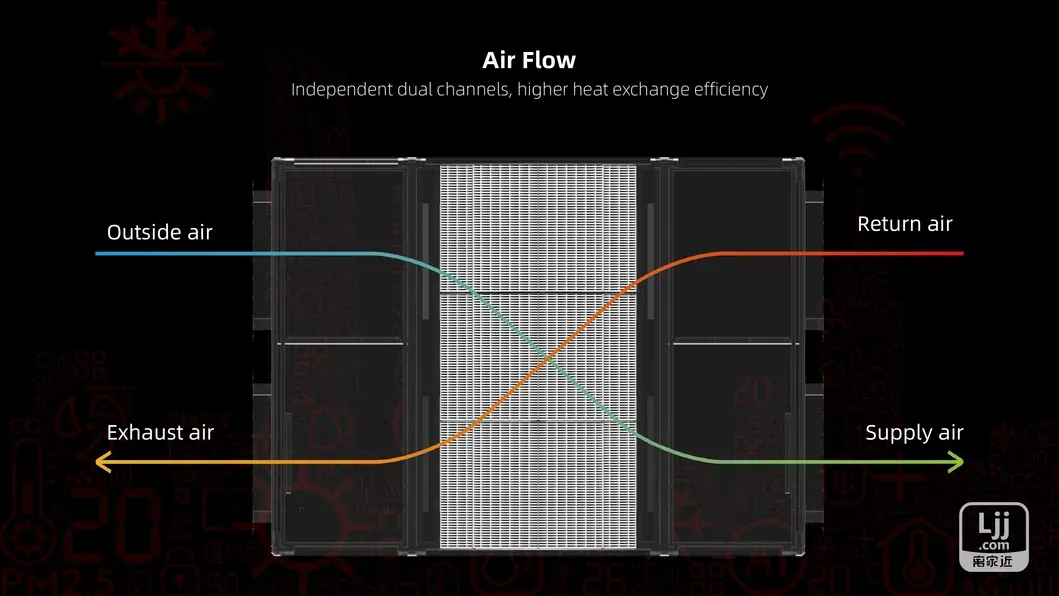

3. Air flow direction: Independent dual channels for more efficient heat exchange

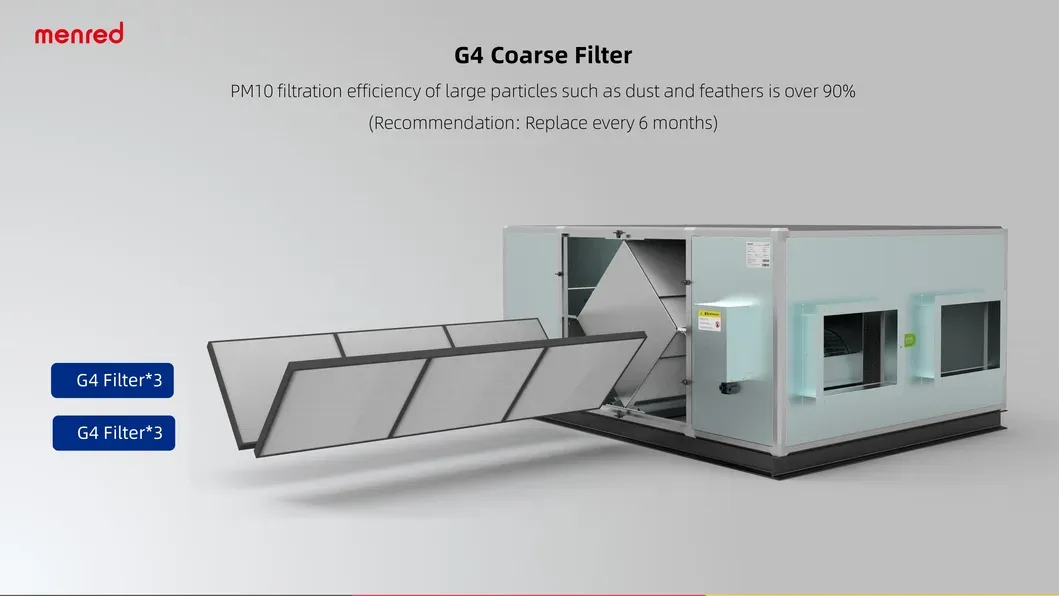

4. G4 coarse filter: Dust, feathers and other large particles PM10 filtration efficiency of 90% or more (Recommendation: Replace every 6 months)
5. Controls system: LCD controller.
6. Filtering system: USA imported electrostatic adsorption material.
Selection Table
| Model | NET.800 | NET.1000 | NET.1500 | NET.2000 | NET.2500 | NET.3000 |
| Voltage(V/Hz)) | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
| Air volume(m³/h) | 800/700/600 | 1000/800/600 | 1500/1200/1100 | 2000/1600/1200 | 2500/2000/1500 | 3000/2300/1700 |
| Power(W) | 615/510/415 | 450/385/355 | 613/513/443 | 950/865/820 | 1487/1147/904 | 1989/1534/1137 |
| Noise(dB(A)) | 52/49/45 | 54/52/45 | 55/53/47 | 56/54/48 | 57/55/49 | 58/56/49 |
| Weigh(KG) | 63 | 90 | 162 | 159 | 198 | 217 |
| Filter model | F021 | F026 | F029 | F044 | F045 | F045 |
| Filter amount | 4 | 4 | 6 | 4 | 6 | 6 |

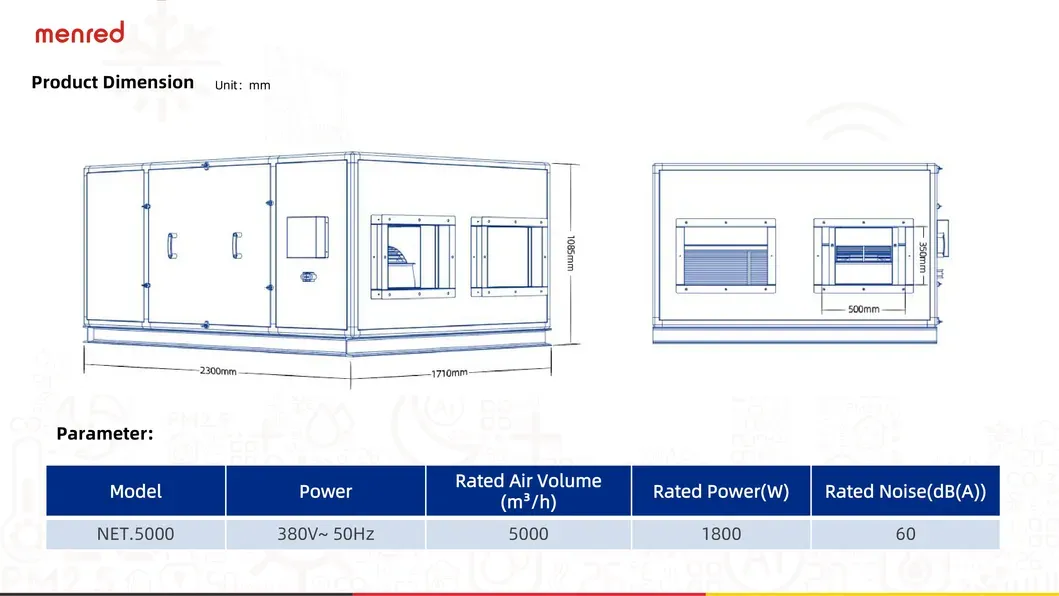

| Attribute | Value |
|---|---|
| Model NO. | NET5000 |
| Certification | RoHS, ISO, CE |
| Project Solution Capability | Total Solution for Projects |
| Design Style | Modern, European |
| Feature | Flexible |
| Noise (dB(a)) | 60 |
| Rated Air Volume | 5000 M³/H |
| Origin | Zhejiang, China |
| Type | Ventilation |
| Model Number | Net 5000 |
| Filter Numbers | 6 |
| After-Sale Service | Free Spare Parts, Return and Replacement |
| Rated Supply Power | 1800W |
| Power Source | 380/50 (V/Hz) |
| Trademark | Menred |
| Production Capacity | 50000 PCS/Year |
