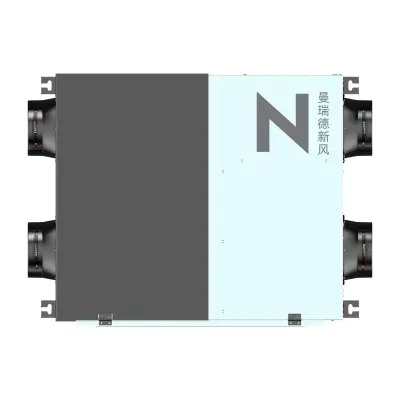

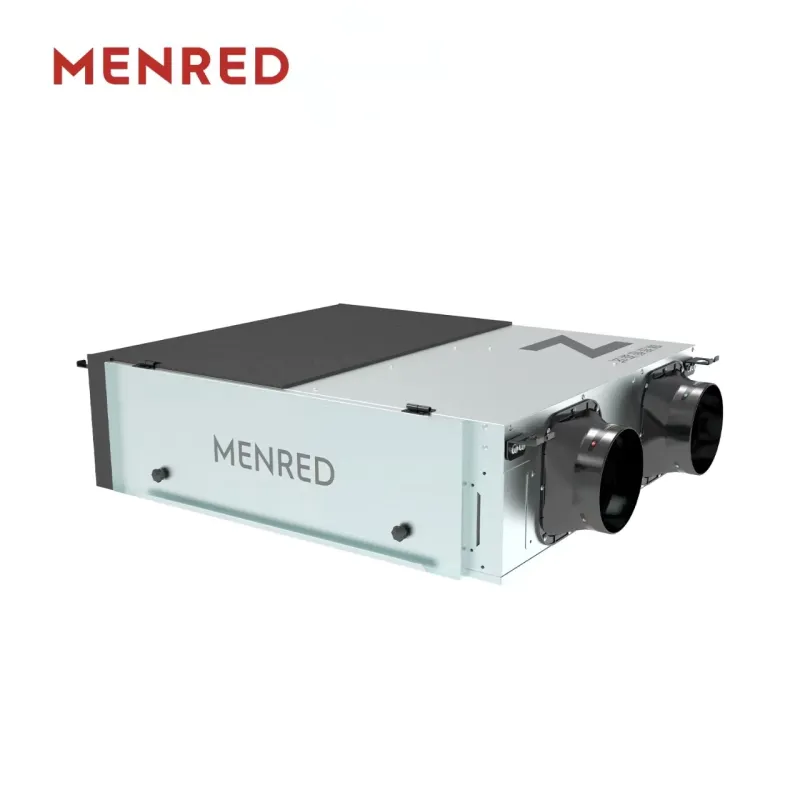

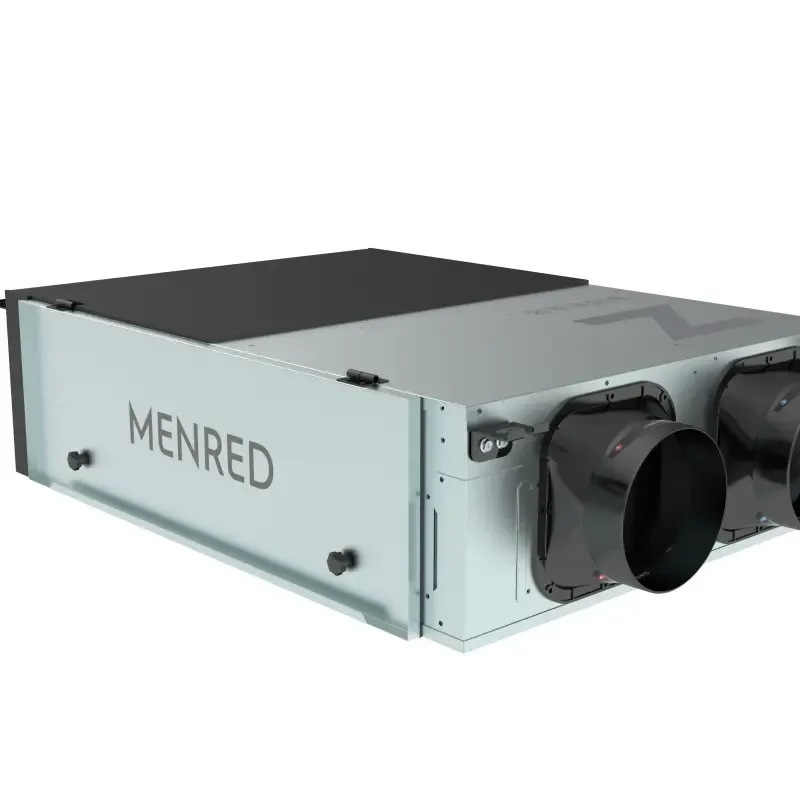

The MENRED N5 is a ceiling-mounted full heat recovery ventilator for apartments, villas, offices, and light commercial spaces up to approximately 200 m². It has a rated airflow of 350 m³/h, an AC fan, and Toray G4 HEPA filtration. The listed PM2.5 filtration efficiency is 97%, and the listed fresh air ratio is 97%.
| Specification | Details |
|---|---|
| Model | N5 |
| Type | Ceiling-mounted full heat recovery ventilator |
| Power supply | 220–240 V~ 50/60 Hz |
| Rated airflow | 350 m³/h |
| Maximum airflow | 400 m³/h |
| Motor / fan | AC fan |
| Maximum / rated power | 270 W / 260 W |
| Exhaust static pressure | 90 Pa |
| Heating efficiency | 71% |
| Cooling efficiency | 58.5% |
| Fresh air ratio | 97% |
| Filter | G4 HEPA |
| Filter media | Toray |
| PM2.5 filtration | 97% |
| Noise | 39 dB(A) |
| Fresh air energy consumption | 0.49 W/(m³/h) |
| Applicable area | Up to approximately 200 m² |
| Ductwork connection | Available |
| Product dimensions | 990 × 720 × 230 mm |
| Weight | 31 kg |
The rated airflow is 350 m³/h, and the maximum airflow is 400 m³/h.
The N5 uses G4 HEPA filtration with Toray filter media.
The product specifications list a PM2.5 filtration efficiency of 97%.
The listed heating efficiency is 71%, and the listed cooling efficiency is 58.5%.
The MENRED N5 uses an AC fan.
The listed exhaust static pressure is 90 Pa.
The product information lists an applicable area of up to approximately 200 m².
