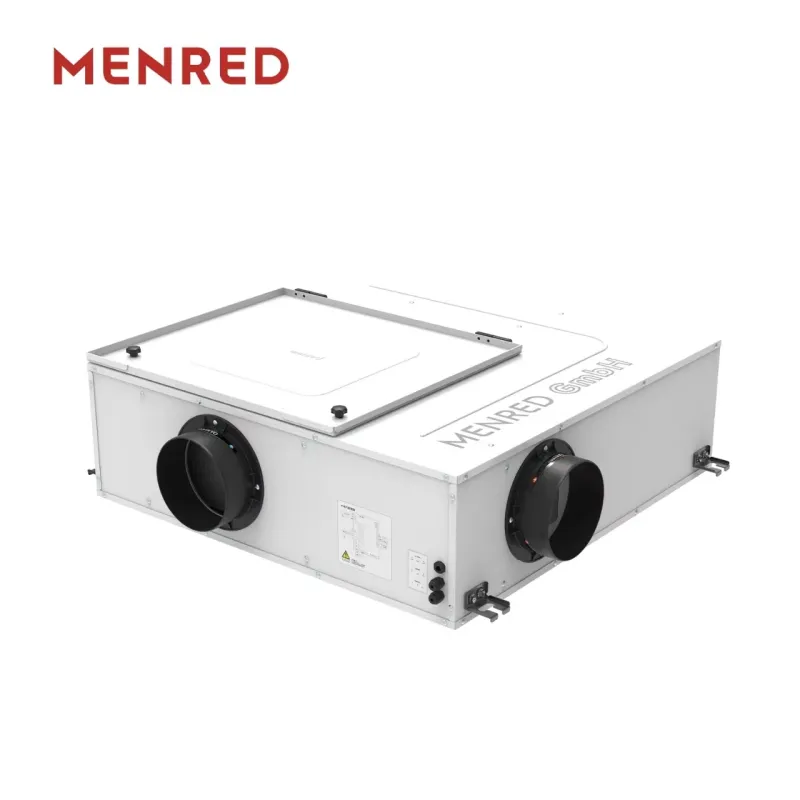

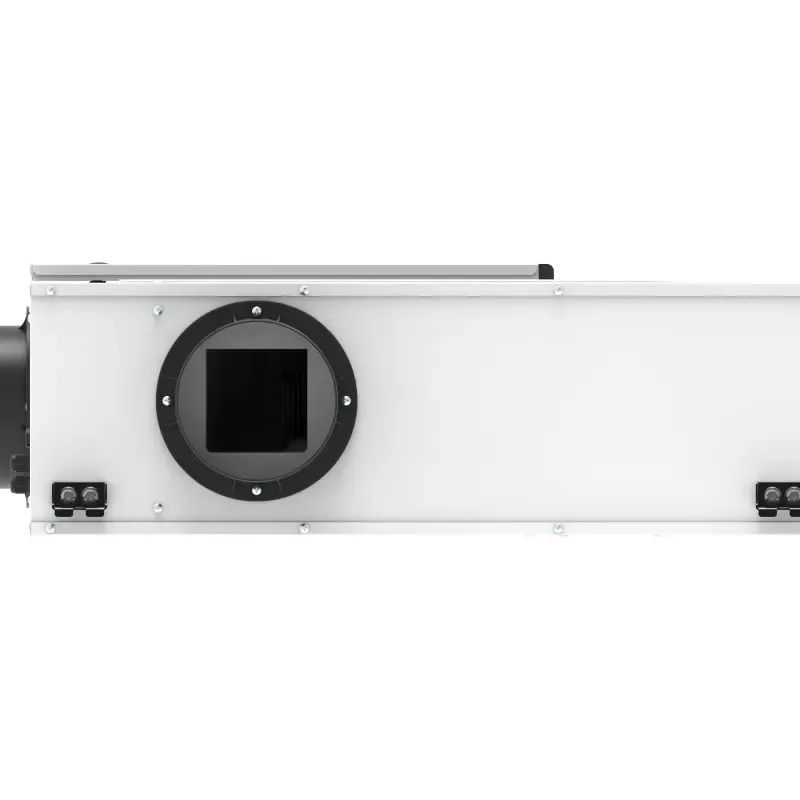

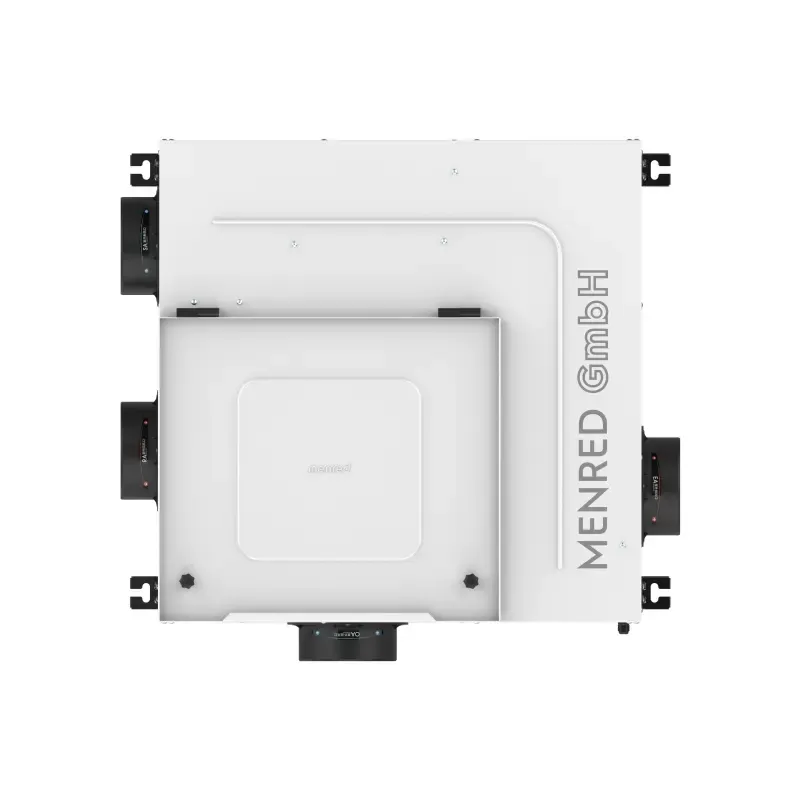

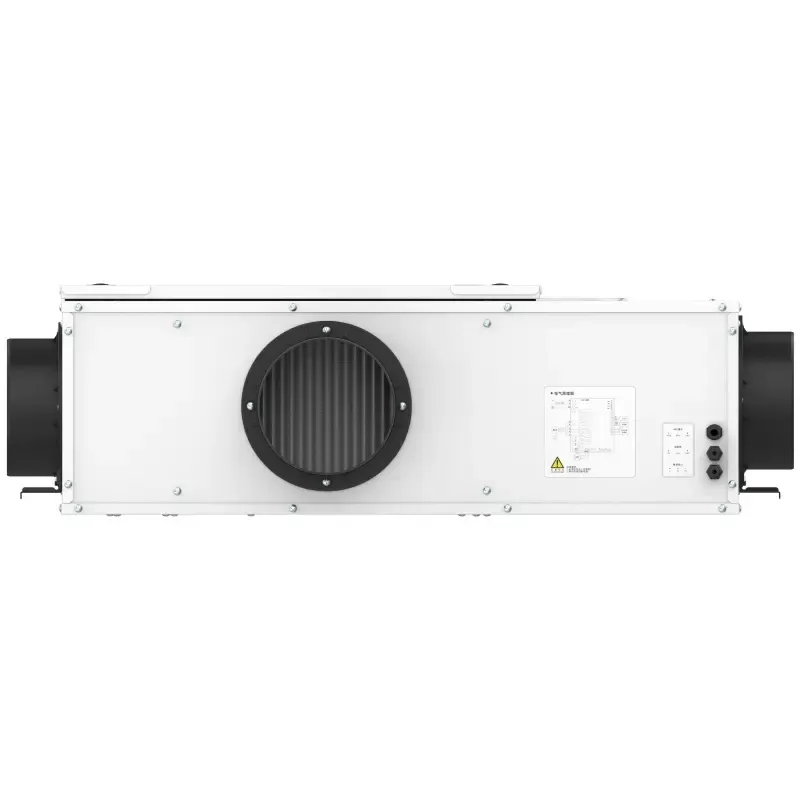

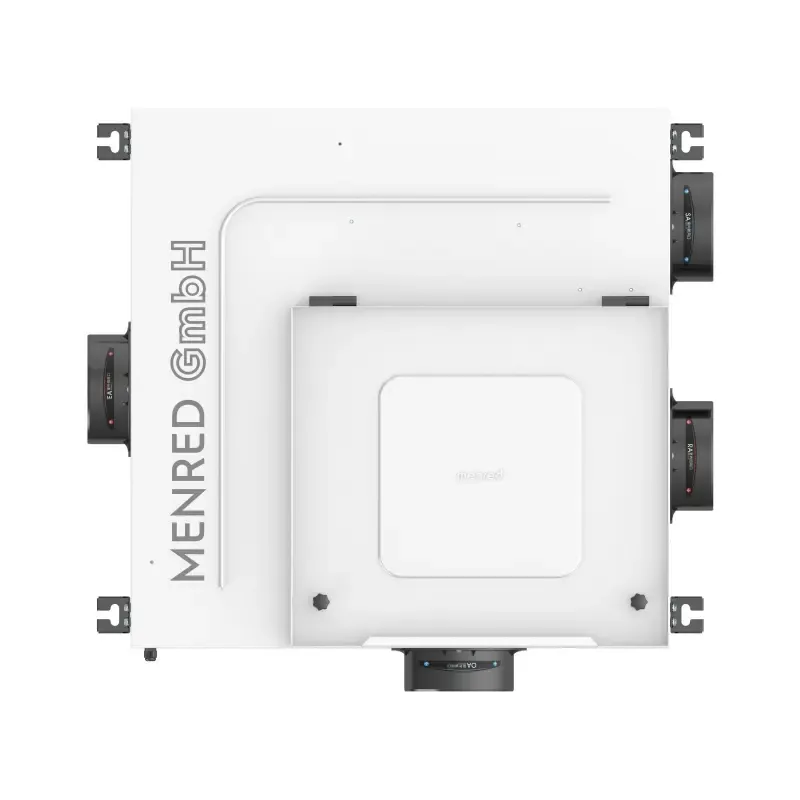

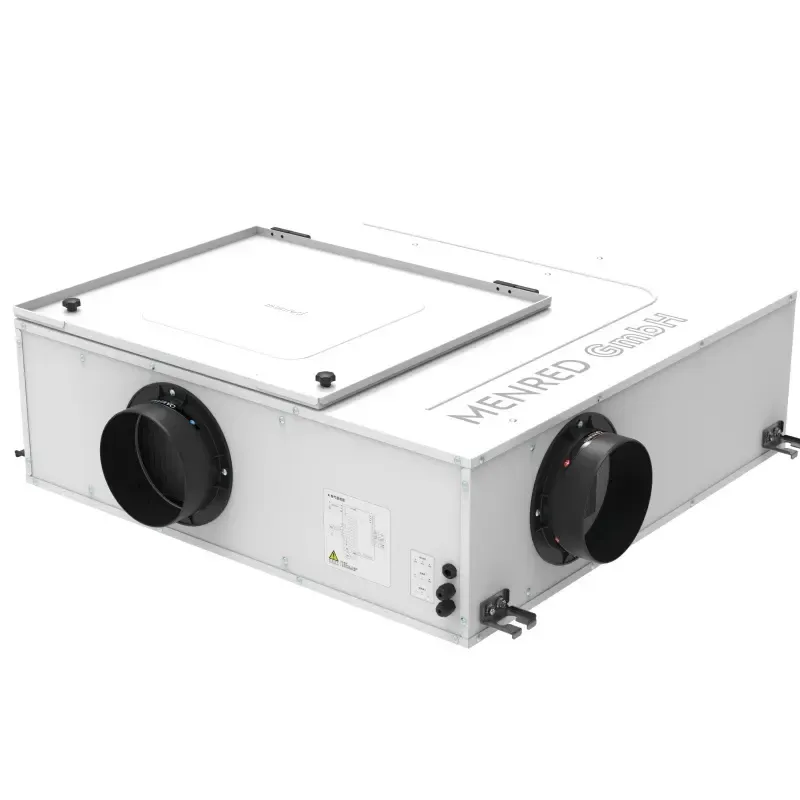

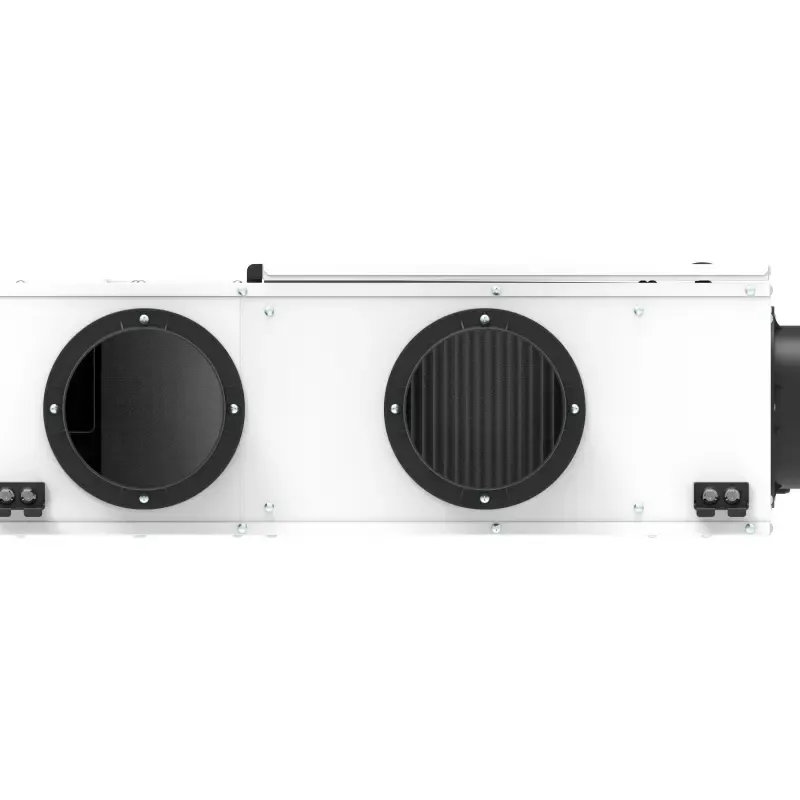

The MENRED RC1.350E is a ceiling-mounted full heat recovery ventilator for residential spaces up to approximately 200 m². It combines 350 m³/h rated airflow, an EC fan, and Toray G4 HEPA filtration. The listed heating efficiency is 71%, and the unit is available with left- or right-side connection configurations.
| Specification | Details |
|---|---|
| Model | RC1.350E |
| Type | Ceiling-mounted full heat recovery ventilator |
| Power supply | 220–240 V~ 50/60 Hz |
| Rated airflow | 350 m³/h |
| Maximum airflow | 500 m³/h |
| Motor / fan | EC fan |
| Maximum / rated power | 220 W / 165 W |
| Supply static pressure | 80 Pa |
| Exhaust static pressure | 50 Pa |
| Heating efficiency | 71% |
| Cooling efficiency | 58.5% |
| Fresh air ratio | 97% |
| Filter | G4 HEPA |
| Filter media | Toray |
| PM2.5 filtration | 97% |
| Noise | 35 dB(A) |
| Applicable area | Up to approximately 200 m² |
| Operating temperature | −10°C to 50°C |
| Connection configuration | Left / right |
| Optional accessories | Touch-screen controller / air quality sensor |
| Ductwork connection | Available |
| Product dimensions | 730 × 730 × 250 mm |
| Weight | 30 kg |
The rated airflow is 350 m³/h, and the maximum airflow is 500 m³/h.
It uses G4 HEPA filtration with Toray filter media.
The listed heating efficiency is 71%, and the listed cooling efficiency is 58.5%.
The listed supply static pressure is 80 Pa, and the exhaust static pressure is 50 Pa.
The unit is available with left- or right-side connection configurations.
The listed optional accessories are a touch-screen controller and an air quality sensor.
The specified operating temperature range is −10°C to 50°C.
The product information lists an applicable area of up to approximately 200 m².
Contact MENRED to discuss product details or your ventilation project.
