Select the manifold according to the heating circuit layout, connection requirements and available installation space. Confirm the valve and actuator combination before ordering.
| Parameter | Specification |
|---|---|
| Material | Brass, HPb59 |
| Nominal pressure | PN10 |
| Medium temperature | 5–95°C |
| Main manifold size | DN25 |
| Outlet spacing | 50 mm |
| Main connections | G1 male thread at one end; G1 female thread at the other |
| Actuator mounting thread | M30 × 1.5 mm |
| Valve stroke | 3 mm |
| Model | Circuits | A (mm) | B (mm) |
|---|---|---|---|
| CM25.N2 | 2 | 120 | — |
| CM25.N3 | 3 | 170 | 50 |
| CM25.N4 | 4 | 220 | 100 |
| CM25.N5 | 5 | 270 | 150 |
| CM25.N6 | 6 | 320 | 200 |
| CM25.N7 | 7 | 370 | 250 |
| CM25.N8 | 8 | 420 | 300 |

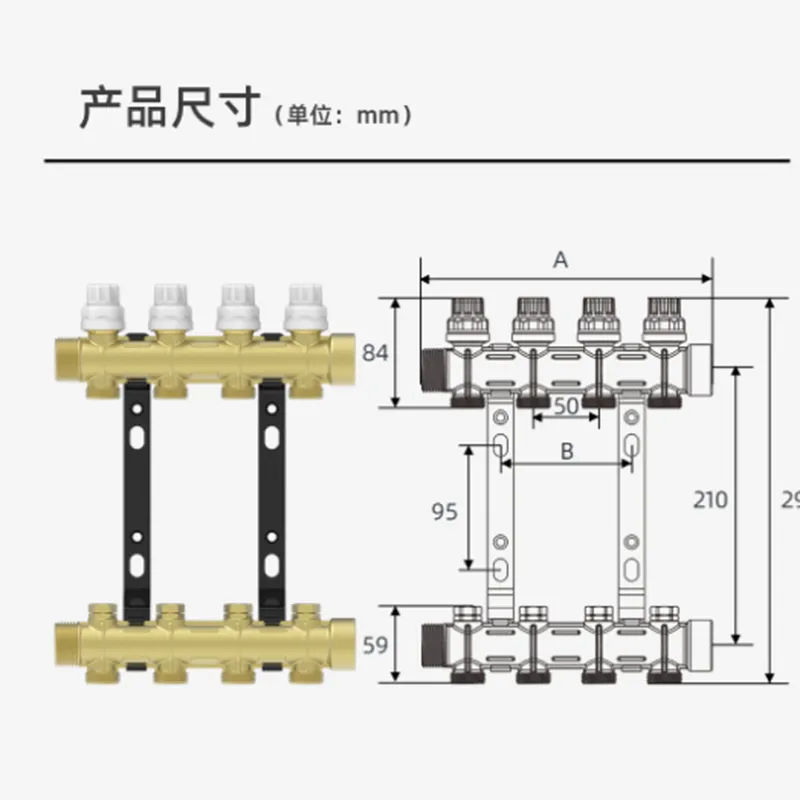

Refer to the dimensional drawing to identify A and B. A dash indicates that no value is listed. Check the complete assembly dimensions and required service access before installation.
A matching mounting thread alone does not establish actuator compatibility. Check valve geometry, closing dimensions and operating travel against the selected actuator specifications. Confirm electrical requirements when selecting thermostats and wiring controls.
Provide heating pipe dimensions when requesting connectors. Confirm whether the quotation includes individual headers, a supply-and-return assembly, actuators, valves and terminal fittings.
Compare the CS25 manifold for another control configuration, or explore MENRED’s manifolds and wiring centers. Installation, pressure testing and commissioning should be carried out by qualified professionals.
Send MENRED your circuit count, quantity, pipe dimensions and control requirements.
Contact MENREDNo. Valve geometry, closing dimensions and required operating travel must also match the actuator specifications.
Confirm the complete supply configuration in the quotation, including headers, connectors, valves, actuators and terminal fittings.
Provide the circuit count, quantity, pipe dimensions, installation requirements and required control configuration.
