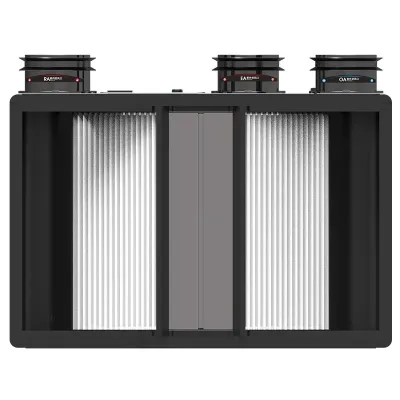

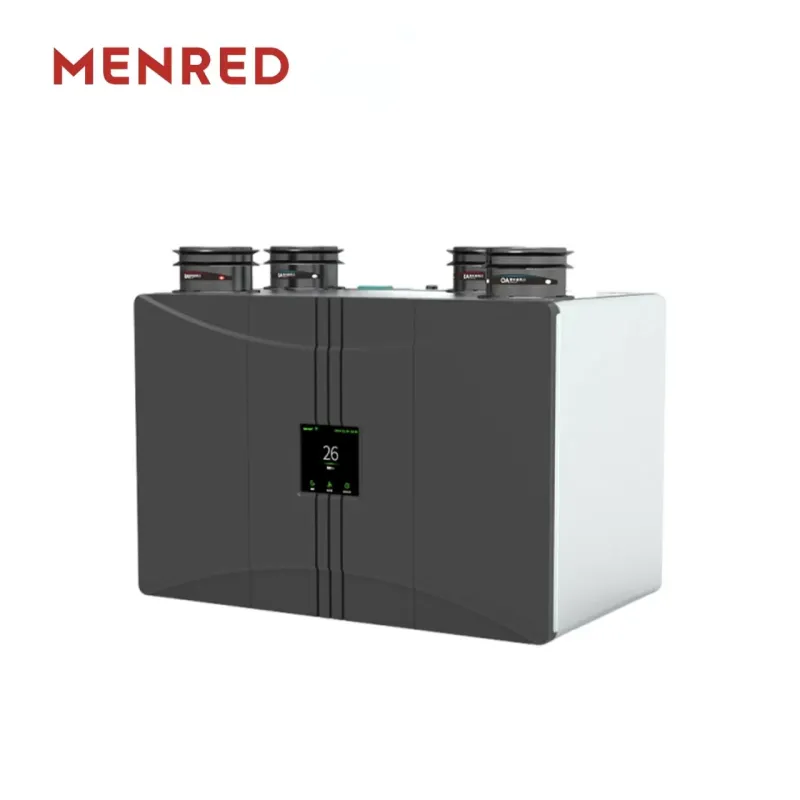

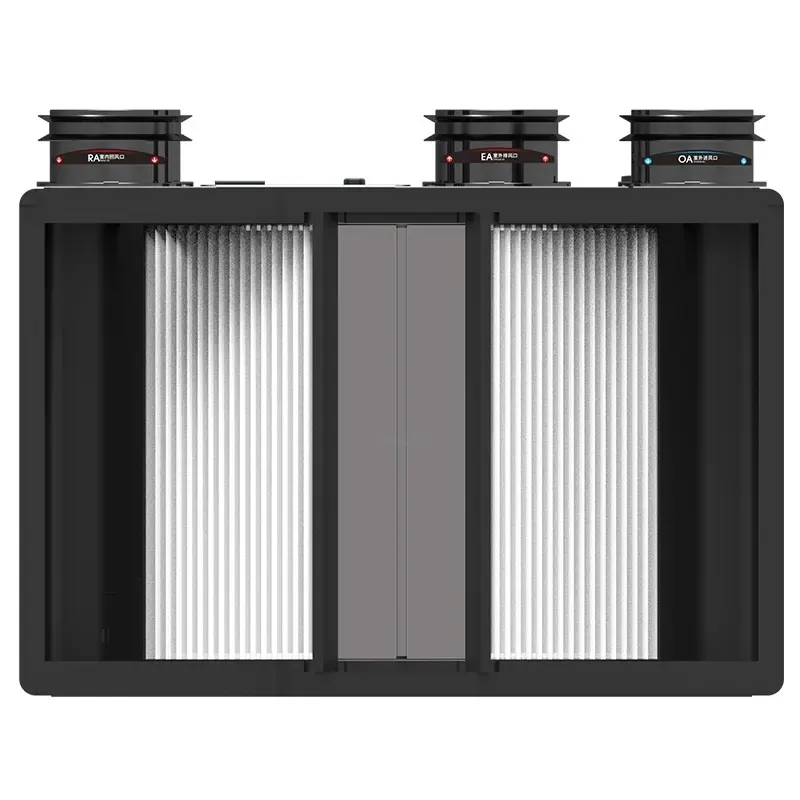

The MENRED G3 is a wall-mounted full heat recovery ventilator for residential spaces. It provides a rated airflow of 210 m³/h and a maximum airflow of 320 m³/h. Its one-piece EPP structure, EC fan, Toray HEPA filter media and built-in air sensor support residential ventilation. The listed heating efficiency is 73%, and the cooling efficiency is 65.5%.
The G3 is designed to supply fresh air and remove stale indoor air through a ducted wall-mounted system. Its one-piece EPP internal structure is specified to provide thermal insulation, and the built-in air sensor monitors indoor air conditions to support responsive ventilation control. A touch-screen controller is available as an optional accessory.
| Specification | Details |
|---|---|
| Model | G3 |
| Type | Wall-mounted full heat recovery ventilator |
| Power supply | 220–240 V~ 50/60 Hz |
| Rated airflow | 210 m³/h |
| Maximum airflow | 320 m³/h |

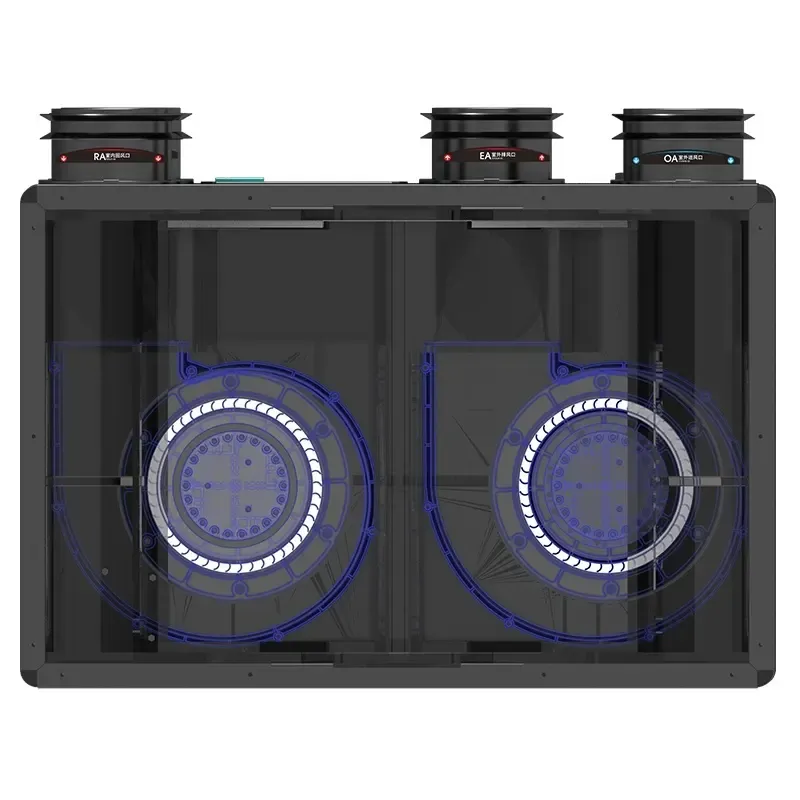

| Motor / fan | EC fan |
| Product dimensions | 600 × 460 × 365 mm |
| Maximum / rated power | 210 / 98 W |
| Heating efficiency | 73% |
| Cooling efficiency | 65.5% |
| Fresh air ratio | 96% |
| Filter | HEPA |
| Filter media | Toray |
| PM2.5 filtration | Up to 97% |
| Noise | 39 dB(A) |
| Applicable area | Up to approximately 100 m² |
| Operating temperature | −20°C to 50°C |
| Internal structure | One-piece EPP |
| Air sensor | Built-in |
| Optional accessory | Touch-screen controller |
| Ductwork connection | Available |
| Weight | 19 kg |
The listed rated airflow is 210 m³/h, and the maximum airflow is 320 m³/h.
The listed heating efficiency is 73%, and the cooling efficiency is 65.5%.
It uses HEPA filtration with Toray filter media. The listed PM2.5 filtration efficiency is up to 97%.
Yes. The G3 has a built-in air sensor. A touch-screen controller is listed as an optional accessory.
The listed applicable area is up to approximately 100 m².
The G3 is designed for wall mounting, and a ductwork connection is available.
Contact MENRED to discuss the G3, its built-in air sensor, or your residential ventilation project.
