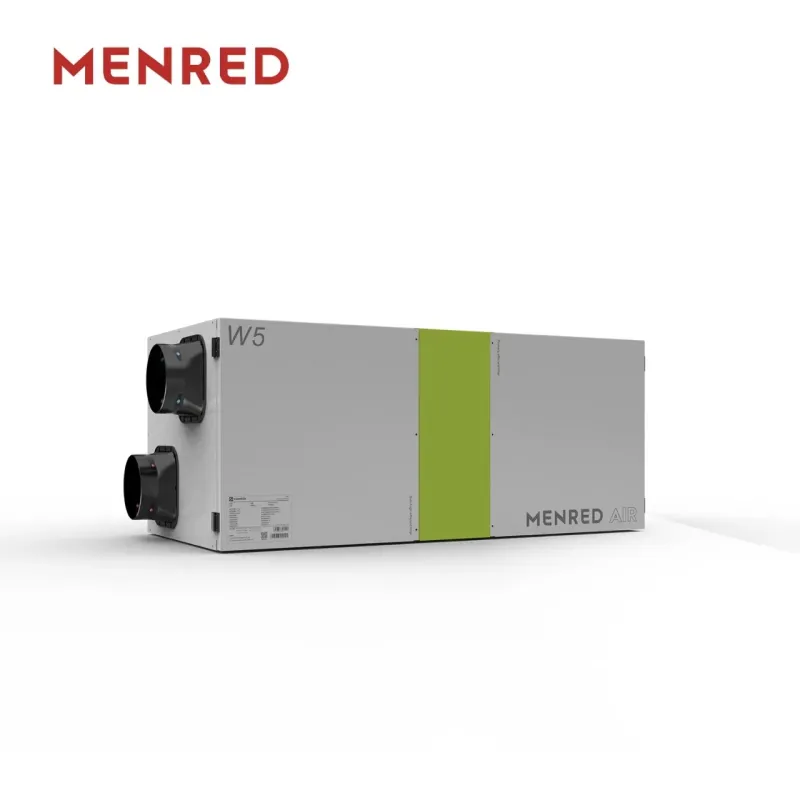

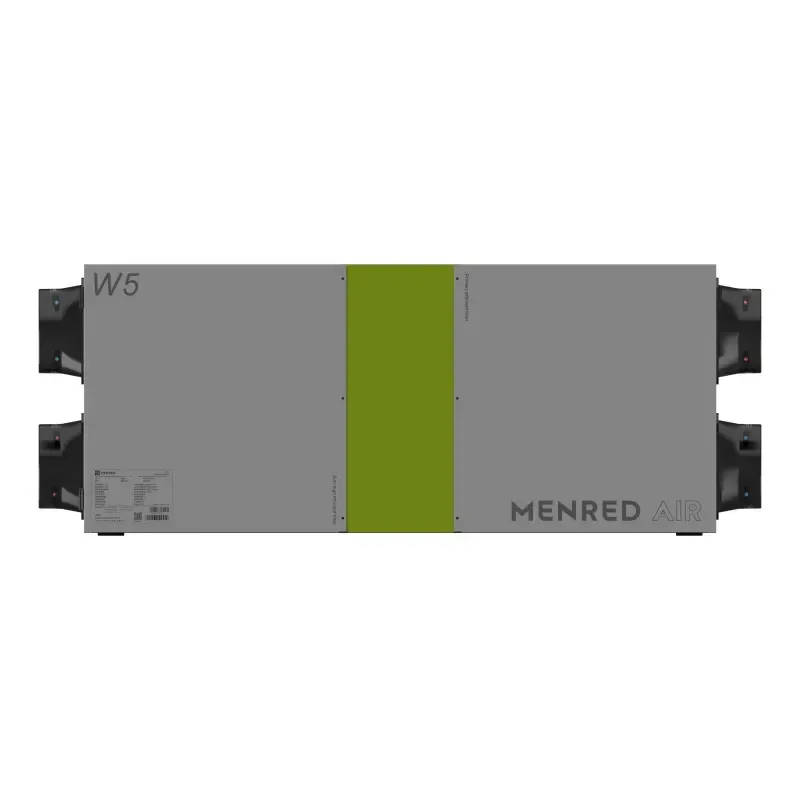

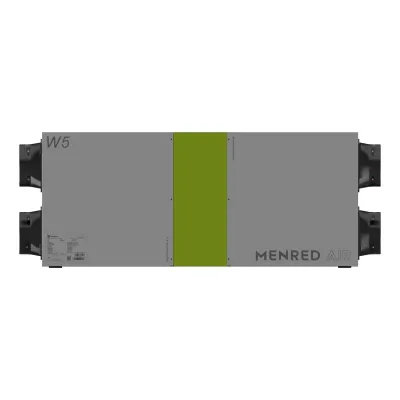

The MENRED W5 is a floor-standing residential heat recovery ventilator with a rated airflow of 350 m³/h and a maximum airflow of 500 m³/h. It combines an energy-saving EC fan, G4 HEPA filtration, and a built-in preheater. The listed heating efficiency is 90.3%, and the cooling efficiency is 72%. Integrated frost protection and preheating are specified for low-temperature operation.
Designed for residential ventilation applications, the W5 supplies fresh air and exhausts indoor air while recovering energy from the exhaust air. Its floor-standing structure, built-in preheater and bypass damper are listed as standard product features. The specified applicable area is up to 200 m².
| Specification | Details |
|---|---|
| Model | W5 |
| Type | Preheating heat recovery ventilator; floor-standing design |
| Power supply | 220–240 V~ 50/60 Hz |
| Rated airflow | 350 m³/h |
| Maximum airflow | 500 m³/h |
| Rated power | 135 W |
| Motor / fan | EC fan |
| Product dimensions | 1360 × 555 × 505 mm |
| Supply fan static pressure | 100 Pa |
| Exhaust fan static pressure | 50 Pa |
| Filter efficiency | 98% |
| Heating efficiency | 90.3% |
| Cooling efficiency | 72% |
| Filter | G4 HEPA |
| Noise | 39 dB(A) |
| Weight | 75 kg |
| Applicable area | Up to 200 m² |
| Outdoor temperature | −40°C to 50°C |
| Bypass damper | Yes |
| Built-in preheater | Yes |
| Condensate drain pan | Yes |
The listed rated airflow is 350 m³/h, and the maximum airflow is 500 m³/h.
The listed heating efficiency is 90.3%, and the cooling efficiency is 72%.
The listed filter combination is G4 HEPA, with a filter efficiency of 98%.
The product information lists integrated frost protection and preheating technology, as well as a built-in preheater.
The listed outdoor temperature range is −40°C to 50°C.
The specifications list a bypass damper, a built-in preheater and a condensate drain pan.
Contact MENRED to discuss the W5, its specifications, or your residential ventilation project.
