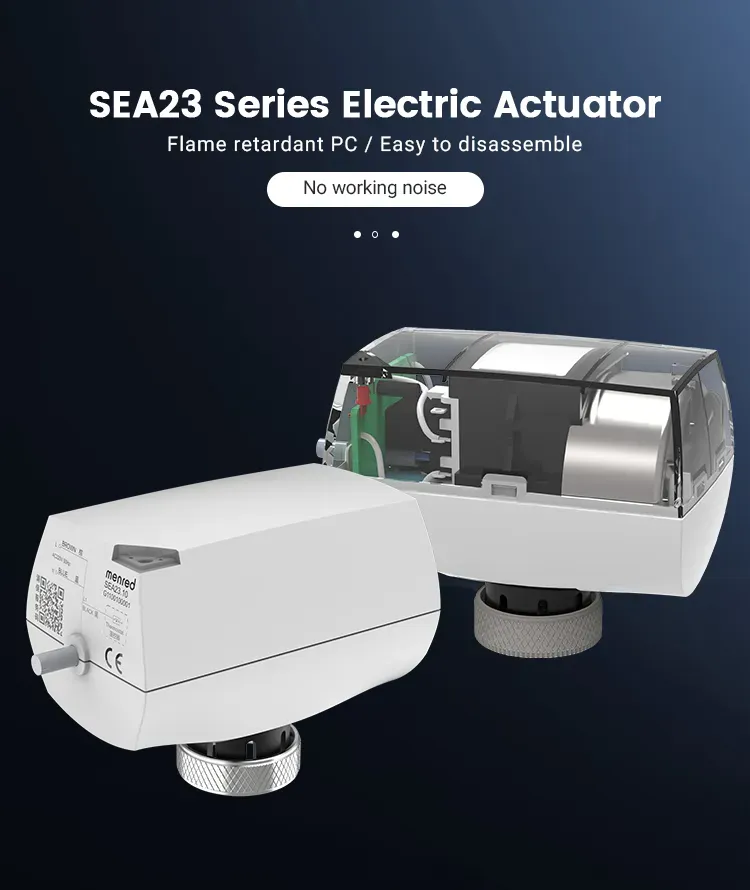

The MENRED SEA23 Series is a fast electric actuator designed to operate compatible control valves for hot and chilled water flow in HVAC heating and cooling systems.
With a 3 mm actuator stroke and opening/closing time of less than 20 seconds, SEA23 is suitable for applications requiring faster valve response than conventional electro-thermal actuators, including fan coil unit (FCU) water-flow control.
| Series | SEA23 |
| Product Type | Electric Valve Actuator |
| Available Voltage | AC 230V / AC 24V |
| Actuator Stroke | 3 mm |
| Opening / Closing Time | <20 s |
| Valve Interface | M30 × 1.5 mm |
| Ambient Temperature | -5°C to 50°C |
| Cable Length | 900 mm |
| Housing Material | PC |
| Protection Class | IP52 |
| Model | Voltage | Power Consumption |
|---|---|---|
| SEA23.10 | AC 230V | ≤3W |
| SEA23.20 | AC 230V | ≤6W |
| SEA23.24 | AC 24V | ≤6W |
SEA23 can be combined with a compatible control valve to regulate hot or chilled water flow according to the demand signal from the HVAC control system.
A typical fan coil control sequence is:
This configuration allows water flow through the fan coil coil to be controlled according to room heating or cooling demand.
MENRED specifies SEA23 for use with selected VEI46 two-port and VSI46 three-port control valves. Valve selection should be based on the required flow coefficient, pipe size and hydraulic design.
| Valve Model | Valve Type | Kvs | PN Class |
|---|---|---|---|
| VEI46.15 | Two-Port | 2.0 m³/h | PN16 |
| VEI46.20 | Two-Port | 3.5 m³/h | PN16 |
| VEI46.25 | Two-Port | 5.0 m³/h | PN16 |
| VSI46.20 | Three-Port | 3.5 m³/h | PN16 |
| VSI46.25 | Three-Port | 5.0 m³/h | PN16 |
See the MENRED VSI46 3-Port Control Valve for technical specifications and available valve sizes.
SEA23 and electro-thermal actuators can both operate compatible HVAC water valves, but their operating principles and response times are different.
| Feature | SEA23 Electric Actuator | Typical Electro-Thermal Actuator |
|---|---|---|
| Response | <20 s | Usually measured in minutes |
| Typical Application | HVAC / fan coil valve control | Floor heating manifold / zone valve control |
Send us your supply voltage, pipe size, required flow rate and HVAC application. MENRED can help you evaluate a suitable SEA23 actuator and control valve combination for your project.
