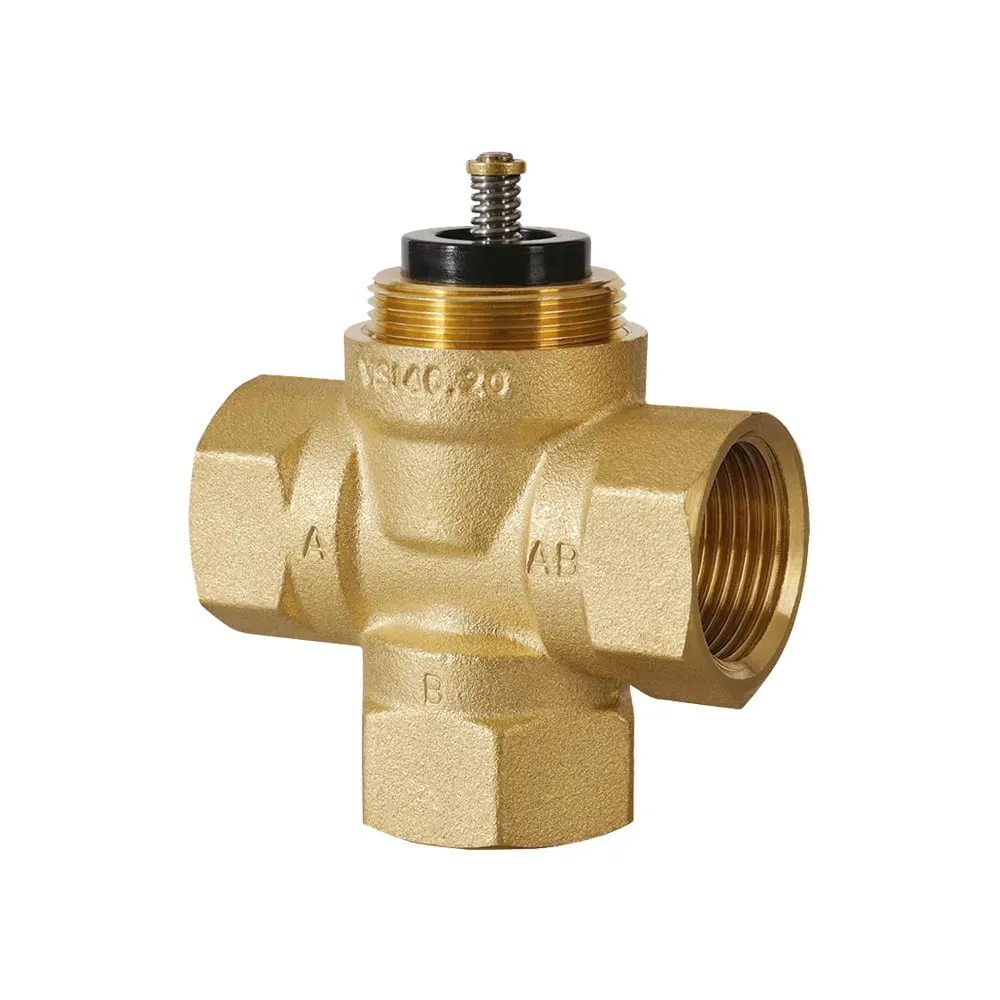

Features
> Hot-stamped brass valve body
> Internally threaded connections
> Hard sealing disc
> Manual adjuster
> Can be fitted with motorized actuator (SEA23...) or electro-thermal actuators (SEH35...)
Technical data
Operating pressure: PN16
Valve characteristic: linear
Stroke: 2.5mm

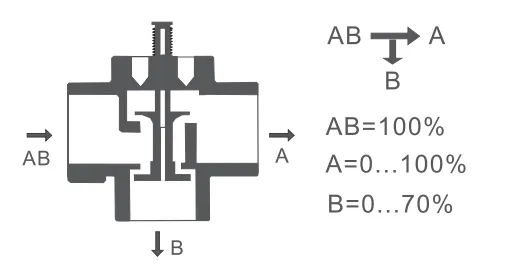

Leakage rate: (3-port)Path A→AB 0...0.05% of Kvs
Bypass AB→B Max.2...5% of Kvs
Medium temperature: 0...110℃
Valve body: Brass
Stem: Stainless steel
Plug, Seat, Gland: Brass
Stem seal: EPDM O-ring
Selection table
|
Model number |
DN(mm) |
Kvs(A→B) |
Connections |
Loading(PCS/Carton) |
|
VSI46.15 |
15 |
2.0m3/h |
Rp 1/2’ |
60 |
|
VSI46.20 |
20 |
3.5m3/h |
Rp 3/4’ |
60 |
|
VSI46.25 |
25 |
5.0m3/h |
Rp 1’ |
60 |
| Attribute | Value |
|---|---|
| Model NO. | VSI46 |
| Venetian-Style Air Layers | 0 |
| Stroke | 2.5mm |
| Project Solution Capability | Others |
| After-Sale Service | Online Technical Support |
| Operating Pressure | Pn16 |
| Stem | Stainless Steel |
| Stem Seal | EPDMO-Ring |
| Valve Characteristic | Linear |
| Origin | Zhejiang, China |
| Product Description | |
| Type | Round Diffuser |
| Certification | ISO, CE |
| Warranty | 3 Years |
| Design Style | Modern |
| Supply Ability | 1000 Piece/Pieces Per Month |
| Medium Temperature | 0...110°C |
| Valve Body | Brass |
| Application | Apartment |
| Trademark | mented |
| Production Capacity | 1000 Piece/Pieces Per Month |
|
Model
|
DN(mm)
|
Kvs(A→B)
|
Connections
|
|
VSI46.15
|
15
|
2.0 m³/h
|
Rp 1/2'
|
|
VSI46.20
|
20
|
3.5 m³/h
|
Rp 3/4'
|
|
VSI46.25
|
25
|
5.0 m³/h
|
Rp 1'
|
