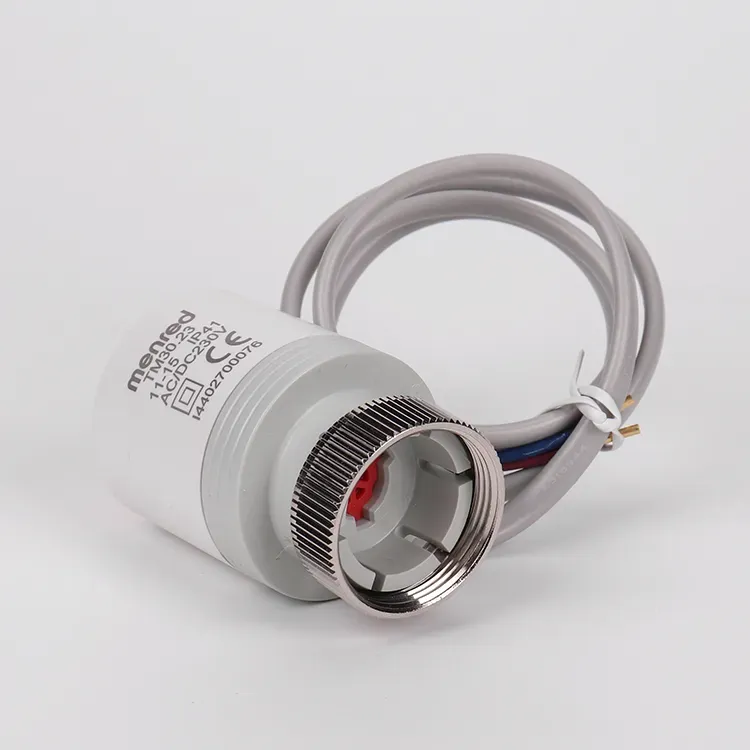

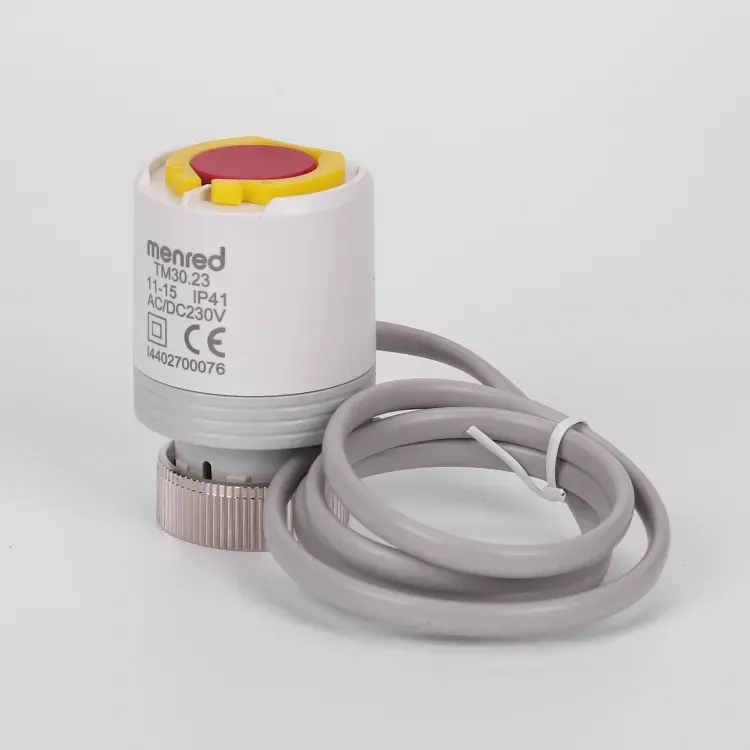

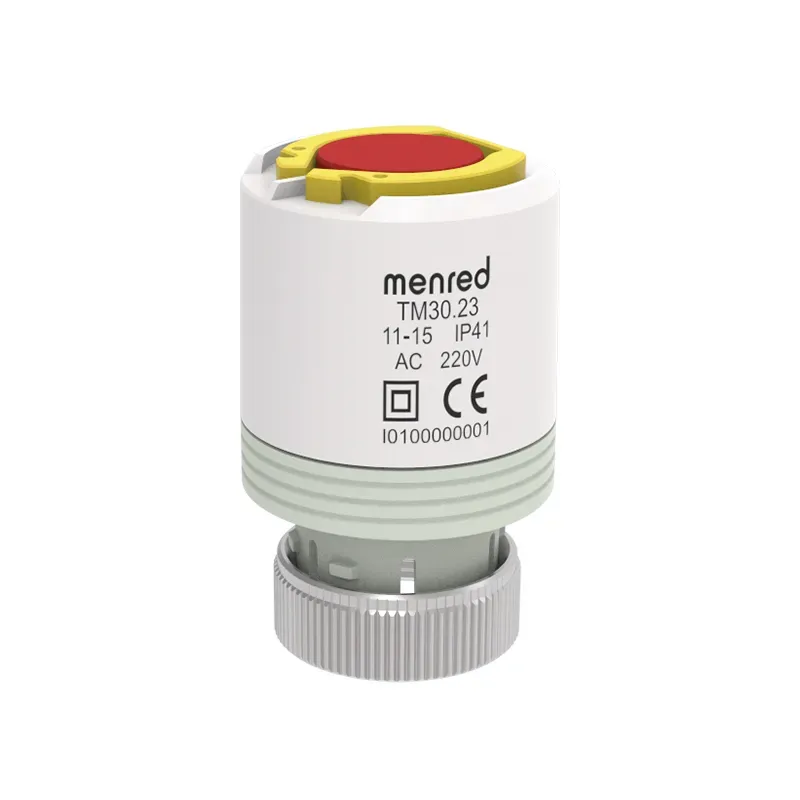

The MENRED TM20.23 is a compact electro-thermal actuator designed to control water flow through floor heating manifolds, small valves and compatible HVAC valves.
A low-power wax element driven by PTC heating converts the electrical control signal into mechanical movement. The actuator operates quietly and uses a spring-return mechanism for reliable valve control in hydronic heating and cooling systems.
| Model | TM20.23 |
| Product Type | Electro-Thermal Actuator |
| Voltage | AC 220V |
| Actuating Force | 100N |
| Stroke | 4 mm (11–15) |
| Valve Opening Time | Approx. 3 min |
| Power Consumption | ≤2.5W |
| Valve Connection | M30 × 1.5 mm |
| Ambient Temperature | -5°C to 50°C |
| Protection Class | IP41 |
| Cable Length | 800 mm |
| Housing Material | Flame-Retardant PC |

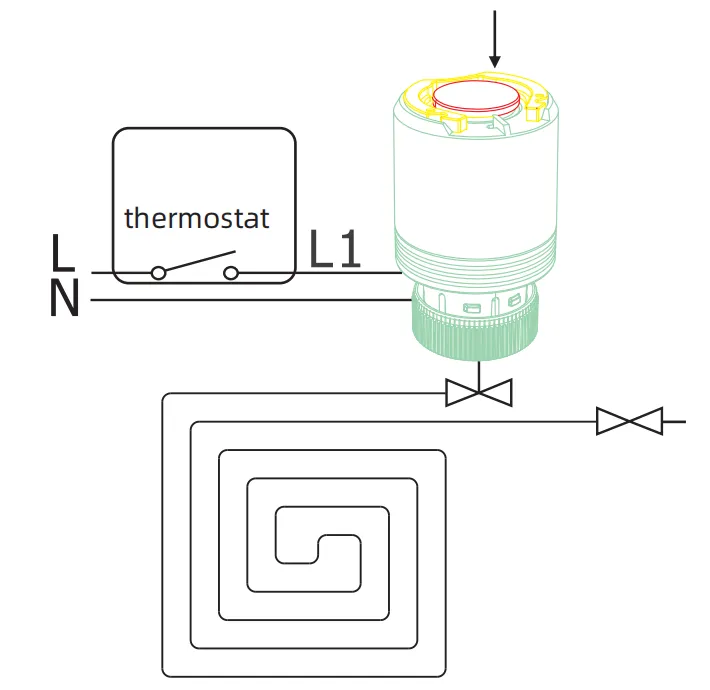

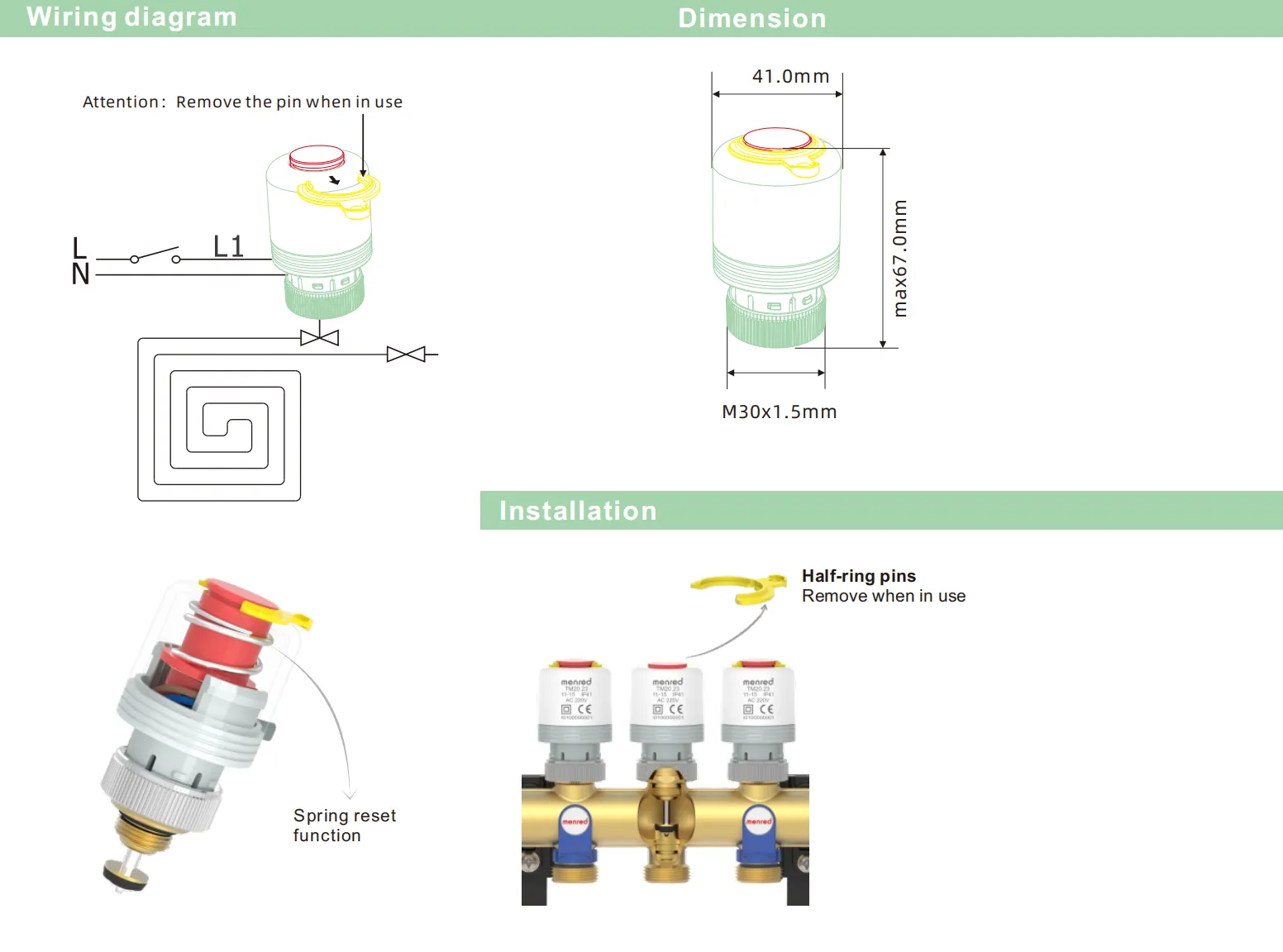

In a typical zoned floor heating system, the actuator receives an electrical signal from the thermostat or wiring center and operates the corresponding manifold valve to control water flow through the heating circuit.

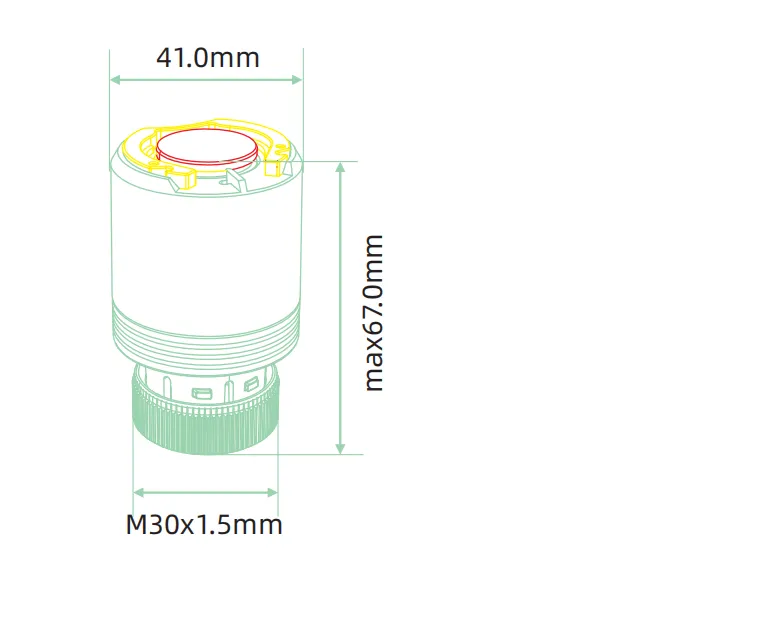

TM20.23 uses an M30 × 1.5 mm valve connection. Always verify the valve or manifold interface and required actuator stroke before selection.
For multi-zone hydronic floor heating, TM20.23 actuators can be integrated with room thermostats and a central wiring center to provide individual zone control.
Explore MENRED H-BOX208 / H-BOX212 Underfloor Heating Wiring Centers for 8-zone and 12-zone control applications.
Send us your manifold or valve interface, supply voltage, required stroke and project application. MENRED can help you evaluate a suitable actuator for your hydronic heating or cooling system.
