Description

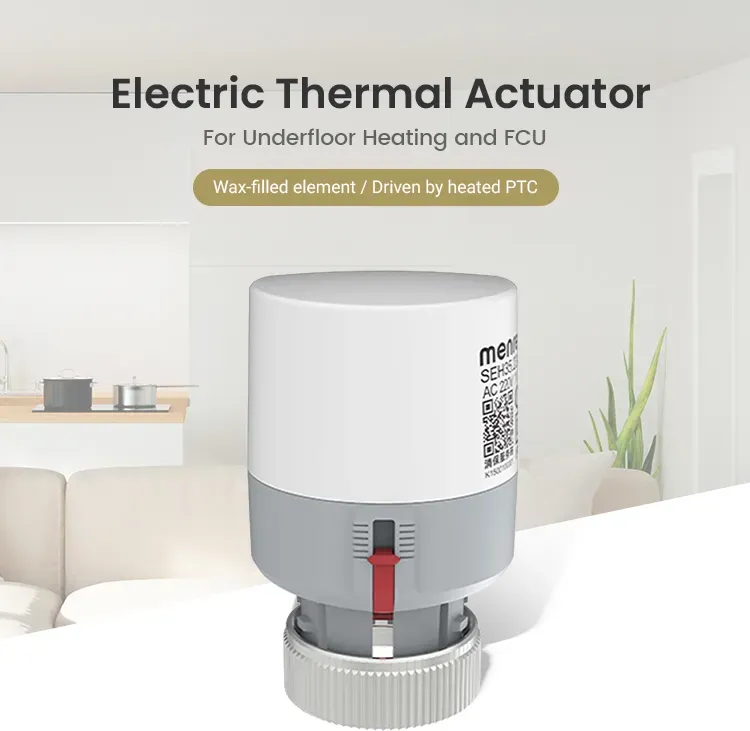

SEH35 thermal actuator is mainly used in hydronic floor heating system. As an important part in the manifolds, its function is to open or close each circuit in the flow manifold. The actuator is connected with room thermostats. When the indoor temperature reaches to the setting temperature, the actuator, driven by the inside wax motor, closes the port of each circuit in the flow manifold and stops the heating water flowing from the heating source to pipes. When the indoor temperature decreases, the actuator opens the port and allow warm water to flow through each circuit.
It’s connection size is universal type M30*1.5, suitable for many different brands of manifolds. There are 3mm and 5mm strokes available, and voltage 230V and 24V for choice, meeting customers various demands.
Features

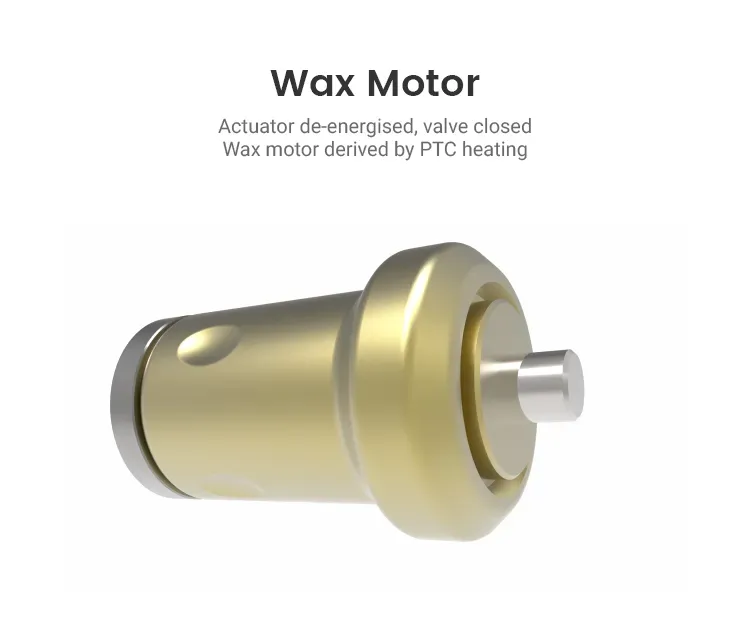

-Wax-filled element, driven by heated PTC

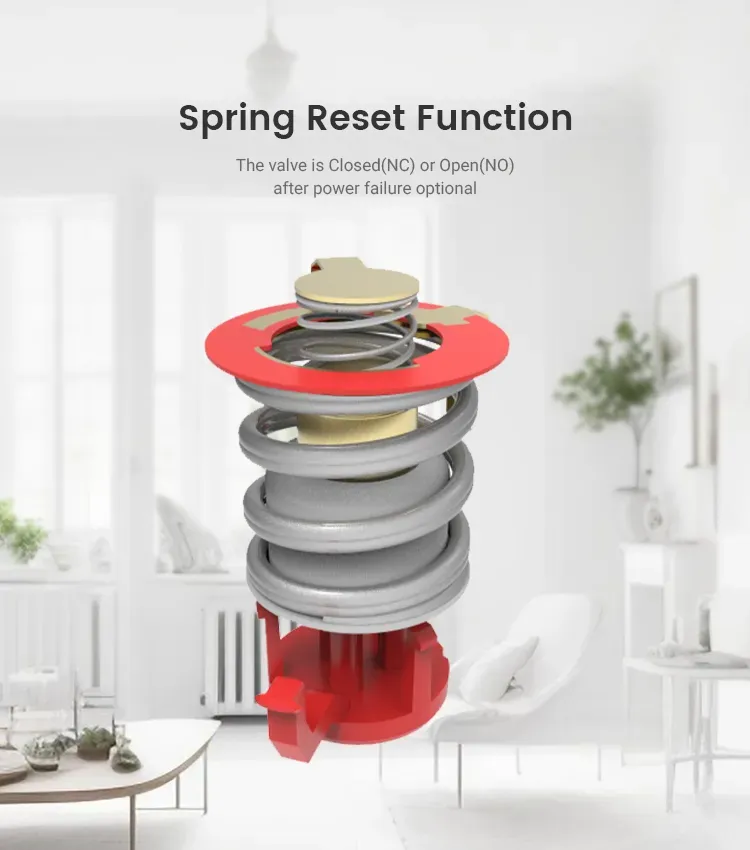

-Spring reset function, valve close(Normally closed type) or open(Normally open type) after power off
-Noiseless operation

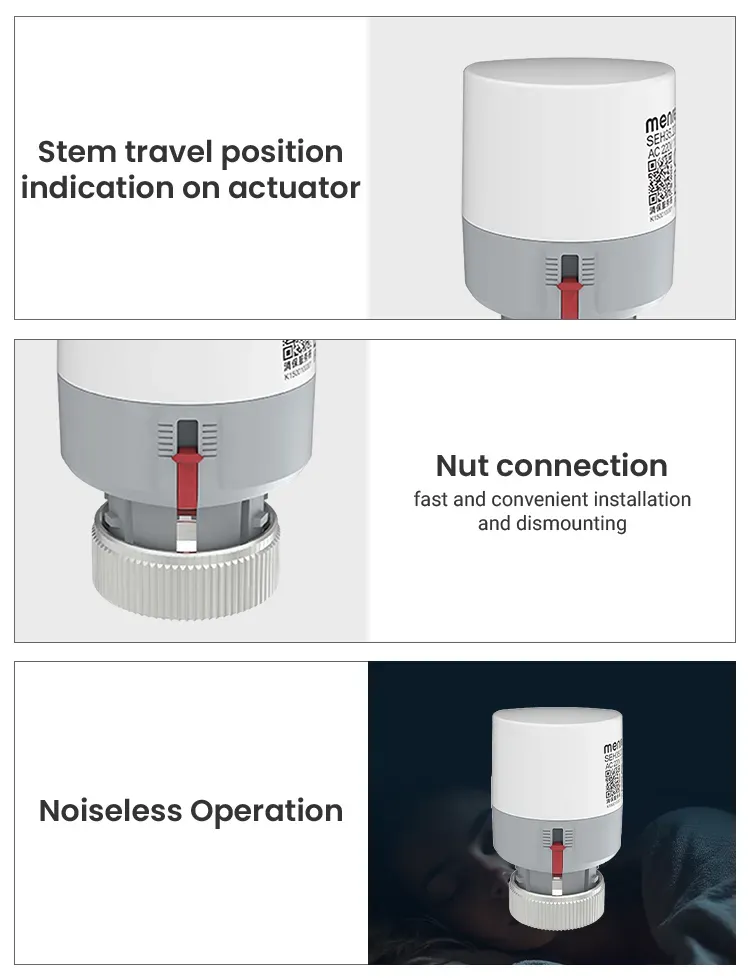

-Stem travel position indication on actuator
-Nut connection; fast and convenient installation and dismounting
Technical data
Voltage: 230V/220V
Power consumption: 2W
Force: 110N
Stroke: 3mm, 5mm
Running time:180s
Valve interface: Cap nut M30×1.5mm
Ambient temperature: 5℃～50℃
Cable Length: 800mm
Housing material: PC GF10
Protective housing: ±45℃ IP43, 45℃...90℃ IP41
Selection table
|
Model |
Voltage(AC/DC) |
Power consumption |
Working state |
Stem Travel |
|
SEH35.23(11-14) |
230V |
3W |
Normally closed |
11mm-14mm |
|
SEH35.23(11-16) |
230V |
3W |
Normally closed |
11mm-16mm |
|
SEH35.24(11-14) |
24V |
3W |
Normally closed |
11mm-14mm |
|
SEH35.23NO(11-14) |
230V |
3W |
Normally open |
11mm-14mm |
|
SEH35.24NO(11-14) |
24V |
3W |
Normally open |
11mm-14mm |
| ttribute | Value |
|---|---|
| Model NO. | SEH35.23N011-14) |
| Heating Type | Water Heating Systems |
| Force | 110N |
| Design Style | Modern, European |
| After-Sale Service | Return and Replacement |
| Protective Housing | 45°C IP43, 45°C...90°C IP41 |
| Power Consumption | 3W |
| Heating System | Electric |
| Cable Length | 800mm |
| Trademark | Menred |
| Production Capacity | 50000 PCS/Month |
| Certification | TUV, ISO9001, ROHS, CE |
| Stroke | 3mm |
| Running Time | 180s |
| Feature | Durable, Flexible |
| Valve Interface | Capnut M30*1.5mm |
| Type | Floor Heating Parts |
| Ambient Temperature | 5°C ~ 50°C |
| Voltage | 230V |
| Housing Material | PC GF10 |
| Origin | Zhejiang, China |
|
Voltage:
|
230V/220V
|
|||
|
Power consumption
|
3W
|
|||
|
Force
|
110N
|
|||
|
Stroke
|
3mm, 5mm
|
|||
|
Running time
|
180s
|
|||
|
Valve interface
|
Cap nut M30×1.5mm
|
|||
|
Ambient temperature
|
550
|
|||
|
Cable Length
|
800mm
|
|||
|
Housing material
|
PC GF10
|
|||
|
Protective housing
|
±45 IP43, 45...90 IP41
|
|||
