Select the manifold according to the heating circuit layout, installation space and required control configuration. Confirm the complete assembly and electrical requirements before ordering.
| Parameter | Specification |
|---|---|
| Material | Brass, HPb59 |
| Nominal pressure | PN10 |
| Medium temperature | 5–95°C |
| Main manifold size | DN25 |
| Outlet spacing | 50 mm |
| Main connections | G1 male thread at one end; G1 female thread at the other |
| Published actuator configuration | Factory-installed SEH20.23 anti-fouling actuator |
| Model | Circuits | A (mm) | B (mm) |
|---|---|---|---|
| CK25.A3 | 3 | 170 | 50 |
| CK25.A4 | 4 | 220 | 100 |
| CK25.A5 | 5 | 270 | 150 |
| CK25.A6 | 6 | 320 | 200 |
| CK25.A7 | 7 | 370 | 250 |
| CK25.A8 | 8 | 420 | 300 |

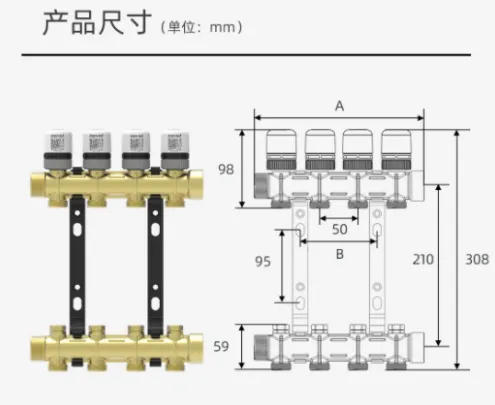

Refer to the dimensional drawing to identify A and B. Confirm the complete assembly dimensions and allow space for fittings, actuators, electrical connections and service access.
Confirm actuator voltage, operating mode and electrical ratings before selecting thermostats or wiring controls. For replacement actuators, check the mounting arrangement and valve geometry with MENRED.
Confirm whether the quotation covers individual headers or a complete supply-and-return assembly. Specify the required pipe connectors, ball valves and terminal fittings.
Compare the CM25 manifold and CS25 manifold when reviewing other control configurations.
Installation, pressure testing, electrical connections and commissioning should be carried out by qualified professionals.
Send MENRED your circuit count, quantity, pipe dimensions and control requirements.
